Shantou Jielian Tech Co.,Ltd >> Original Sick Color Recognition Sensor Kt6w-2n5116

Original Sick Color Recognition Sensor Kt6w-2n5116

Original Sick Color Recognition Sensor Kt6w-2n5116
Price: US $ 129-135/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: Kt6w-2n5116
Checking Mode: Co-Axial
Checking Distance: 12mm±2mm
Output Indication: Red LED
Shell Material: Metal
Power Supply Voltage: DC10-30V

Product Description

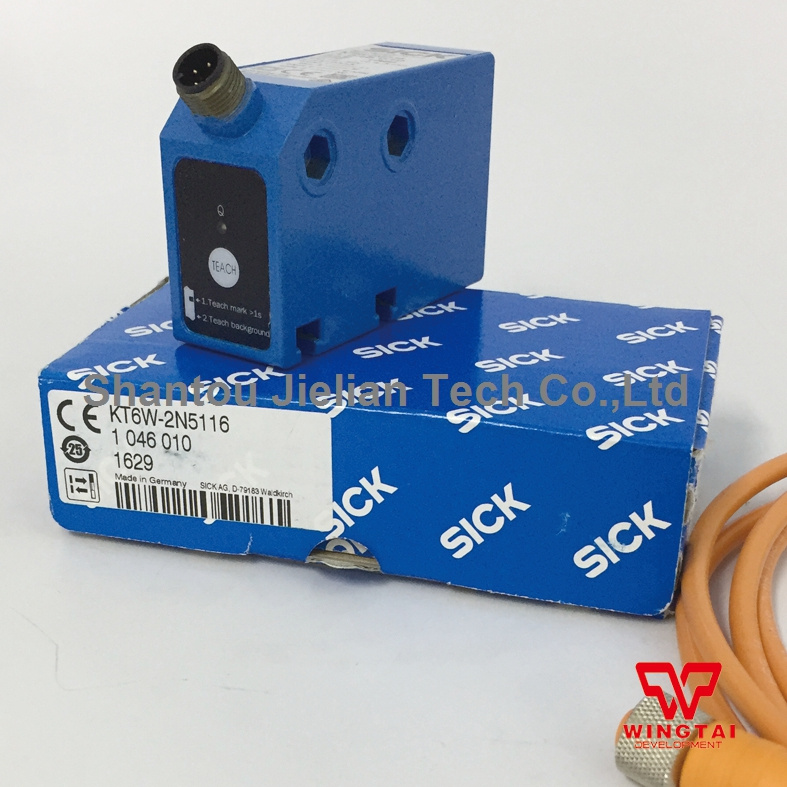

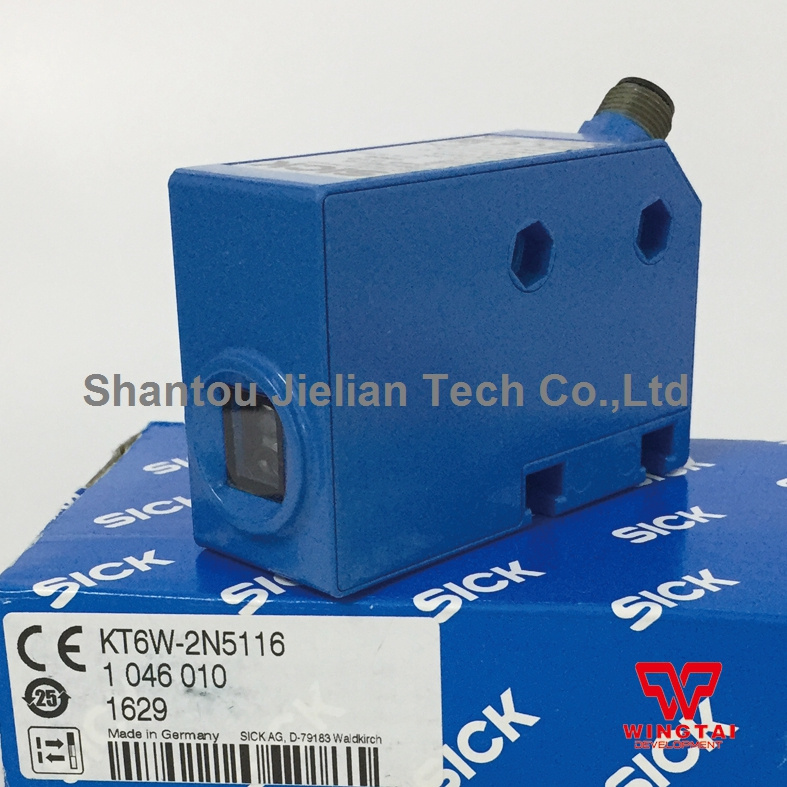

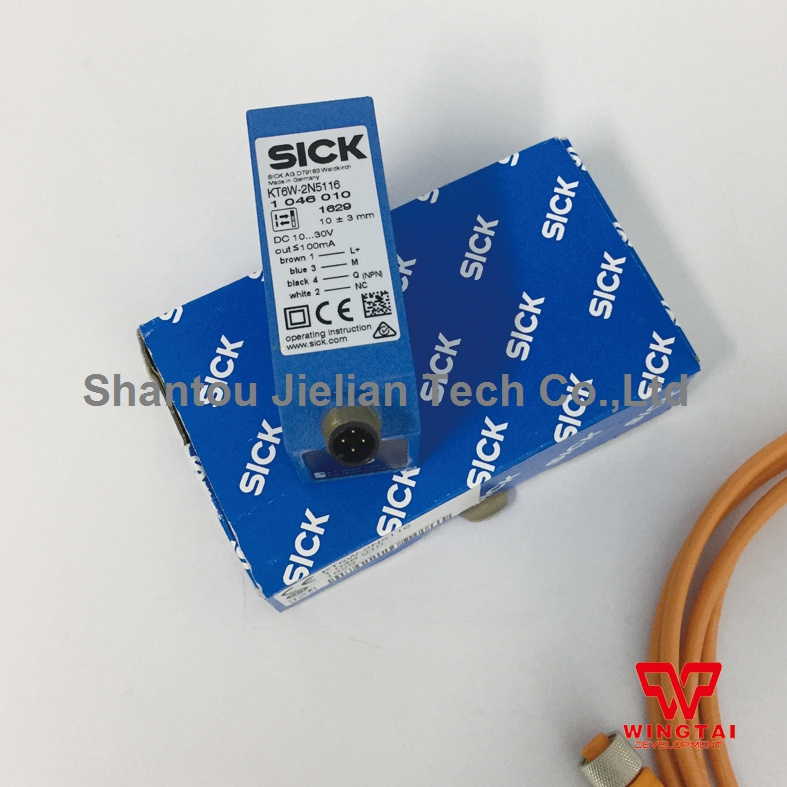

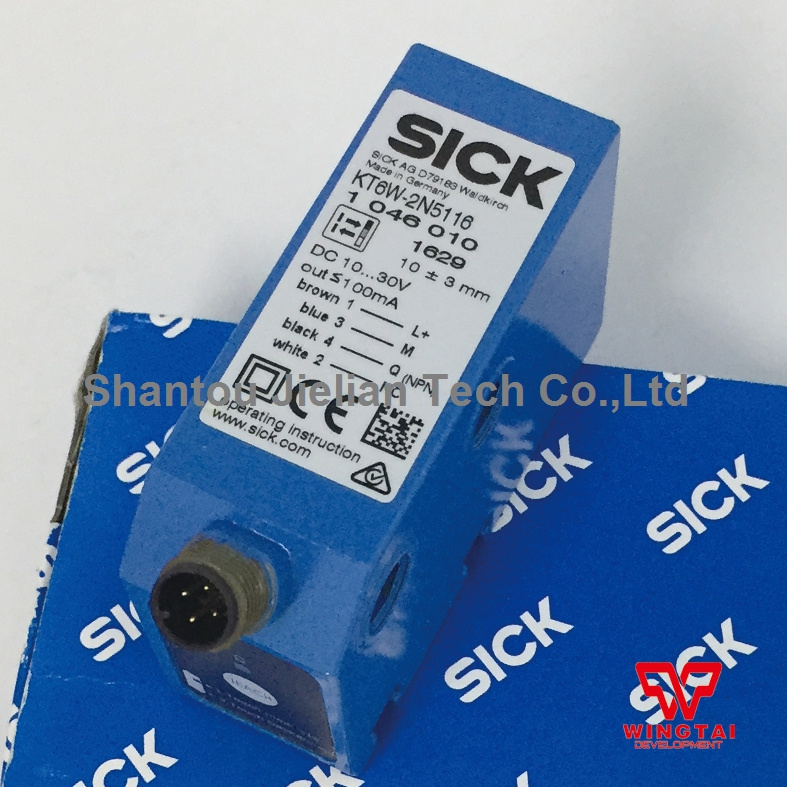

Original Sick Color Recognition Sensor KT6W-2N5116

Technical Parameter

Model : KT6W-2N5116

Product type : Contrast sensors

Detection distance : 10mm

Shell material : Zinc diecast

Light spot size : 1.5 mm x 6.5 mm

Dimensions : 30.4 mm x 53 mm x 80 mm

Light type : LED,RGB

Output mode : NPN

IP Rating : IP 67



Your benefits:



3-color RGB LED for all registration mark applications - one sensor fits all

Tough, metal housing for long service life

Reliable operation, even with high-gloss reflective and jittering materials

Easy setup - detect all marks with one sensor


Technical Parameter:

Dimensions (W x H x D)

30.4 mm x 53 mm x 80 mm

Sensing distance

10 mm

Housing design (light emission)

Rectangular

Sensing distance tolerance

± 3 mm

Light source

LED, RGB 1)

Wave length

640 nm, 525 nm, 470 nm

Light emission

Short device side

Light spot size

1.5 mm x 6.5 mm

Light spot direction

Vertical 2)

Adjustment

Teach-in button

Teach-in mode

Static 2-point teach-in

Supply voltage

10 V DC ... 30 V DC 1)

Ripple

≤ 5 Vpp 2)

Power consumption

< 40 mA 3)

Switching frequency

5 kHz 4)

Response time

100 µs

Output type

NPN

Switching output (voltage)

NPN: HIGH = approx. VS / LOW ≤ 2 V

Output current Imax.

100 mA

Retention time (ET)

25 ms, non-volatile memory

Connection type

Male connector M12, 4-pin

Protection class

II 5)

Circuit protection

UV connections, reverse polarity protected

Output Q short-circuit protected

Interference pulse suppression

Enclosure rating

IP 67

Weight

400 g

Housing material

Zinc diecast

Ambient operating temperature

-10 °C ... +55 °C

Ambient storage temperature

-25 °C ... +75 °C

Shock load

According to IEC 60068
