| Prod Model: |

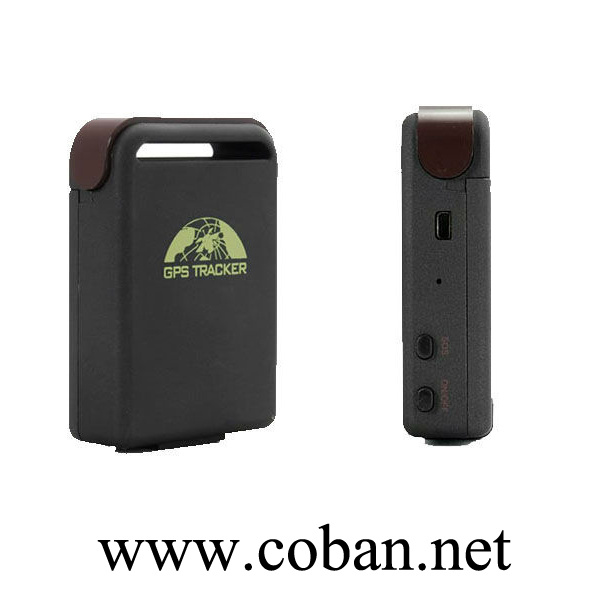

Promotion GPS Tracker TK102B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE |
| Weight: |
50g |
| Size: |
64mm X 46mm X 17mm(1.8"*2.5"*0.65") |
| Battery Standby: |
80hours |
| Car Charger: |
12-24V Input, 5V Output |
| Global Compatibility Quad Band: |
850/900/1800/1900MHz |
| Easy To Use: |
Internal GPS GSM Antenna, USB Configuration |
| Live Tracking: |
by Timing and Distance |
| Auto Sleep Mode: |
Save Automobile Power |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Operating Principle: |
Hand Held |
| Port Number: |
No |
| Model: |
Tk102 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
Model: GPS tracker 102
Applications(Service scope):
*Vehicle rental/Fleet management etc
*Powerful magnet water proof, adsorbing in the hidden place of car.
*Protect child /the old/the disabled/pet etc
*Provide peace-of-mind for businessmen
*Personnel Management
*Criminals Tracking
Main Functions:
1. GPS + Location based service(LBS)
2. Real time tracking via SMS or GPRS (TCP/UDP)
3. Track on demand
4. Live google map with HTTP link by SMS
5. Absolute street address by SMS
6. Track by time interval
7. Five authorized phone number to protect tracker information and assets
8. Voice Surveillance
9. Easy switch to track or monitor mode
10. Low battery alarm
11. SOS button for emergency
12. Geo fence
13. Overspeed Alarm
16. Movement alert
17. With direction and heading value
18. Shock sensor
19. Free PC tracking software
| COBAN TK102B Specifications |
| Network | GPRS/GSM |
| GSM Frequency | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | Input: DC12_24V / Output:DC5V |
| Wall charger | Input: AC110 - 220V / Output:DC5V |
| Backup battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Dimension | 87*54*26mm |
| Weight | 50g |
| PST-PT102B Features & Functions |
| Tracking ways | Tracking by SMS |
| | Track by making a missed call to the tracker |
| | Track by Preset Interval |
| | Track by free PC version GPS tracking software |
| | Track by web based GPS tracking software(extra buy) |
| Remote operation function | Monitor |
| Basic function | Change time zone |
| | Support Location based service (LBS) |
| | GPS drift suppression |
| | Data logging and Data Load |
| | Sleep Mode |
| | Reset Hardware |
| Inquiry function | Absolute street address by SMS |
| | Forward the third parties' message |
| | Charges Inquiry |
| | State Checking |
| | Check IMEI |
| Alarm function | Low battery alarm |
| | SOS alarm |
| | Geo-fence alarm |
| | Movement alarm |
| | Over speed alarm |
| | Shock Sensor alarm |
| TK102B Package List |
| Tracker 102B | x1 |
| Charge Adapter | x1 |
| Battery Charge | x1 |
| Battery | x2 |
| USB Cable | x1 |
| Magnet Back Cover | x1 |
| Waterproof Bag | x1 |
| User Manual | x1 |
| CD | x1 |
| TK102B Optional Accessories |
| Car charger |
| Hard-wire charger |
| Web based GPS tracking software |
| Services |
| 1 years product warranty since the date of shipping, unlimited after-sales service |
| Delivery time: 1-3 days |
| Payment: Bank wire transfer, Western Union |
| Shipping: Express(DHL, UPS, FedEx, TNT etc), Air Cargo, by sea, HK post, China Post, EMS |
24 hours timely tech support via email, skype, MSN, whatsapp, phone etc
|
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
