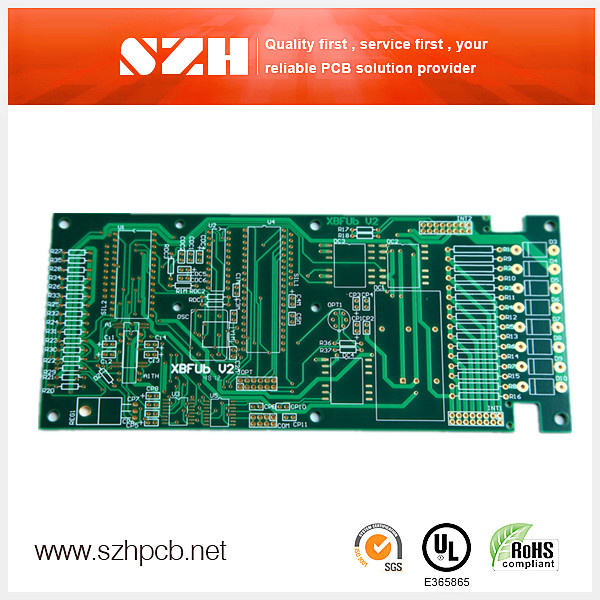

OSP Bare PCB Board Industrial Controller Board Electronics Calculator Board

Prod Model:	SZH0302
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CE:	UL,RoHS,ISO9001
Color:	Customizable
OEM:	Yes
Cti:	175V
Flame Rating:	94V0
Min Holes:	0.2mm
Test:	E-Test
Etching Tolerancetest:	+/-0.5%
Legend:	White
Size:	98X75mm
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Shengyi

Product Description

OSP Bare PCB Board Industrial Controller Board Electronics Calculator Board

One-Stop PCB&PCBA Service Provider

1. PCB, PCBA, PCB Design,PCB Layout,PCB Assembly
2. UL, ROHS,CE
3. ISO9001 certificate
4. Lead free technology
5. SMT Pick And Place PCB Assembly
6. Fast delivery with quality assured


Welcome to Sunthone Technology Circuit Co,.Ltd


One-stop PCB assemblies service, We can offer 1 to 12 Layer PCB fabrication, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.


 1. Who we are


PCB Manufacturer	Flexibility	Quality
Sunthone, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 24 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us.	Sunthone is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service.	Sunthone fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment.



2.Technical capability & support


Layers	1-16 layers	Min Board Thickness(2-layer)	0.2mm
Max Board Size	635 × 1100mm	Min Board Thickness(4-layer)	0.6mm
Min Board Size	20 × 30mm	Min Inner-layer Thickness	0.1mm
Min Trace	0.1mm	Min Annular Ring	0.1mm
Min Space	0.1mm	Min Hole Location Tolerance	±0.075mm
Min Hole Size	0.2mm	Min Hole Size Tolerance	±0.05mm
Board Warp	≤ 1°	Min Outer Dimension Tolerance	±0.1mm
Solder Mask	Green, Yellow, Red, Black, Blue, White
Surface Finish	HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP
Board Material	FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic
Acceptable file	Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD
CAM software	Genesis, CAM350


3.Service for productoion

     Sunthone employs and develops a team of experienced management directors and efficient production workers, with its sustainable development, career planning, advanced training-system and satisfactory welfare for all staff. On the other hand, Sunthone strives to improve quality and lead time through management and technology innovation.


Standard lead time
2  layers	4WD
4  layers	5WD
6  layers	6WD
8  layers	7WD
10  layers	8WD
12  layers	8WD
14  layers	9WD
More than 16 layers	Up to difficulty



Competitive Price
Sunthone works with customers to reduce their purchase cost, by our rich experience in management and manufacture, maximized utilization of materials and facilities, and well-trained operational workers.Sunthone's price can be as low as 20% only of some other competitors on some cases.
Management Innovation	Raw Material Utilization Rate	Facilities Utilization Rate	Labor Efficiency
Sunthone	100%	100%	95%
Competitors	50%	30%	50%
Values	Maximized raw material utilization reduces the material cost greatly, and enables Sunthone to use better raw materials.	Maximized facilities utilization improves Sunthone's production efficiency and shorten the lead time.	High labor efficiency reduces labor cost, and enables Sunthone to provide better training and welfare for the workers.
Customer Benefits	Better quality with better raw materials.	Saves valuable time and money for customer.	Well trained and efficient worker improves quality and lead time.

4. PCB + Assembly

   In order to meet customers' requirements, Sunthone develops from a PCB manufacturer to a one-stop PCBA service provider, including PCB assembly, components sourcing, stencils, cable assembly and final product assembly and testing.


Available Services                PCB Manufacturing               PCB Assembly             Components Sourcing               SMT Stencils             Cable Assembly              PCBA Testing           Final Product Assembly

Assembly Technologies                         SMT                         THT                     Reflow Soldering                     Wave Soldering                     Hand Soldering                     Repair/Rework              Mixed Assembly Technologies

5.Others service can be provided

Quick response, Sunthone will reply Customer's any enquiry within 2 hours;
More than 180 type of PCB can be worked out Every day;
24 hours technique Support;
24 hours Engineering Gerber files treatment.
24 hours English Engineering Questions Confirmation by E-mail.
Experienced Impedance Designer.


Needed:

1. PCB gerber file.
2. BOM LIST FOR PCB ASSEMBLY.
3. Send us your sample PCB board or PCBA.


Shipping Method and Payment terms:

1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.


Delivery Time for  PCB board:

1)  PCB production time:  sample:  3-4 days /  mass production: within 7 days
2)  Component purchase: 2  days if all components is available in our domestic market.
3)  PCB Assembly:  samples: whthin 2 days /  mass production: within 5 days



We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us !
