| Prod Model: |
JLD5130A-O1Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Emission Wavelength: |
510nm~530nm |
| Can Type: |
To38-3.8mm |
| Light Color: |
Green |
| Life Time: |
10000 Hours |
| Operating Current: |
120mA |
| Reverse Voltage: |
2V |
| Operating Voltage: |
6.7V |
| Operating Case Temperature: |
0~+60 Degree |
| Storage Temperature: |
-40~+85 Degree |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Laser Diode |
| Package: |
Through Hole |
| Application: |
Laser Shows, Biomedical Applications, etc |
| Model: |
Pl 515 |
| Brand: |
Osram |
Product Description

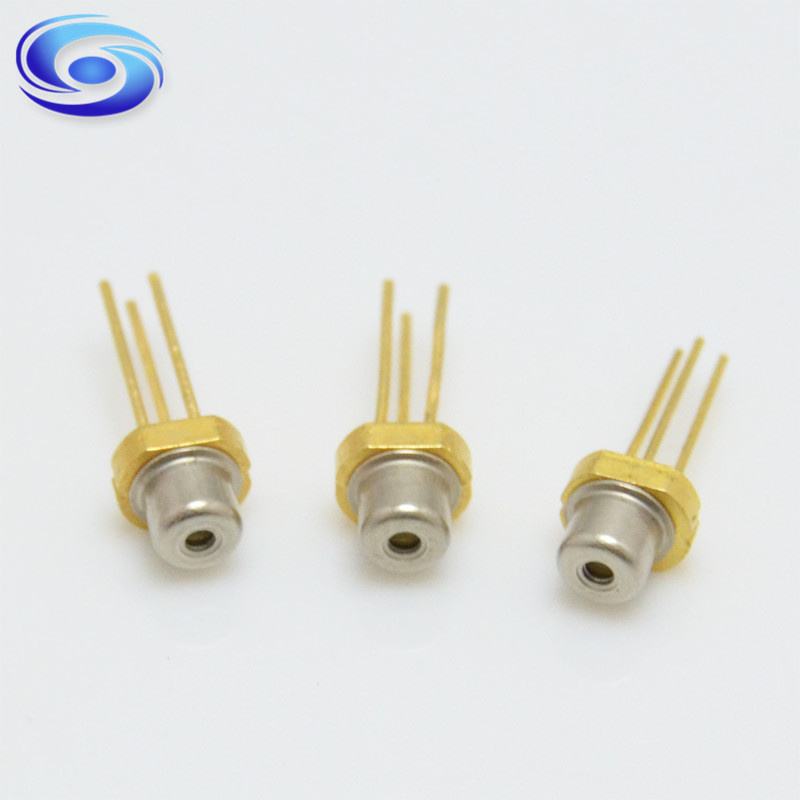

Features:
1. Single transverse mode semiconductor 515nm 30mw
2. Osram green laser diode PL 515
3. TO38-3.8mm package type
A. Product Description
Absolute Maximum Ratings (Tc=25ºC)
| Parameter | Symbol | Values | Unit |
| Min. | Max. |
| Operating Current | If | - | 180 | mA |
| Reverse Voltage | Vr | - | 2 | V |
| Operating Case Temperature | Tc | 0 | +60 | ºC |
| Storage Temperature | Tstg | -40 | +85 | ºC |
| Soldering Temperature max. 10 sec. | Tsolder | - | 260 | ºC |
| Junction temperature | T | - | 150 | ºC |
Electrical and Optical Characteristics (Tc=25ºC)
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Optical Output Power | Po | - | 30 | - | mw |
| Emission Wavelength | λp | 510 | 515 | 530 | nm |
| Threshold Current | Ith | - | 50 | 75 | mA |
| Operating Current | If | - | 120 | 140 | mA |
| Operating Voltage | Vop | - | 6.7 | 8.0 | V |
| Beam Divergence (FWHM) | Θ//×Θ⊥ | 4×16 | 7×22 | 11×25 | deg |
| Polarization | Pgr | 20:1 | - | - | |
| Modulation Frequency | f | - | >100 | - | MHz |
| Thermal resistance (junction to case) | Rth | - | 38 | - | K/W |
B. Packaging & Shipping
1. Plastic box, standard and normal package
2. Delivered by DHL, FedEx, Post Service, Aramex, GLE, etc, or any other special way you like
3. Delivery time will be usually 3~5 working days
