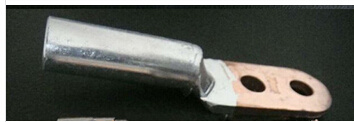

Ot Dtl Communication Terminal Connector Copper Aluminium

Name: Ot Dtl Communication Terminal Connector Copper Aluminium
Brand: all-electronics-online.com
SKU: 752304635
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	all size
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Terminals:	Copper Terminal
Bi-Metal Lugs:	Terminal Connector
Application:	Transmission of Electrical Signals
Type:	Hook Terminals
Material:	Copper

Product Description

Specifications
1)type:DTL-1-16,DTL-1-50,DTL-1-70
2)Best price
3)Delivery timely
4)ISO9001-2000
TERMINAL:
Surface:Silvery   Golden
Material:Copper and aluminum is main material
Species:Cu-Al connecting terminals. Aluminium connecting terminals(oil-plugging). European-style.
              American-style . DTD series copper wiring lugs
Copper-Aluminium connecting terminals

Catalog NO.	Dimensions(mm)
Catalog NO.	Ø	D	d	L	L1	B
DTL-1-16	8.5	10	5.5	70	32	16
DTL-1-25	8.5	12	7	75	34	18
DTL-1-35	10.5	14	8.5	85	40	20.5
DTL-1-50	10.5	16	9.5	90	42	23
DTL-1-70	12.5	18	11.5	102	47	26
DTL-1-95	12.5	21	13.5	112	50	28
DTL-1-120	14.5	23	15	120	53	30
DTL-1-150	14.5	25	16.5	126	55	34
DTL-1-185	17	27	18.5	133	58	37
DTL-1-240	17	30	21	140	60	40
DTL-1-300	21	34	23.5	165	65	50
DTL-1-400	21	38	26.5	170	70	50
DTL-1-500	21	47	29	225	75	60
DTL-1-630	-	54	35	245	80	80
DTL-1-800	-	60	38	270	90	100

OT copper passing theough terinal

Catalog NO.	Dimensions(mm)
Catalog NO.	Ø	H	L	R	R1	A
OT-10A	5.2	6	14.5	4.5	2	0.8
OT-20A	6.2	7	17	5.5	2.5	1
OT-30A	6.2	8.2	19	5.8	3.2	1.2
OT-40A	6.2	9	19.5	6.2	3.5	1.2
OT-50A	6.2	9	23	6.5	3.5	1.2
OT-60A	8.2	10	2	7	4	1.4
OT-80A	8.2	11	25	8	4.5	1.5
OT-100A	8.2	12	29	8.5	5	1.5
OT-150A	10.2	12	31	9	5.5	1.6
OT-200A	10.2	14	33	10	6	1.7
OT-250A	10.2	15.5	36	10.5	6.5	2
OT-300A	12.2	16	40	11.5	7	2
OT-400A	14.2	18	43	13	8	2.2
OT-500A	14.2	20	46	14.5	8.5	2.4
OT-600A	16.2	22	50.5	16	10.5	2.8
OT-800A	18.2	26	61	17.5	12.5	3.2
OT-1000A	18.2	33	66	20.5	15.5	3.8

European-style branch box terminal

Catalog NO.	Dimensions(mm)
Catalog NO.	D	Φ
DTO-35	12	9
DTO-50	14	10
DTO-70	16	12
DTO-95	18	13
DTO-120	21	15
DTO-150	23	16
DTO-185	25	18
DTO-240	28	20
DTO-300	30	22
DTO-400	35	25

DTD series copper wiring lugs (single holes)

Catalog NO.	Dimensions(mm)
Catalog NO.	D	d	d1	L	L1
DTD-1-16	12	7	9	82	37
DTD-1-17	14	9	11	85	40
DTD-1-18	16	10	12	85	40

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
