Ot Type Copper Crimp Terminal Lugs for Cable Connecting

Name: Ot Type Copper Crimp Terminal Lugs for Cable Connecting
Brand: all-electronics-online.com
SKU: 818330975
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	US $ 0.06-9.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KW-OT
Product Name:	Flat Types Ring Lug
Cable Diameter:	4-31mm
Hole Diameter:	10.4-37mm
Certificate:	ISO9001,Ce,RoHS
OEM/ODM:	Offered
Surface Treatment:	Coated Tin Plating
Craft:	Friction Welding
Conwell:	Factory
Standard Or Nonstandard:	Standard
Sample:	Offer Free Sample
Material:	Copper
Type:	Flat Types Ring Lug
Application:	Wire Connecting

Product Description

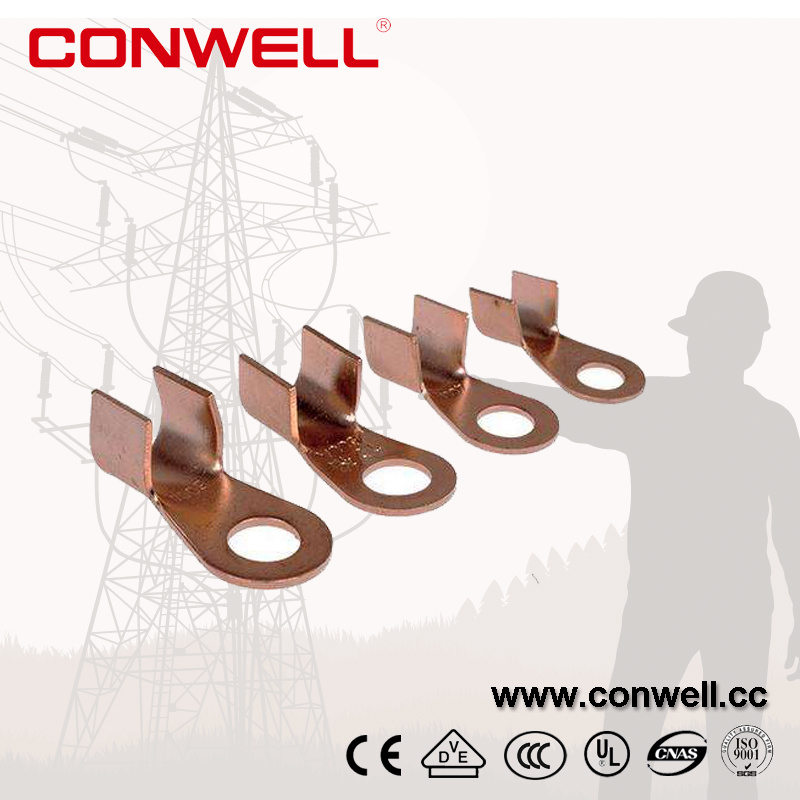

OT Type Copper Crimp terminal Lugs for cable connecting

Basic Data

Code

Name

ring lug

Certificate

CE,ROHS,ISO9001

Material

Pure copper

Surface

Tin plating

Shape

eyelet lug

Application

wire connection

Attribute

High conductivity; heavy current

Product Parameters

Model	Dimensions(mm)
Model	Φ	H	L	R	R1
OT-10A	5.2	6	14.5	4.5	2
OT-20A	6.2	7	17	5.5	2.5
OT-30A	6.2	8	19	5.8	3.2
OT-40A	6.2	8.5	19.5	6	3.5
OT-50A	6.2	9	21.5	6.5	3.5
OT-60A	8.4	10	23	7	4
OT-80A	8.4	10	25	7.5	4.5
OT-100A	8.4	12	29	8.5	5.5
OT-150A	10.4	12	31	9	6
OT-200A	10.4	14	33	10	6.5
OT-250A	12.4	15	36	10.5	7
OT-300A	12.4	16	40	11.5	8
OT-400A	14.5	18	43	13	9
OT-500A	14.5	20	46	14.5	10
OT-600A	16.5	22	50.5	16	10.5
OT-800A	18.5	28	57	18	12.5
OT-1000A	18.5	33	66	20.5	15.5

FAQ

Q 1.How about your experience?

A.We are only produce cable accessories for 14 years with all test equipments available in my lab and nation production certificate.

Q 2. What's your advandge ?

A. We are the 1st long history IPC export factory in China,and have 18 months warranted.

Q 3. What's the payment term?

A. We accept TT, 30% deposit and 70% balance against copy of BL, Western Union, L/C is ok!

Q 4. How's the delivery time ?

A. Usually it will take about two weeks for the order of 100,000pcs for production

Q 5. Tell me the standard of package?

A. For inner box and master carton are made as per international standards,and we can make special design for you if need.

Also if necessary, will be packed in pallet to avoid any damage.

Q 6. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 7. Would you accept to use our logo ?

A. If you have good quantity,it absolute no problem to do OEM.

Q 8. How about the transport?

A. If the number of goods is small we usually use TNT,DHL,FEDEX,EMS and some express you offered. If the number of the goods is big usually we use the FWD you offered or we provided. Either by sea or by air is OK.

Zhejiang Keyi Electric Group Co., Ltd., founded in 2004, is located in chengdong industry zone Yueqing, Zhejiang province, China. It is a hi-tech enterprise specialized in designing and producing insulation piercing connector, anchor clamp, suspension clamp, waterproof box and other connecting accessories according to NFC, IEC, EN, UL standards. Besides, it has achieved ISO9001 Quality Management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, CE, RoHS and other certificates, as well as many invention and utility model patents in China.

We are Electric Power Association member and government authorized quality supplier, only focus on ABC accessories scope for 13 years. Our concentration makes us professional and capable enough for all ABC accessories production and invention.

About Testing

Quality management system: Test strictly done by ISO, EN, NFC, UL and other relative standards. It has a lab (city-level technology research and development center) with full testing facilities for physical, chemical, electrical tests.

About Technology:

We have R&D team, technology team, quality team, mould development&production team.

Our products sell to all over the world. The main market is Europe. We have patient sales, good technical support, strict quality control, deep in ABC cable fittings. You will find business is an enjoyment. We will always be here for you!
