OTDR Launch Cable Box with 1km

Name: OTDR Launch Cable Box with 1km
Brand: all-electronics-online.com
SKU: 725248772
Availability: InStock
Rating: 4.8 (108 reviews)

Price:	US $ 200/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1000
Application:	Communication
Type:	Single-mode Fiber
Certification:	CE
Connection Structure:	All

Product Description

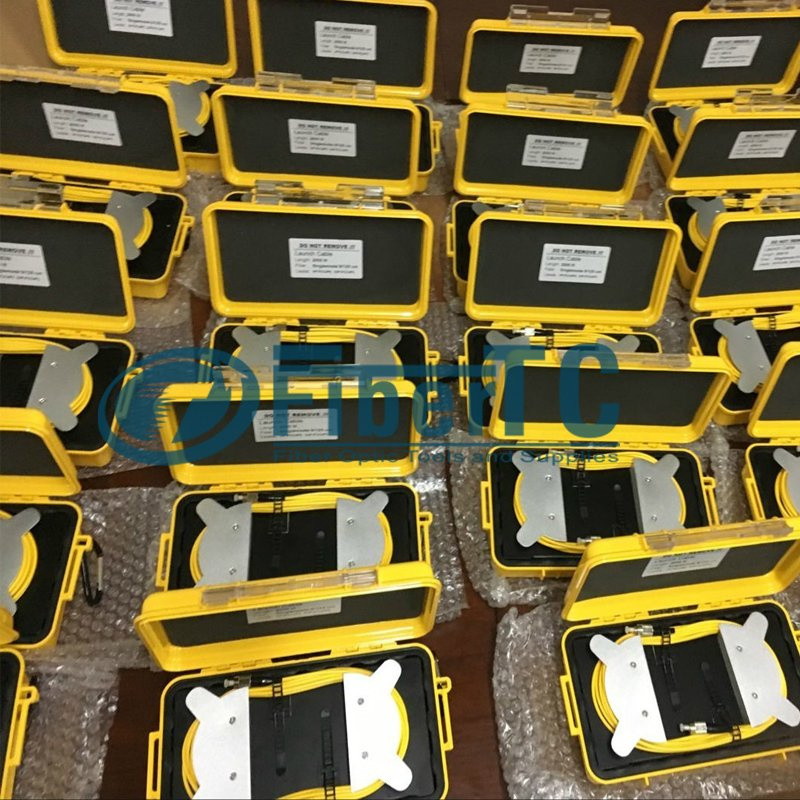

OTDR Launch Cable Box

OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.

Complied with or exceeds Standard

ITU-T G652.D, G656.A
ITU-T G651.1 OM1 OM2 OM3 OM4
IEC60793-2-10 type A1a.1/A1b OM1/OM2, type A1a.2 OM3, type A1a.3 OM4
Telcordia (formerly Bellcore) GR-326-CORE
RoHS Compliant Directive 2011/65/EU

Applications

Use as OTDR launch/receive cable.
Test link loss with an OTDR.
Measure insertion loss and reflectance of near/far end connector.
Pulse suppressor for the first reflection at the beginning of a fiber.

Features

Standard boxes along with custom configurations for OTDR applications.
Compact and rugged packaging.
Portable for field use.
Prevents fiber damage and ensures accurate results.
Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
Compound latch for positive seal and easy opening with locking feature.
Water and dust prove allowing the unit to be taken into almost any environment.
Case can house up to 2,000 meters of fiber.
Auto Purge Valve for changes in altitude and temperature.

Specifications

Mechanical & Environmental Characteristics
Dimension	23.8CMx 14.1CM x 6.7CM
Material	SR Polypropylene
Color	Yellow
Weight	0.75kg without fiber
Packaging	Rugged, hard-shell transit case
Storage Temperature	-40O to +85O C
Operating Temperature	-40O to +85O C
Humidity	0 to 95%, non-condensing

Fiber Patch Co

Fiber & Connector Characteristics
Fiber Types	G652D, G657A, OM1, OM2, OM3, OM4
Fiber Length (m)	100 up to 2000 (max)
Lead Length	2 Meters, 3mm buffer
Typical Loss	<0.5dB @ 1310 for 1000 meters
Connector Type	SC/LC/FC/ST
Polish	PC, UPC, APC
Return Loss*	UPC>=50dB, APC>=60dB, PC>=35dB
Repeatability (dB)	<=0.2 (1000 times)
Exchangeability (dB)	<=0.2

Ordering information:

OTDR-A-B-C-D
A for Input connector;	B for Output connector;
C for Fiber Mode;	D for Length;
For Example: OTDR-SC-FCA-SM-1KM; 1KM SM, SC on I/P lead, FC/APC on O/P lead
