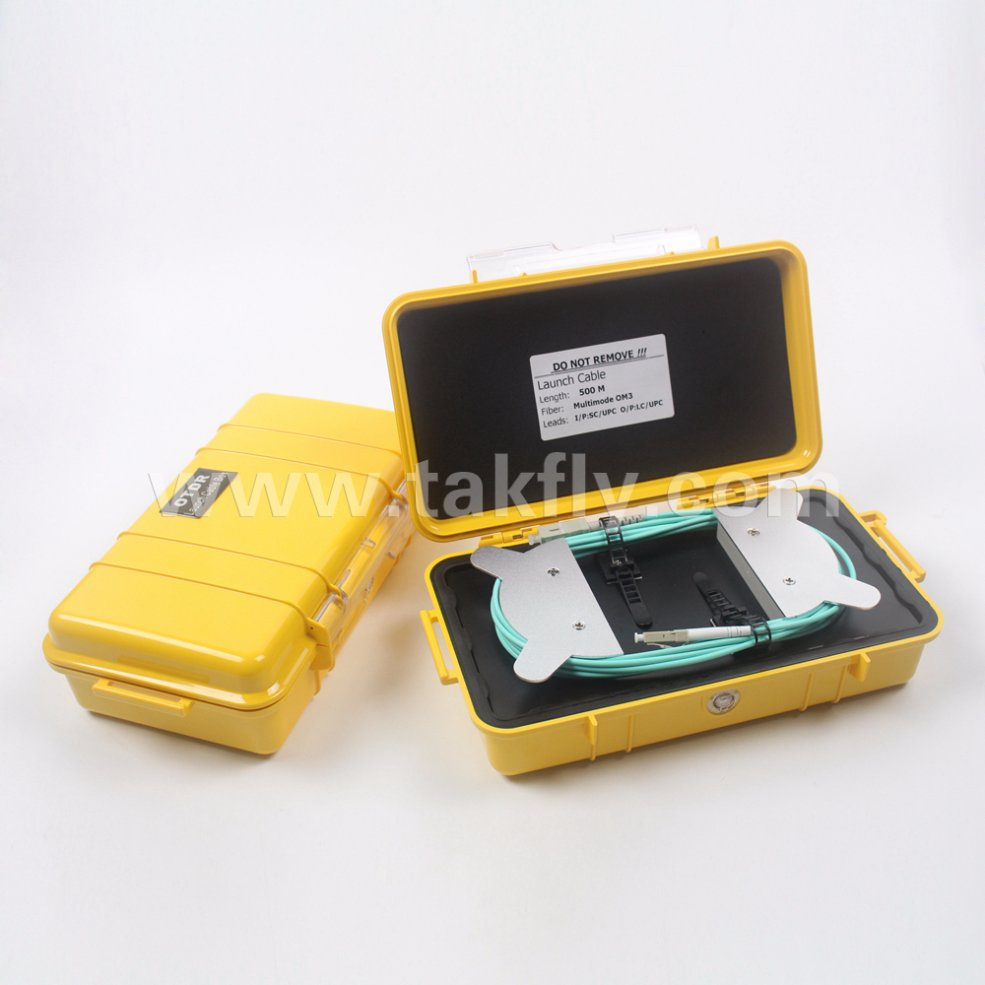

OTDR Launch Fiber /OTDR Launch Test Cable Box
| Price: |
US $ 101pcs |
| Min Order: |
1pcs |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
OTDR |
| Dimension: |
23.8cmx14.1cm X6.7cm |
| Material: |
Sr Polypropylene |
| Color: |
Yellow |
| Weight: |
0.75kg |
| Packaging: |
0.75kg |
| Storage Temperature: |
-40 to +85 C |
| Fiber Types: |
G652D, G657A, Om1, Om2, Om3, Om4 |
| Fiber Length (M): |
100 up to 2000 (Max) |
| Transmission Medium: |
Multimode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

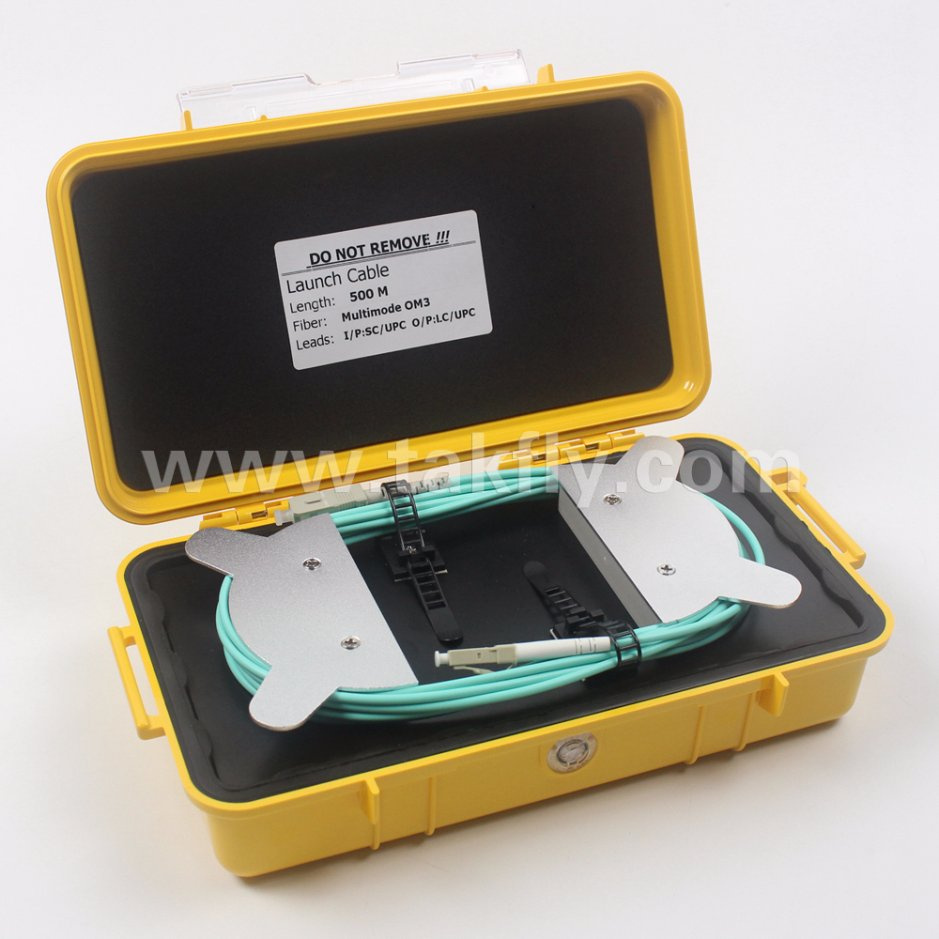

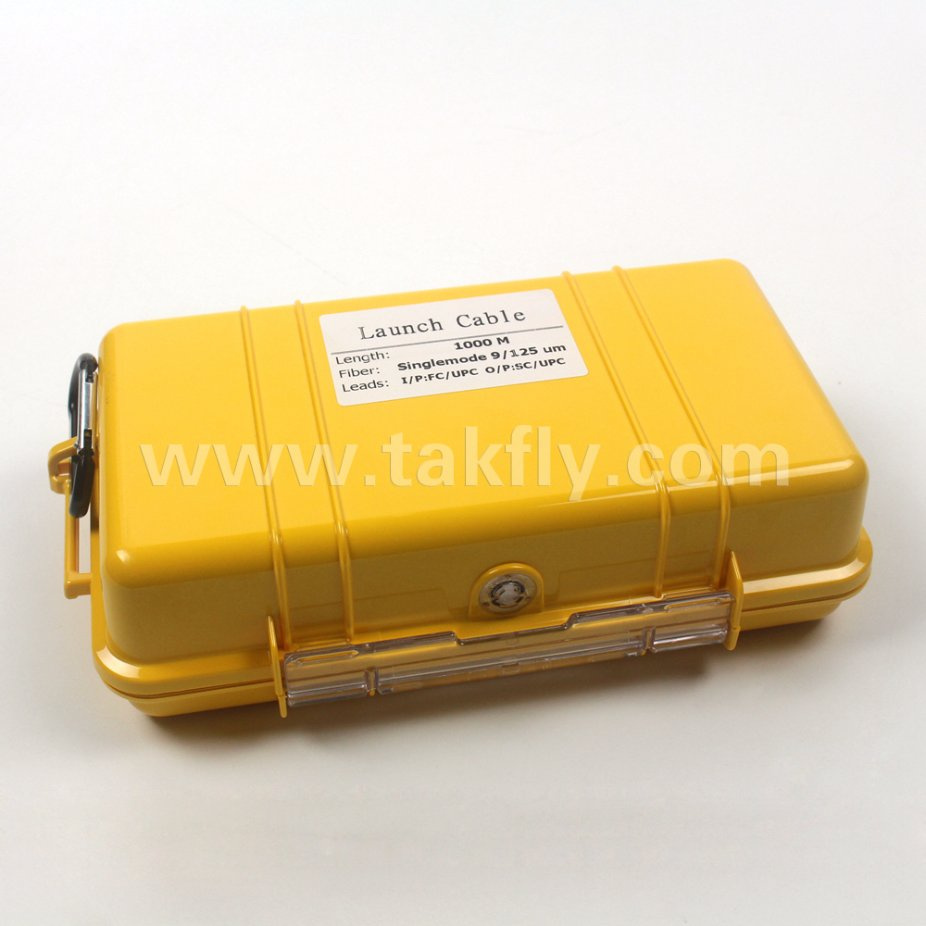

OTDR launch fiber /OTDR Launch Test Cable BoxOTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is
used withOptical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse onmeasurement
uncertainty.Available in different configurations and fiber lengthsComplied with or exceeds Standard ITU-T G652.D, G656.AITU-T G651.1 OM1 OM2 OM3 OM4IEC60793-2-10 type A1a.1/A1b OM1/OM2,
type A1a.2 OM3, type A1a.3 OM4
Telcordia (formerly Bellcore) GR-326-CORERoHS Compliant Directive 2011/65/EU



ApplicationsUse as OTDR launch/receive cable.Test link loss with an OTDR.Measure insertion loss and reflectance of near/far
end connector. Pulse suppressor for the first reflection at the beginning of a fiber.Features Standard boxes along with custom configurations for OTDR applications.Compact and rugged packaging.Portable for
field use.Prevents fiber damage and ensures accurate results.Pulse suppressor, Launch Box, Delay Line, Installation/
Testing, Training, Calibration.Compound latch for positive seal and easy opening with locking feature.Water and dust
prove allowing the unit to be taken into almost any environment.Case can house up to 2,000 meters of fiber.Auto
Purge Valve for changes in altitude and temperature.Specifications | Mechanical & Environmental Characteristics |
| Dimension | 23.8CMx 14.1CM x 6.7CM |
| Material | SR Polypropylene |
| Color | Yellow |
| Weight | 0.75kg |

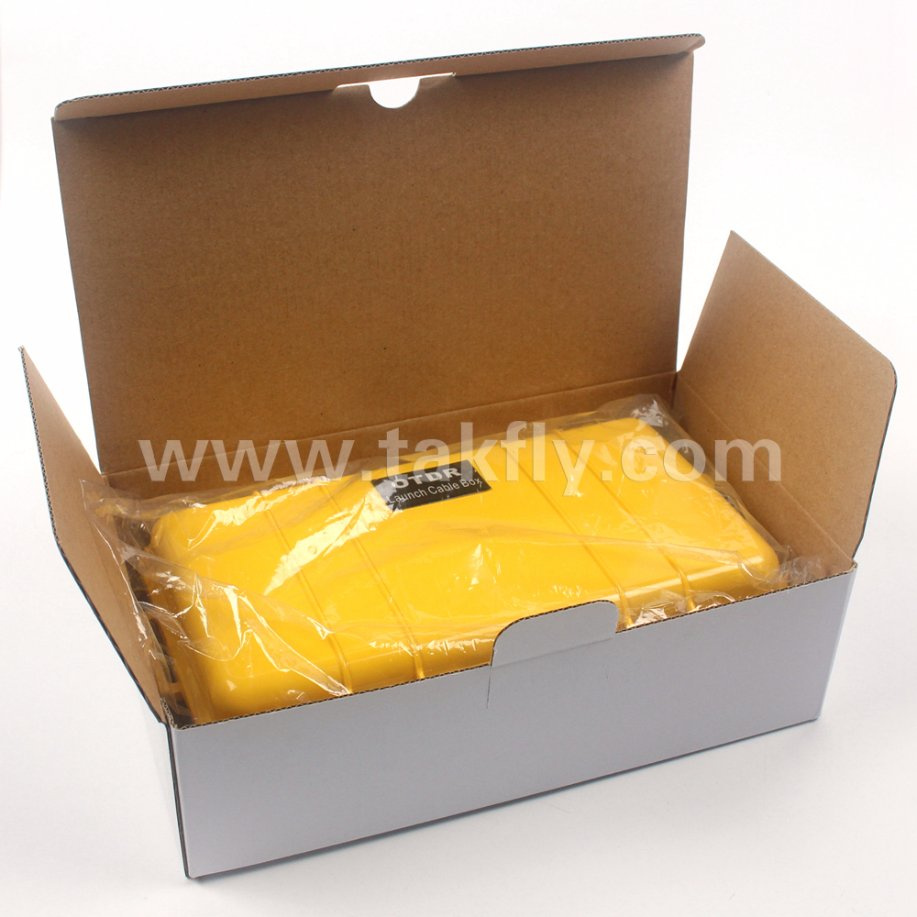

| Packaging | Rugged, hard-shell transit case |
| Storage Temperature | -40 to +85 C |
| Fiber & Connector Characteristics |
| Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 |
| Fiber Length (m) | 100 up to 2000 (max) |
| Lead Length | 2 Meters, 3mm buffer |
| Typical Loss | <0.5dB @ 1310 for 1000 meters |
| Connector Type | SC/LC/FC/ST |
| Polish | PC, UPC, APC |
| Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) | <=0.2 (1000 times) |
| Exchangeability (dB) | <=0.2 |
Ordering information: | OTDR-A-B-C-D |
| A for Input connector; | B for Output connector; |
| C for Fiber Mode; | D for Length; |
| For Example: OTDR-SC-FCA-SM-1KM; 1KM SM, SC on I/P lead, FC/APC on O/P lead |
