Outdoor 10 Core Om3 Multi-Mode Light Armored Fiber Optic Cable

Name: Outdoor 10 Core Om3 Multi-Mode Light Armored Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 694458652
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	US $ 0.14-0.2/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW-10A1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	8 mm
Loose Tube:	PBT
Strength Member:	Steel Wire
Jacket:	PE
Application:	Sensor
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Sheath Material:	PE

Product Description

Description

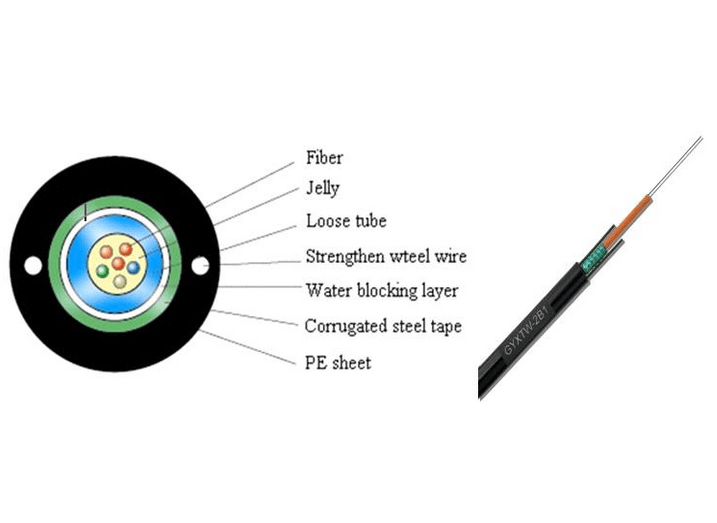

The fibers, 250um, are positioned in a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and water-resistant. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene(PE)sheath.

Features
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. PSP enhancing moisture-proof
6. Two parallel steel wires ensure tensile strength
7. Small diameter, light weight and friendly installation
8. Long delivery length

Application
Rural communication local trunk line CATV & computer networks system
Cable Parameters

Options
Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b, OM3 or OM4 multi-mode fiber, or other types of fiber.
Fiber count: The fiber count is usually 1-6, or other contracted fiber count;
Jacket Material: Environmental thermos plastic PE(TPU), or other contracted material;
Jacket Color: Black, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

Cable Type (Increased by 2 fibers)	Fiber Count	Cable Diameter(mm)	Cable Weight (kg/km)	Tensile Strenth Long/Short Term(N)	Crush Resistance Long/Short Term(N/mm)	Bend Radius Static/Dynamic(mm)
GYXTW-2-12Xn	2-6	9.8	100	600/1500	300/1000	10D/20D
GYXTW-2-12Xn	2-12	10.6	124	1000/3000	1000/1000	10D/20D
GYXTW-14-24Xn	14-24	12	147	1000/3000	1000/1000	10D/20D
GYXTW-26-36Xn	26-36	12	150	1000/3000	1000/1000	10D/20D
GYXTW-38-48Xn	38-48	15	207	1000/3000	1000/1000	10D/20D

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
