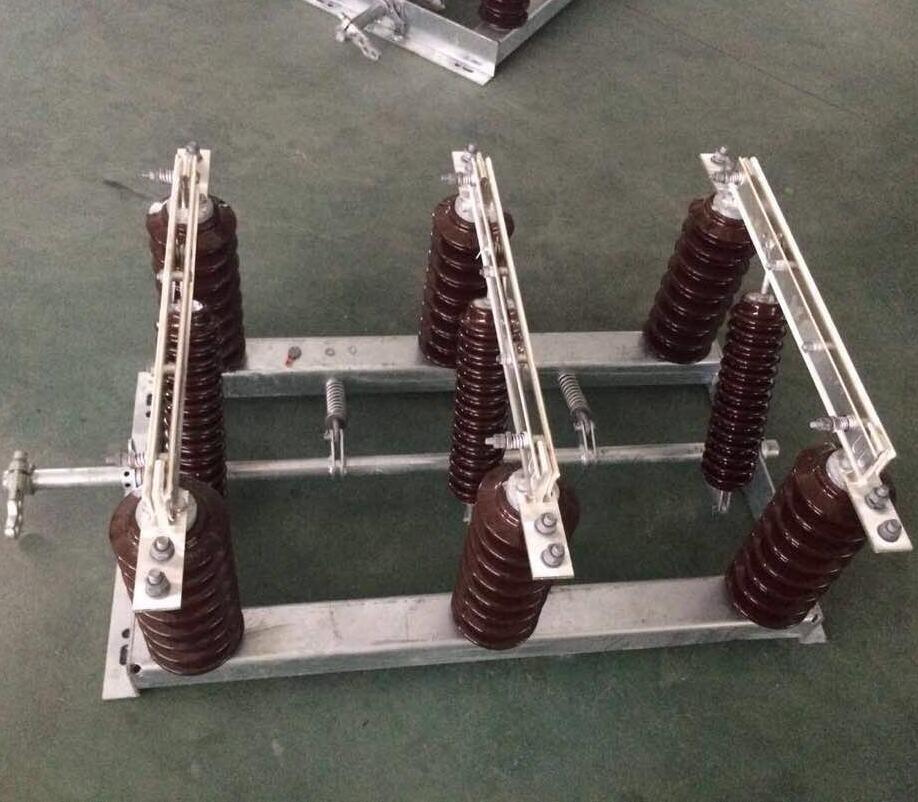

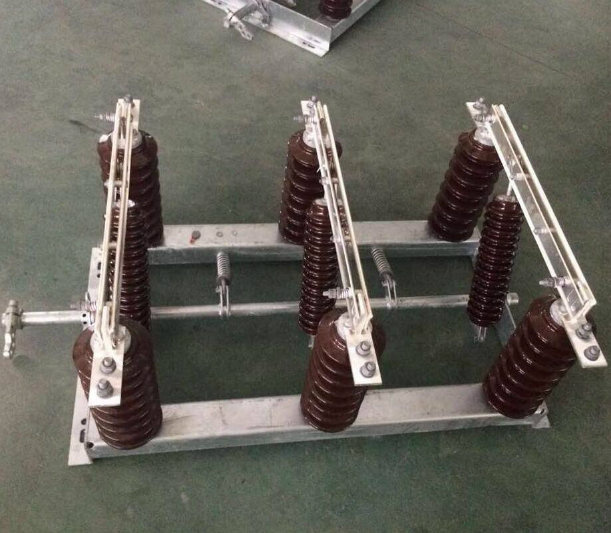

Outdoor 33kv 630AMP Disconnect Switch

Name: Outdoor 33kv 630AMP Disconnect Switch
Brand: all-electronics-online.com
SKU: 830751345
Availability: InStock
Rating: 4.3 (108 reviews)

Price:	US $ 625/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DS-35
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Electric
Grounding:	Single Ground
Series:	Single-Stage
Run:	Vertical Rotation
Switching Mode:	Double-Throw Type
Certification:	GS
Brand:	Kampa

Product Description

General introduction of high voltage isolating switch/isolation switch/disconnect switch

GW1 series outdoor AC isolation switch for AC 50Hz outdoor high voltage electrical equipment, rated voltage 10kV, 12kV, 20kV, for high voltage transmission line under no load condition and opening, electrical isolation and high-pressure line of electrical equipment and charged the maintenance of high voltage bus, circuit breakers and the like, can also small capacitor or inductor current for open.

GW5-40.5/72.5/126/145 Outdoor HV Disconnect Switch: Disconnect switch is make up of three single phase, V type for each phase, symmetrical angle is 50 , disconnect switch is made of pedestal, post insulator and electric part.

Main technical parameters of GW1 GW4 GW5 GW9 high voltage isolating switch/disconnect switch/isolation switch

GW1 high voltage isolating switch

Item GW1 Disconnect Switch, isolating switch			Unit	Technical Parameters
Rated Voltage			KV	10	24		33
Max operating Voltage			KV	12	27		35
Rated insulation Level	1 Min Power Frequency Withstand Voltage	To earth	KV	40	50		80
		Across Open DS		47	60		80
	Rated Lighting Impulse Withstand Voltage	To earth		105	125		180
		Across Open DS		120	145		210
Rated Frequency			HZ	50
Rated Current			A	200	400	630	1250
4S Short time withstand current			KA	6.3	12.5	20	31.5
Peak Withstand Current			KA	16	31.5	50	80

GW9 high voltage isolating switch

					Impulse voltage		Power frequency withstand voltage
Type	Rated voltage (KV)	Rated current (A)	4S Heat steady e.c.A 4S	Impulse withstand voltage A	To earth KV	Across the isolating distance KV	To earth KV To earth	Across the isolating distance KV
GW9-10W/200	12	200	12500	31500	75	85	38	42
GW9-10W/400		400
GW9-10W/630		630
GW9-10W/800		800
GW9-10W/1000		1000
