Outdoor 4 Core Multi-Mode Unitube Fiber Optic Cable

Name: Outdoor 4 Core Multi-Mode Unitube Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 694486062
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	US $ 0.26-0.32/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW53-4A1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	13 mm
Strength Member:	Steel Wire
Fiber:	Sm/mm
Loose Tube:	PBT
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Sheath Material:	PE

Product Description

Properties

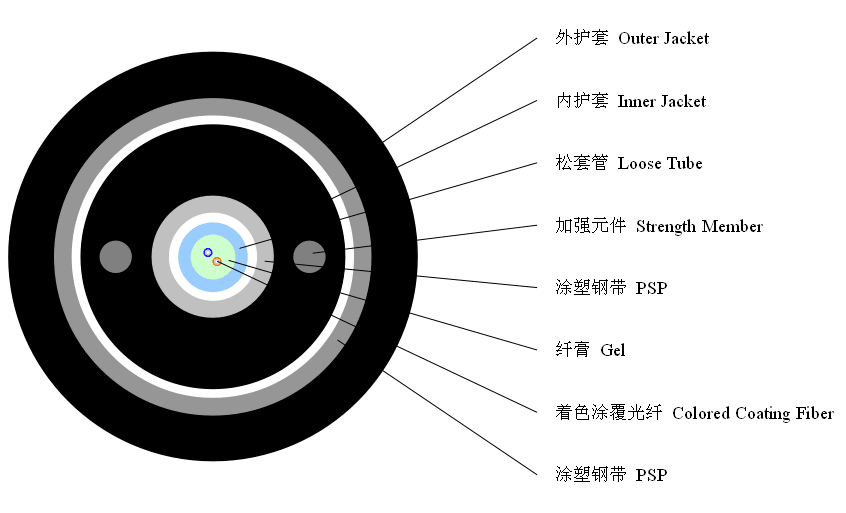

The fibers are positioned in a loose tube filled with a water-resistant filling compound.
Two parallel round steel wires are placed at the two sides of inner PE sheath
Outside the central loose tube it is wrapped by water-blocking system
Corrugated steel tape is laminated at both side and bonded to PE outer jacket.
Double armored and double sheathed structure ensure not only moisture-proof but also excellent mechanical performance.

Applicable fields
Long distance and Local Area Network (LAN) communication
GYXTW53 is suitable for aerial or conduit installation

Structure Characters
Double wire as strain member provides excellent strain performance
Excellent mechanical performance
Easy to installation and operation
Small outer diameter, lightweight, tight structure, excellent bending property
Good water-resistant properties

Options
Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b, OM3 or OM4 multi-mode fiber, or other types of fiber.
Fiber count: The fiber count is usually 1-6, or other contracted fiber count;
Jacket Material: Environmental thermos plastic PE(TPU), or other contracted material;
Jacket Color: Black, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.
