Outdoor 72core Optical Fiber Ribbon Cables
| Price: |
US $ 1.47-1.67/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GYDTA |
| Color: |
Black |
| Operating Temperature: |
-40ºC--+70ºC |
| Max Core: |
576 |
| Cable Standard: |
Yd/T 981.3-2009 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
72 Cores G652D |
| Core: |
24 |
| Brand: |
Hongan |
| Sheath Material: |
PE |
Product Description

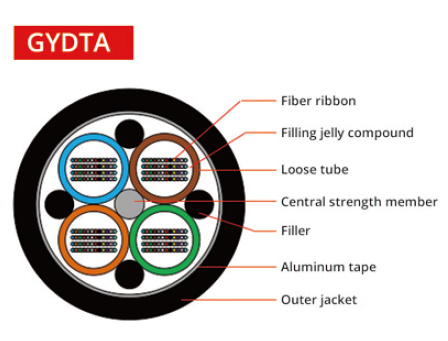

Product DescriptionGYDTA
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2 ± 0.4 |
| 1550nm | mm | 10.4 ± 0.8 |
| Cladding diameter | mm | 125.0 ± 1 |
| Cladding non-circularity | % | £1.0 |
| Core concentricity error | mm | £0.5 |
| Coating diameter | mm | 242 ± 7 |
| Coating/cladding concentricity error | mm | £12 |
| Cable cut-off wavelength | nm | £ 1260 |
| Attenuation Coefficient | 1310nm | dB/km | £0.4 |
| 1550nm | dB/km | £0.3 |
| Proof stress level | kpsi | ≥100 |
Note: Other parameters meet standard ITU-T G.652 | Fiber count | Structure | Fibers per ribbon | Loose tube diameter
(mm) | CSM diameter
/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter
(mm) | Cable
Weight
(kg/km) |
| 72 | 1+4 | 12 | 5.2±0.1 | 2.3/2.3 | 1.8±0.1 | 17.7 ±0.5 | 270 |
| Item | Parameters |
| Loose tube | Material | PBT |
| Color | Full color spectrum |
| Filler | Material | PE |
| Color | Black |
| CSM | Material | Phosphating steel wire |
| Armoured | Material | Plastic coated aluminum strip |
| Outer jacket | Material | MDPE |
| Color | Black |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter |
| Repeating bending | Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. |
| Tensile performance | Short term | 0.8G(Cable weight) |
| Crush | Short term | 1000N/100mm The addition attention≤0.1dB |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage. |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. |
| Item | Standard | Parameters |
| Operation temperature | IEC 60794-1-2 F1 | -40ºC~+70ºC |
| Water penetration | IEC 60794-1-2-F5 | Water level:1m ,sample:3m, After 24h,no water ingress. |
| Cable type | Drum |
| Height | Width | Inner diameter |
| GYDTA-72B1.3 | 1300mm | 760mm | 450mm |
Company introduction:HONGAN GROUP is located in Shandong China. We Specialized in producing optical fiber cable, network data cable and multi pair telephone cables more than 30 years, also supply EPON , GPON, data center solutions and related equipments. Our products have passed ISO9001 ,ISO14001 and OHSAS18001, meet the requirements of CE, RoHS, TLC and UL, and have been exported to Thailand, Cambodia ,Burma, Vietnam, Laos, Europe, Africa etc., more than twenty countries.
Advanced production lines:
Our customers
Our certificates:
Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.
Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.
Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
