Outdoor AC High Voltage Disconnector Model (GW4)

Name: Outdoor AC High Voltage Disconnector Model (GW4)
Brand: all-electronics-online.com
SKU: 627043335
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outdoor Installation:	Three Phase
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Single-Stage
Run:	Turn the Horizontal
Switching Mode:	Single Throw-in
Common Model:	Gn10

Product Description

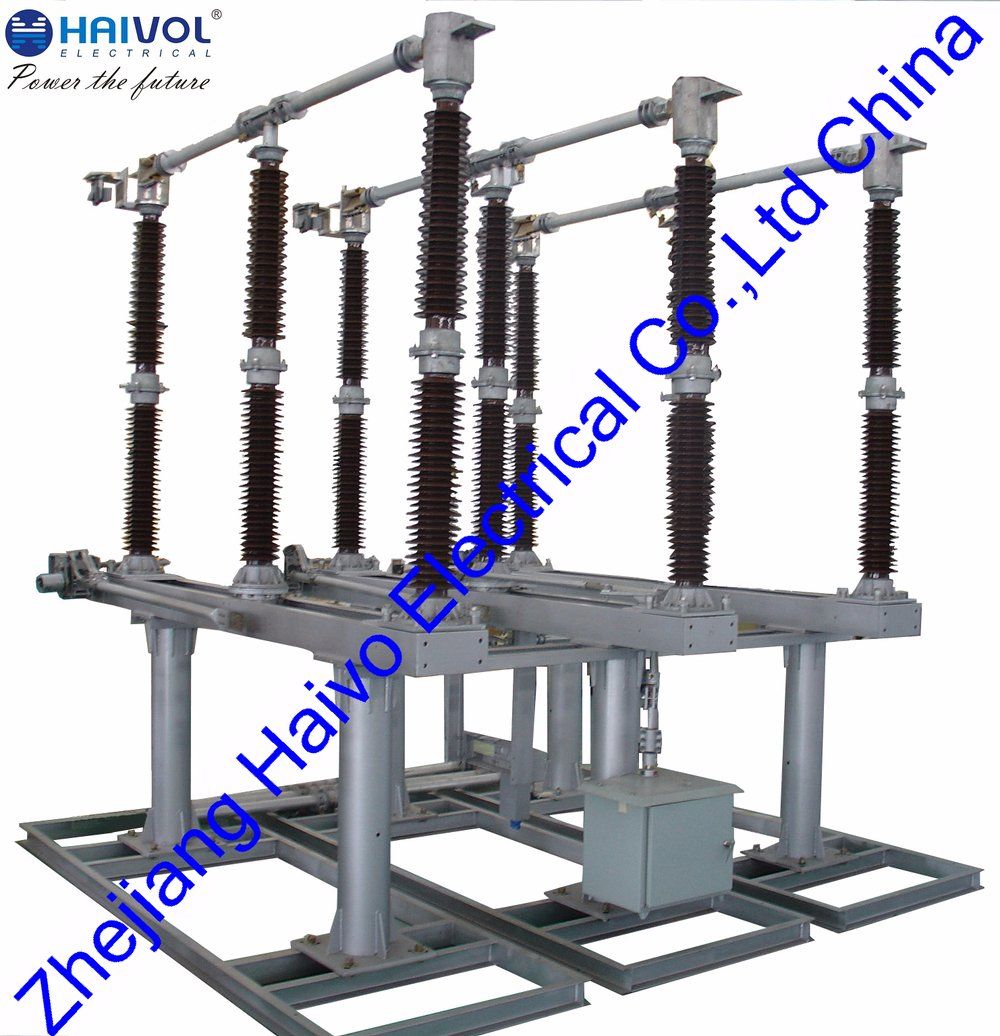

Outdoor AC High Voltage Disconnect switch Model Gw4
Outdoor AC high voltage disconnector GW4 series are outdoor HV apparatus of three-phase 50Hz in electrical power system of rated voltage 126-252kV, acting as switching operation under no-load condition as well as electrical separating between electrical apparatus being tested and live circuit.
The product tallies with the requirements of GB1985 and IEC62271-102.

Main Features:
1. Simple in structure, superior in characteristics and reliable in operation;
2. High reliability by adopting self-supporting structure of contacts;
3. No need to check and adjust during operation, contact pressure does not change consistantly;
4. Better in self-cleaning capacity;
5. Touching pressure of contact is increased automati-cally when passing through short circuit current;
6. Superior in anti-rust features by adopting the design of anti-corrosion;
7. Better in the stability of structure for whole body;
8. Simple in assembling, easy in adjusting.

Ambient Condition:

• Altitude:≤1000-3000m

•Ambient temperature:no more than 40°C and no less than -30°C(no less than -40°C in alpina areas )

•Wind speed:≤34m/s

•Earthquake intensity:≤8 degree

•Air pollution :IV

•Ice thickness:≤100mm

•the installation location shall be free from flammable ,explosive dangerous articies,chemical corrosion and flerce vibration

•The pollution grade of post insulator :o for general type and 2 for pollution resistance type

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
