Outdoor ADSS Fiber Optic Cable

Name: Outdoor ADSS Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 823190945
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	US $ 0.51/Meter
Min Order:	300/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADSS
Application:	Communication
Certification:	CE

Product Description

Specification
ADSS Outdoor Optical Cable

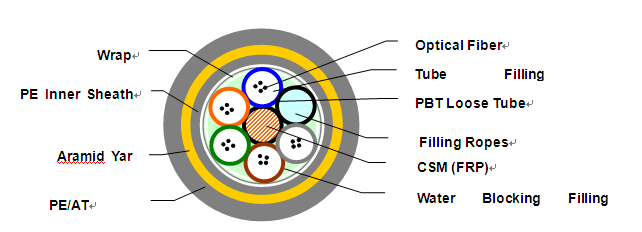

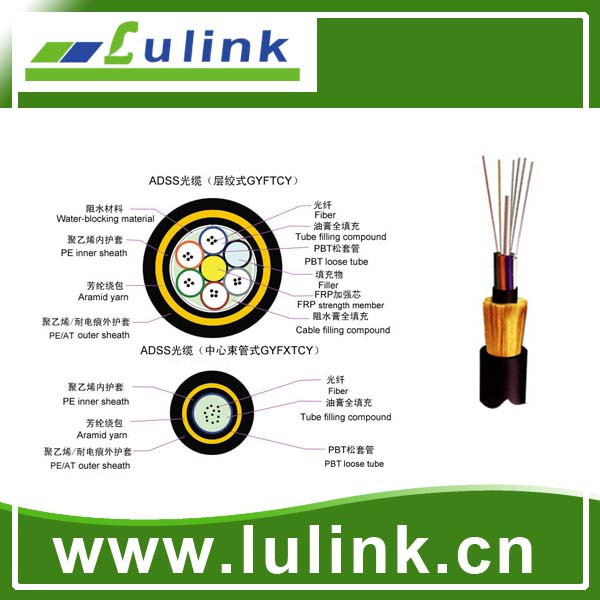

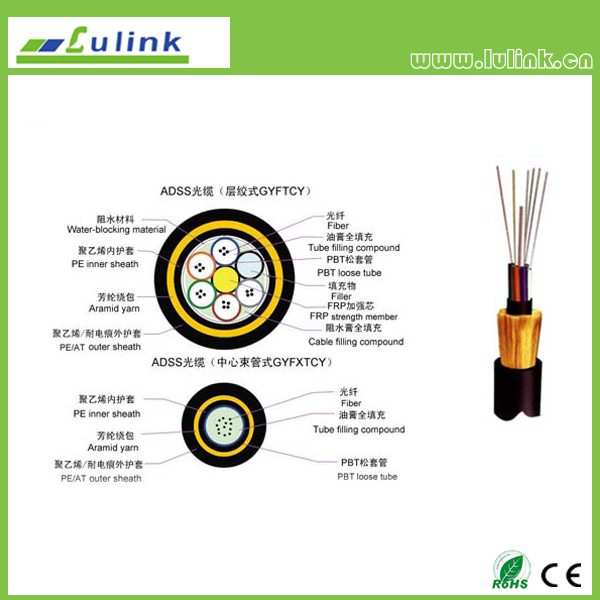

Corss Section

Application
1. Laying method: Aerial
2. Mainly applied in electric power system to provide a convenient way to establish communication networks. It is suitable for aerial installation when a communication line has to span a river, a valley, a thunder area and other fields with special requirements.

Characteristics:
< >Large span lengths and the largest span is over 1700m.Non-metallic material, with high insulating property performances as well as lightningproofSpecial Anti-Track outer sheath (optional) protection, strong anti-electro-corrosion ability. The aramid yarn ensures the cable's tensile resistance, and also have good bulletproof performances.Light weight with small diameter, reducing the load caused by ice and wind as well as the load on the towers and backprops. Can be installed without shutting off the power.Fiber characteristic:

Fiber style			Unit	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
Condition			nm	1310/1550	850/1300	850/1300	850/1300
Attenuation			dB/km	0.36/0.23	3.0/1.0	3.0/1.0	3.0/1.0
Dispersion		1550nm	Ps (nm ·km)	≤18	-----	-----	Dispersion
Dispersion		1625nm	Ps (nm ·km)	≤22	-----	-----
Bandwidth		850nm	MHZ ·.km	-----	≥400	≥160	Bandwidth
Bandwidth		1300nm	MHZ. ·km	-----	≥800	≥500
Zero dispersion wavelength			nm	≥1302 ,≤1322	------	------	≥1295 ,≤1320
Zero dispersion slope			nm	≤0.091	------	------	≤0.11
PMD Maximum Individual Fibre			um	≤0.2	------	------	------
PMD Design Link Value			Ps/(nm²*km)	≤0.08	------	------	------
Fibre cutoff wavelength λc			nm	≥1180 ,≤1330	------	------	------
Cable cutoff wavelengthλcc			nm	≤1260	-------	-------	-------
Mode field diameter(MFD)	1310nm		um	9.2±0.4	------	-------	-------
Mode field diameter(MFD)	1550nm		um	10.4±0.8	------	-------	-------
Numerical Aperture(NA)				-----	0.200±0.015	0.275±0.015	0.200±0.015
Step(mean of bidirectional measurement)			dB	≤0.05	≤0. 10	≤0. 10	≤0. 10
Irregularities over fibre length and point discontinuity			dB	≤0.05	≤0. 10	≤0. 10	≤0. 10
Difference backscatter coefficient			dB/km	≤0.03	≤0. 08	≤0. 10	≤0. 08
Attenuation uniformity			dB/km	≤0.01	-----	------	-----
Core diameter			um	-----	50±1.0	62.5±2.5	50±1.0
Cladding diameter			um	125.0±0.1	125.0±0.1	125.0±0.1	125.0±0.1
Cladding non-circularity			%	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter			um	242±7	242±7	242±7	242±7
Coating/cladding concentricity error			um	≤12.0	≤12.0	≤12.0	≤12.0
Coating non-circularity			%	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)			um	≤4	-----	-----	-----

Technical Requirements:

Fiber Count	ART.NO.	AS-1	AS-2	AS-3	AS-4	AS-5	AS-6



	MAX.SPAN	50-100	100-200	200-400	500-700	800-1000	1100-1300
	RTS	5.0kN	12.0kN	25.0kN	45.0kN	77.5kN	125.0kN
	MAT	2.0kN	4.8kN	10.0kN	18.0kN	31.0kN	50.0kN
2-24B	Diameter/mm	12.1	12.3	12.7	13.3	14.5	16.2
2-24B	Weight kg/km	115	119	129	144	169	207
24-48B	Diameter/mm	12.7	12.9	13.3	13.9	14.9	16.6
24-48B	Weight kg/km	125	130	140	155	179	217
48-72B	Diameter/mm	14	14.1	14.5	15	16	17.5
48-72B	Weight kg/km	150	155	164	179	203	240
