Name: Outdoor Cat5e Cable UTP
Brand: all-electronics-online.com
SKU: 686239255
Availability: InStock
Rating: 4.8 (60 reviews)

Price:	US $ 13.00/Box
Trade Terms:	FOB
Min Order:	200/Box
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Optional
Usage:	Computer
Type:	Wired

Product Description

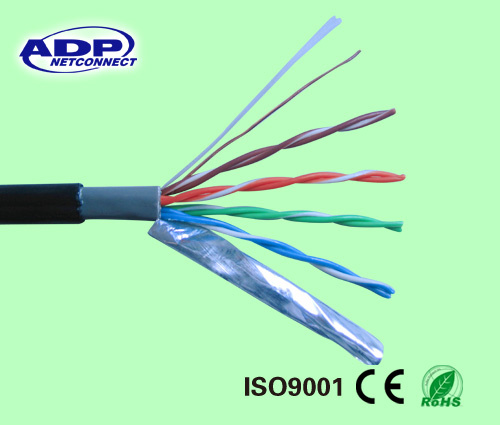

Outdoor cat5e cable UTP
1Ethernet network cable standard defined by the Electronic Industries Association
2. UL, CU, CCC
Inner conductor
Material
Solid Bare Copper

Diameter
0.40+/-0.01mm(26AWG)

Insulation(Dielectric)
Material
Color-coded PE(Polyethylene)

Thickness
0.18mm

Diameter
0.82+/- 0.01mm

Outer Jacket
Material
PVC Inner Layer(First Jacket)+PE Jacket(Outer Jacket)

Thickness
0.6mm

Norminal O. D,
4.50mm ± 0.10mm

Twisted pair
N/A
1. BLUE*WHITE/B

N/A
2. ORANGE*W/O

N/A
3. GREEN*W/G

N/A
4. BROWN*W/B

3. Application
A. 100 Base-T4
B. 100 Base-TX
C. 1000Base-T(Gigabit Ethernet)
D. 155Mbps ATM
E. 622Mbps ATM

4. Structure:
24 AWG (0.51mm) copper conductor
Solid polyolefin insulation
Waterproof strand
FR/PVC or LSOH jacket
5. Frequency: 100 MHz.
6. Impedance: 100± 15 Ohm.
7. Transmission speed: 100Mbps.
8. Pair to Ground Capacitance Unbalance: 50pF/m.

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
