Outdoor Exchange High Voltage Split Load Switch

Name: Outdoor Exchange High Voltage Split Load Switch
Brand: all-electronics-online.com
SKU: 816366675
Availability: InStock
Rating: 4.4 (139 reviews)

Price:	US $ 1000-3000/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW20BF-12
Rated Voltage:	12kv
Rated Current:	630A
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Poles Number:	1
Certification:	CCC
Structure:	Outdoor Type

Product Description

Product description

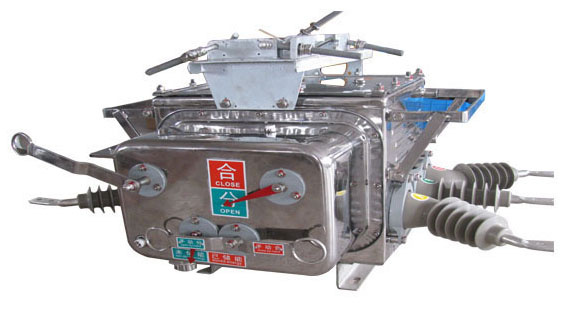

Name:ZW20BF-12 Type Outdoor AC High Voltage Separating Vacuum Circuit Breaker
Structure:The body is ZW20B-12 type vacuum circuit breaker, others are FDR-100, CH-40 fault detection controller and the external voltage transformer, which are electrically connected by aerial socket and cable control through outdoor seal.
Technique:The arc-extinguish medium of switch is vacuum and the insulation is by SF6 gas, and the box applied the lattest technology of gas sealing , exploding protecyion, insulation level from Fongzhi company in Japan.
Function:This product can test, protect and control, as well as communicate , it can accurately judge and monitoring the interphase short-circuit failure current.
Main technique parameter of switch

Model	ZW28-12F/ZW20B(F)-12
Rated voltage	12KV
Power frequency insulation withstand voltage	42KV/48KV
Lightning impulse withstand voltage	75kv/85kv(peak value)
Rated current	630A
Rated short-time withstand current	16KA
Rated thermal stability current	16KA
Rated short-circuit making current(peak value)	40KA
Rated dynamic stability curent(peak value)	40KA
Rated cable charging breaking current	20KA
Mechanical life	10000times

Our company
Our company
SHANGHAI POWERY INDUSTRIES CO., LTD. ( SPI ) corporate group has been dealing with the interfaces in the flow of electricity ever since it was founded back in 2011. SPI's three groups - Pole Line Hardware( Qingdao, China ),High Voltage Line Protection(Lishui, China ), Distribution Transformers( Shinseong, Korea ) - offer a unique set of brands and products. As a specialist in energy transmission and distribution, we offer our customers and business partners a range of sophisticated, future-ready products: For all voltage ranges and wherever reliable, long-lasting systems are needed for powerful energy grids. We are already well-established in all key global markets and are continuing to strengthen our brand on a worldwide scale.SPI has identified key factors that will be instrumental to its sustainabilit

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
