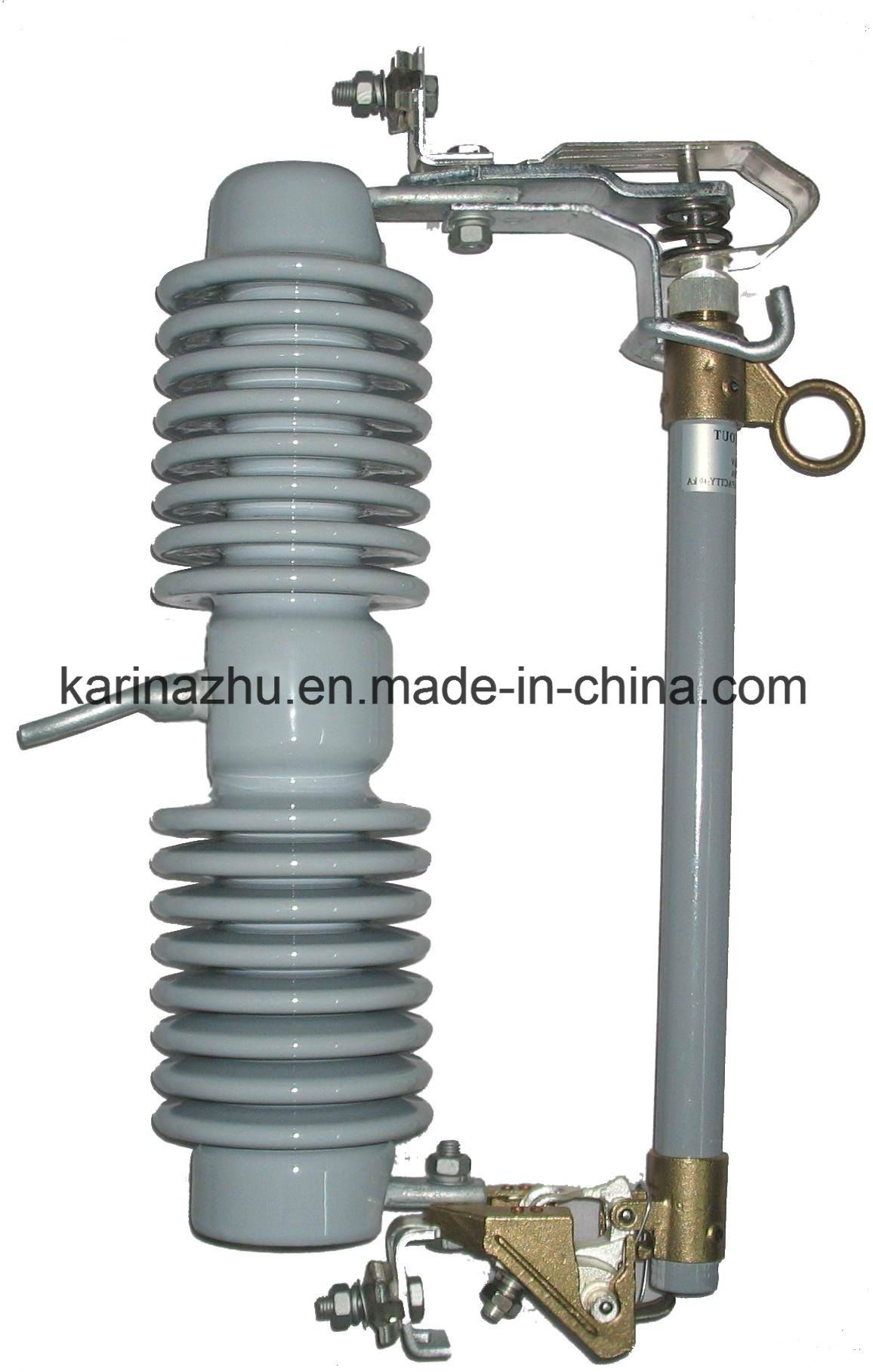

Outdoor Expulsion Drop-out Type Distribution Fuse Cutout Series

Name: Outdoor Expulsion Drop-out Type Distribution Fuse Cutout Series
Brand: all-electronics-online.com
SKU: 696345415
Availability: InStock
Rating: 4.6 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	EXW /FOB/CFR/CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	(ZNF-2)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Arc-Extinguishing Medium:	Vacuum
Function:	Ovp(Overvoltage Protection)
Certification:	ISO9001-2000
Breaking Capacity:	High Voltage Circuit Breakers
Type:	Fuse

Product Description

Condition of Use:
1. The ambient air temperatures within the range of -30 degreeto +40 degree;
2. The altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of the A. C. Power supply not less than 48Hz and not exceeding 52Hz;
4. Earthquake intensity not exceeding 7 degrees;
5. Maximum wind speed not exceeding 35m/s.

Technical Standard:
The technical performance of the products is in confirmed to IEC291, 282.

Type designation		ZNF-2
Rated voltage	kV	10~15		15~27		24~27		27~33		33~36		36~38
Rated current	kA	100	200	100	200	100	200	100	200	100	200	100	200
Breaking current	A	10000	12000	10000	12000	8000	10000	6000	8000	6000	8000	6000	8000
Impulse voltage (BIL)	kV	110	110	125	125	150	150	170	170	170	170	180	180
Power-frequency withstand volltage	kV	40	40	45	45	65	65	70	70	70	70	70	70
Leakage distance	mm	250	250	350	350	530	530	700	700	720	720	850	850

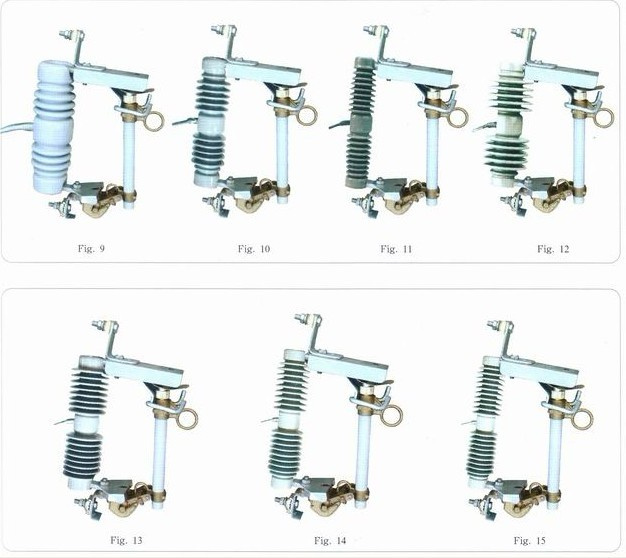

Figure No.		fig. 9		fig. 10		fig. 11, fig. 12		fig. 13		fig. 14		fig. 15

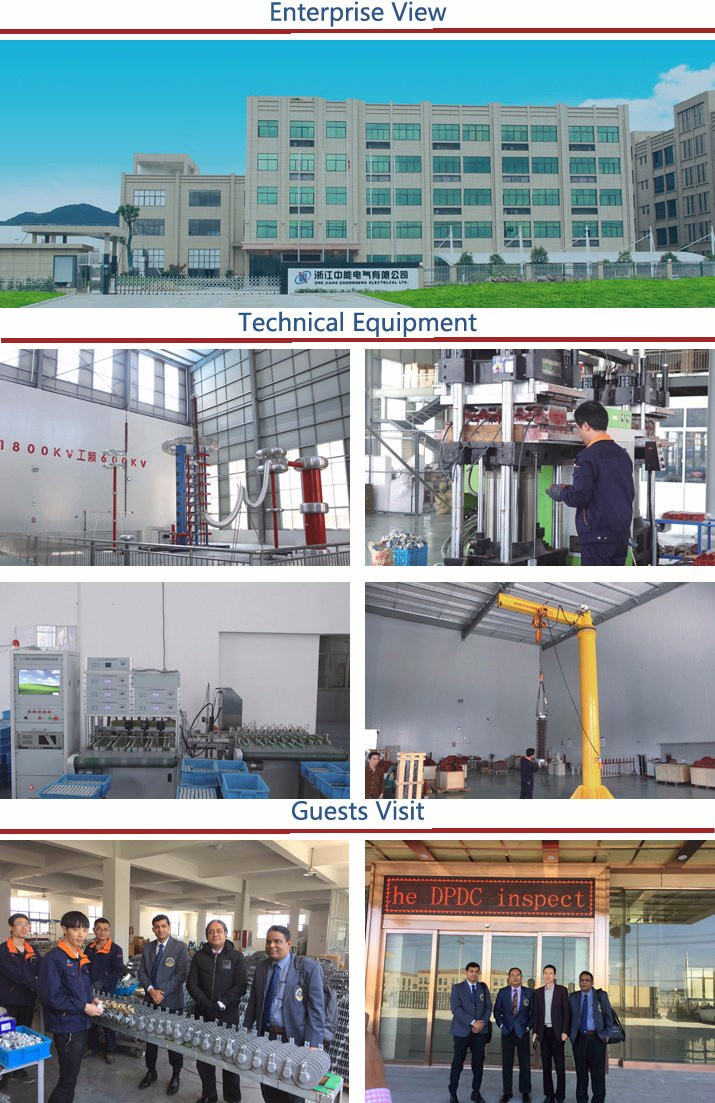

Zhejiang Zhongneng Electrical Co., Ltd., located in Zhejiang Province, is the key medium/high voltage electric productive enterprise of FATO Mechanical and Electrical Equipment Group Co., Ltd.And a provincial advanced enterprise, mainly producing 220kV and below high voltage electro ceramic products, especially lightning arrester series, composite insulator series and drop-out fuse cutout series, and low-voltage surge protective device series.Our products have complete testing devices and strict quality and production management systems.Our products are known for the characteristics of solid power, advanced science and technology, considering service and solid quality.Moreover, for some core products, we have the independent intellectual property right.

Our corporation has the independent corporate capacity.Our progenitor is the division store of Suzhou Surge Arrester Co., Ltd.Which is founded in 1989, and after joined into FATO Mechanical and Electrical Equipment Group Co., Ltd.In 2003, we changed the name to Zhejiang Zhongneng Electrical Co., Ltd.

Zhejiang Zhongneng Electrical Co., Ltd.Is the professional over-voltage protectors manufacturing enterprise, and a member unit of China Electric Industry Association.We passed the certification of ISO9001 quality system and confirmed to standards such as IEC 60099-4, 61643-1, 291, 282 issued by international electric and industrial committee.Moreover, we have a long-term technical cooperation with many technical and research institutes and core enterprises in this industry line, and the qualities of our products can stand long-time decimation.

Following the technical and economical developing step, and the globalization process, in the merger process of global advantage resources, we constantly expect the cooperation coming from global partner.We are looking forward to cooperating with you!
