Name: Outdoor Fiber Optic Distribution Box
Brand: all-electronics-online.com
SKU: 721950215
Availability: InStock
Rating: 5 (67 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPX-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	45540580mm;455405120mm;455405150mm
Max.Capacity:	24 Fibers;48 Fibers;72 Fibers
Max.No.of Adapters:	24 PCS; 48 PCS; 72 PCS
No Of Ports:	6 Ports or Customer Specified

Product Description

Introduction

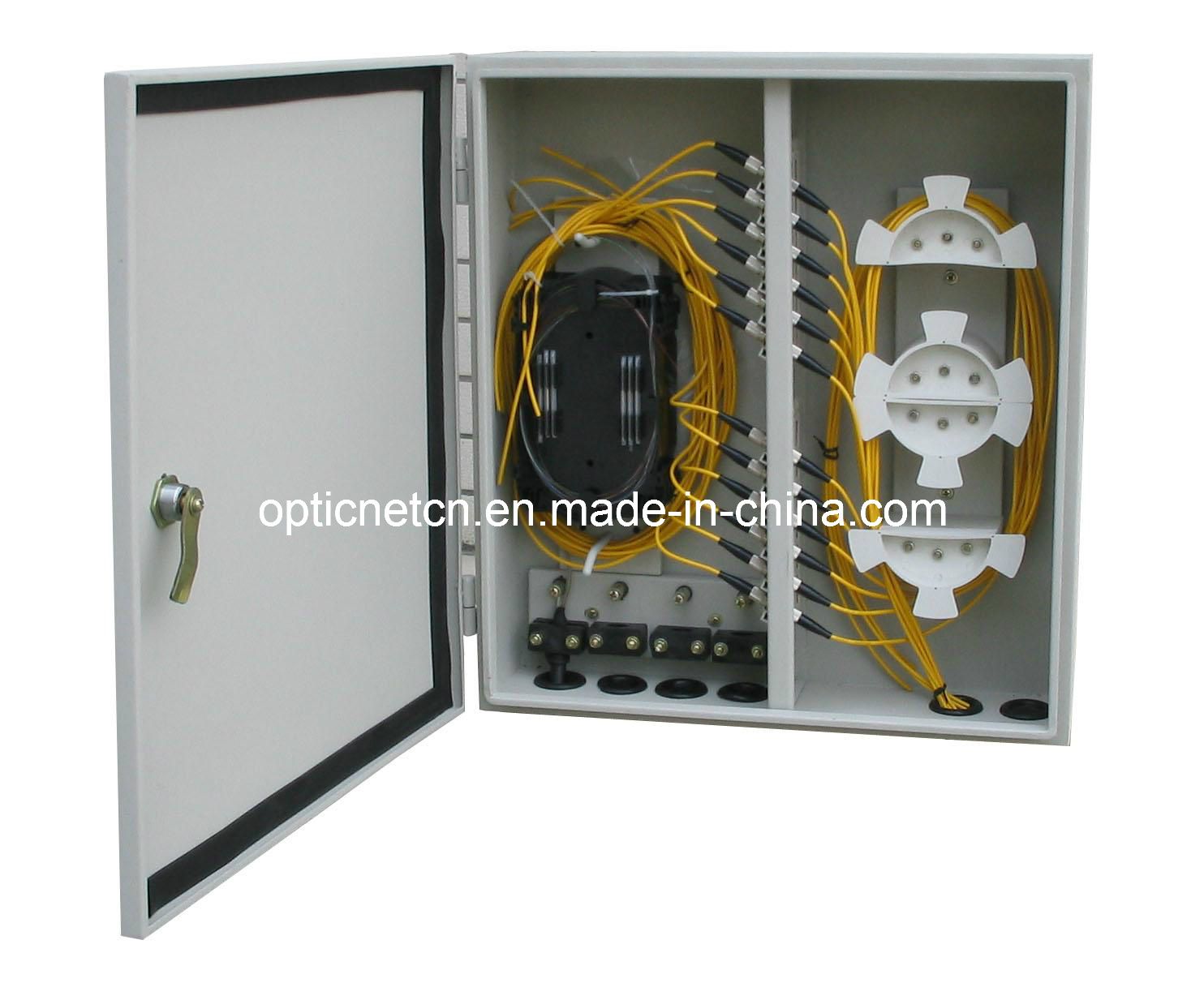

Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room. The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord. Provide fusion and storage appliance for optical cables.

Features
1. The case body is made of cold rolled steel sheet, electrostatic spraying, outdoor wall mounting, provide 24-72 adaptors, available for FC\SC\ST\LC
2. Reliable protection appliance of fixing, stripping and earthing for optical cables.
3. Whole range protected design for fiber lay to ensure the bending radius ≥ 40mm
4. Provide various accessories to avoid any unexpected damage to the fiber

Model. No.	Dimension(mm) (H x W x D)	Max. Capacity (Fiber Count)	Max. No of Adapters (FC.SC,LC, ST, duplex LC or duplex SC)	No. of Ports
GPX-B24	45540580	24	24	6 ports or customer specified
GPX-B48	455405120	48	48	6 ports or customer specified
GPX-B72	455405150	72	72	6 ports or customer specified

Optic Network Technology Co. Ltd. Is one of the high-tech companies, who is specialized in developing, manufacturing, selling and serving telecommunication-level products.

We have several branches, offering a wide range of the products, such as Fiber Optic Splice Closure, Fiber Optic Termination Box, rack mounting ODF, wall mounting ODF, optical cross cabinet as well as passive components, such as patchcord, pigtail, optical splitter, attenuator, DWDM/CWDM/WDM, etc. One of the divisions also covers fiber optic testing equipment such as Optical Power Meter, Optical Light Source, Fiber Identifier, OTDR, Visual Fault Locator, etc.

With the continuing rapid development of Internet, new Internet service which continuously increase needs of bandwidth of Internet access, our company FTTX solutions adopt independent R&D Optical Link Service products. We have taken full consideration of requirement in different operating environment by offering a range so f OLT, ONU, etc. GEPON products for customers various needs. Our FTTX products also include FTTX FOSC with splitter mounted, FTTX box,

MDU splitter terminal, EPON/GEPON broadband data integration cabinet.

Our company have consistent quality, and our QC team monitor the manufacturing process and inspect all the products before shipment. Our products have been exported to North America, South America, East Europe and West Europe, Middle East, Africa and Asia.

"High quality, good service, competitive price, mutual benefit and innovative technology' is our eternal goal. We are confident that we will be your reliable partner in China and Look forward to establishing fruitful business relationship with the customers domestic and overseas
