Outdoor Gyfta53 Fiber Optic Cable

Name: Outdoor Gyfta53 Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 823196855
Availability: InStock
Rating: 4.9 (76 reviews)

Price:	US $ 0.43/Meter
Min Order:	300/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Gyfta53
Application:	Communication
Certification:	CE
Brand:	Lulink

Product Description

Specification
GYFTA53 Outdoor Optical Cable

Descriptions:

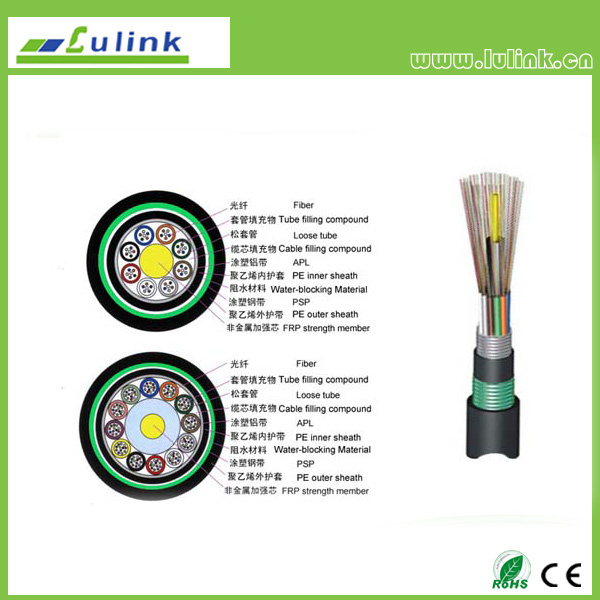

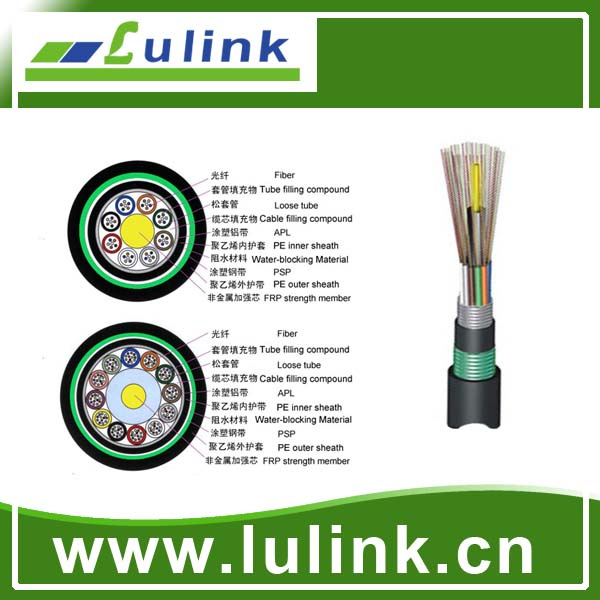

The SM fibers are placed in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound, A piece of FIBER REINFORCED PLATIC(FRP) locates in the centre of core as a non-metallic strength member. The tubes ( and fillers ) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Application:

Laying method: Direct buried
Suitable for long-distance trunk and LAN communication.
Fiber type: SM

Characteristics:

Double sheaths construction
Accurate fiber excess length ensures good mechanical and temperature performance.
Specially designed compact structure is good at preventing loose tubes from shrinking.
High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
Moistureproof and ratproof, crush resistance and flexibility.
The following measures are taken to ensure the cable watertight:

Single fiber reinforced plastic as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material

Fiber characteristic:

Fiber style			Unit	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
Condition			nm	1310/1550	850/1300	850/1300	850/1300
Attenuation			dB/km	0.36/0.23	3.0/1.0	3.0/1.0	3.0/1.0
Dispersion		1550nm	Ps (nm ·km)	≤18	-----	-----	Dispersion
Dispersion		1625nm	Ps (nm ·km)	≤22	-----	-----
Bandwidth		850nm	MHZ ·.km	-----	≥400	≥160	Bandwidth
Bandwidth		1300nm	MHZ. ·km	-----	≥800	≥500
Zero dispersion wavelength			nm	≥1302 ,≤1322	------	------	≥1295 ,≤1320
Zero dispersion slope			nm	≤0.091	------	------	≤0.11
PMD Maximum Individual Fibre			um	≤0.2	------	------	------
PMD Design Link Value			Ps/(nm²*km)	≤0.08	------	------	------
Fibre cutoff wavelength λc			nm	≥1180 ,≤1330	------	------	------
Cable cutoff wavelengthλcc			nm	≤1260	-------	-------	-------
Mode field diameter(MFD)	1310nm		um	9.2±0.4	------	-------	-------
Mode field diameter(MFD)	1550nm		um	10.4±0.8	------	-------	-------
Numerical Aperture(NA)				-----	0.200±0.015	0.275±0.015	0.200±0.015
Step(mean of bidirectional measurement)			dB	≤0.05	≤0. 10	≤0. 10	≤0. 10
Irregularities over fibre length and point discontinuity			dB	≤0.05	≤0. 10	≤0. 10	≤0. 10
Difference backscatter coefficient			dB/km	≤0.03	≤0. 08	≤0. 10	≤0. 08
Attenuation uniformity			dB/km	≤0.01	-----	------	-----
Core diameter			um	-----	50±1.0	62.5±2.5	50±1.0
Cladding diameter			um	125.0±0.1	125.0±0.1	125.0±0.1	125.0±0.1
Cladding non-circularity			%	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter			um	242±7	242±7	242±7	242±7
Coating/cladding concentricity error			um	≤12.0	≤12.0	≤12.0	≤12.0
Coating non-circularity			%	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)			um	≤4	-----	-----	-----

Technical Requirements:

Fiber Count	Dia (mm)	Weight (kg/km)	Min.Bending Radius(mm)		Max Tension(N)		Crush Pressure(N/100mm)
			Dynamic	Static	Short Term	Long Term	Short Term	Long Term
2-48	16.8	270	20×D	10×D	3000	1000	3000	1000
50-96	18.9	330	20×D	10×D	3000	1000	3000	1000
98-120	20.0	390	20×D	10×D	3000	1000	3000	1000
122-144	22.3	460	20×D	10×D	3000	1000	3000	1000

Lulink Electronics Technology Co., Ltd. Built on the year of 2001, initially as a leading network communication product supplier, engaged in connecting every corner of the world via the network in the most convenient manner and enriching people's life.

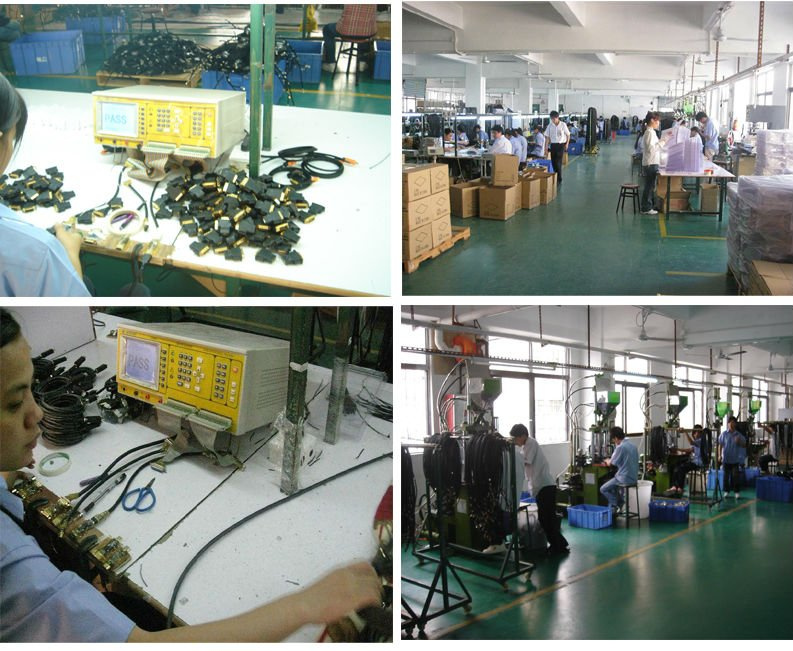

Now Lulink became one of Group company focus on the development, production, sales and service of Telecommunication products and generic cabling. The Factory base location on province Zhejiang, Guangdong. The office and Research central on Guangzhou, Dongguan and Shenzhen,? Which have hundreds staffs, and the capital asserts reach dozens of million RMB.
