Outdoor GYFTY Fiber Optic Cable
| Price: |
US $ 0.22/Meter |
| Min Order: |
300/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GYFTY |
| Application: |
Communication |
| Certification: |
CE |
| Brand: |
Lulink |
Product Description

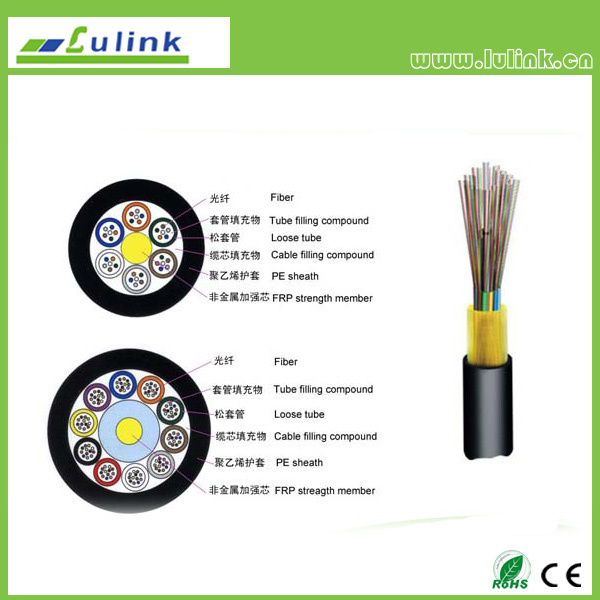

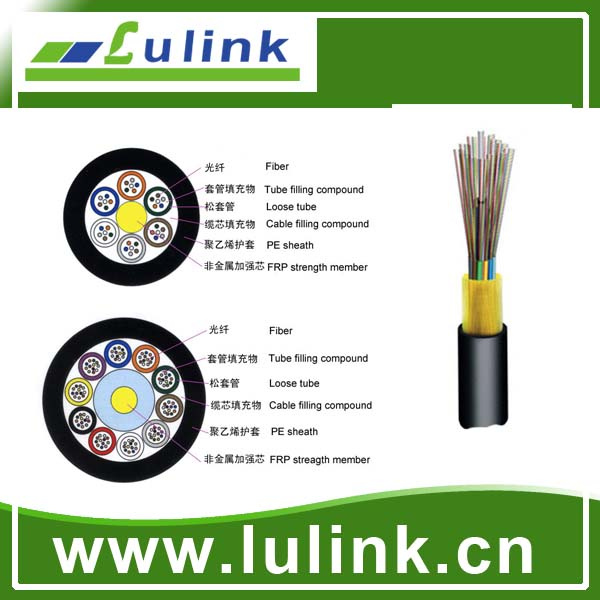

SpecificationGYFTY Outdoor Optical Cable Corss Section
Application: < >
Laying method: DuctSuitable for long-distance trunk and LAN communication in high-voltage area or access to telecom network. Especially for power transmission system, excessive thunder areas and high electromagnetic interference.Fiber type: Single-mode/MultimodeCharacteristics:< >
Non-metallic structure providing excellent anti-electromagnetism,anti-thunder and anti-static performance.Accurate fiber excess length ensures good mechanical and temperature performance.Specially designed compact structure is good at preventing loose tubes from shrinking.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.Fiber characteristic:| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| Attenuation | dB/km | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Dispersion | 1550nm | Ps (nm ·km) | ≤18 | ----- | ----- | Dispersion |
| 1625nm | Ps (nm ·km) | ≤22 | ----- | ----- | |
| Bandwidth | 850nm | MHZ ·.km | ----- | ≥400 | ≥160 | Bandwidth |
| 1300nm | MHZ. ·km | ----- | ≥800 | ≥500 | |
| Zero dispersion wavelength | nm | ≥1302 ,≤1322 | ------ | ------ | ≥1295 ,≤1320 |
| Zero dispersion slope | nm | ≤0.091 | ------ | ------ | ≤0.11 |
| PMD Maximum Individual Fibre | um | ≤0.2 | ------ | ------ | ------ |
| PMD Design Link Value | Ps/(nm2*km) | ≤0.08 | ------ | ------ | ------ |
| Fibre cutoff wavelength λc | nm | ≥1180 ,≤1330 | ------ | ------ | ------ |
| Cable cutoff wavelengthλcc | nm | ≤1260 | ------- | ------- | ------- |
| Mode field diameter(MFD) | 1310nm | um | 9.2±0.4 | ------ | ------- | ------- |
| 1550nm | um | 10.4±0.8 | ------ | ------- | ------- |
| Numerical Aperture(NA) | | ----- | 0.200±0.015 | 0.275±0.015 | 0.200±0.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Irregularities over fibre length and point discontinuity | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0. 08 | ≤0. 10 | ≤0. 08 |
| Attenuation uniformity | dB/km | ≤0.01 | ----- | ------ | ----- |
| Core diameter | um | ----- | 50±1.0 | 62.5±2.5 | 50±1.0 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | 242±7 |
| Coating/cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non-circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ----- | ----- | ----- |
| | | | | | | | |
Technical Requirements: | Fiber Count | Cable Dia (mm) | Weight (kg/km) | Min.Bending Radius(mm) | Max Tension(N) | Crush Pressure (N/100mm) |
| | | | Dynamic | Static | Short Term | Long Term | Short Term | Long Term |
| 2-36 | 10.5 | 85 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 36-60 | 11.4 | 110 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 48-72 | 11.9 | 115 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 72-84 | 12.8 | 125 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 84-96 | 13.7 | 140 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 96-108 | 14.6 | 160 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 108-120 | 15.4 | 175 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 120-132 | 16.3 | 195 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
| 132-216 | 17.2 | 220 | 20×D | 10×D | 1000/3000 | 600/1000 | 1000 | 300 |
