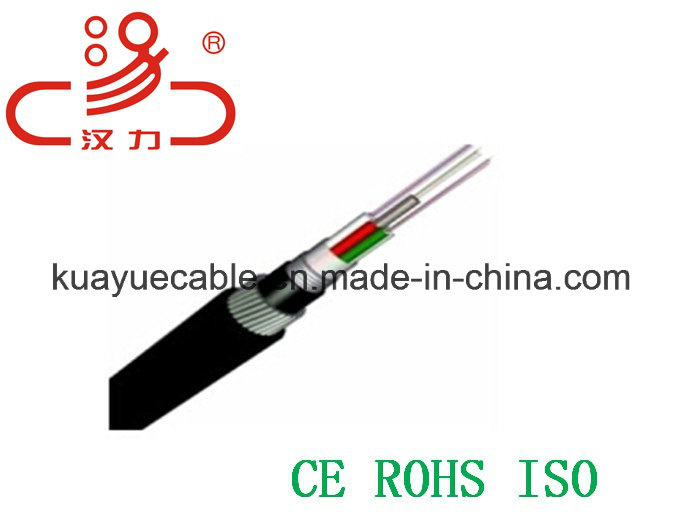

Outdoor GYTA Optical Cable/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable

Prod Model:	Outdoor GYTA
Model No:	Outdoor GYTA Optical Cable
Application:	Probe
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Hanli

Product Description

Product Description

Optical Cables--Unitube Light-armored Cable
	GYXTW Optical cable construction : The coloring fiber are positioned in a central loose tube, the PSP is longitudinal covering, parallel steelwire is inside the PE sheath, between steel strip and loose tube are filled with a waterblocking

he multi loose tube non metallic cable is designed for outside plant, which is prone to electrical interference.
    Description
The cable consists of 5 to 36 fi bers containing tubes or fi llers stranded in up to 3 layers around a central strength member and bound under a PE jacket. Each tube contains 4 -12 fi bers. Solid or stranded steel wire coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required. Either aramid yarn or fi ber glass is wound around the tube to provide physical protection and tensile strength. The cable can be jacketed with either PE, PVC or LSZH though PE is the preferred option for water protection purpose. For direct burial, steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC or PE. An Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. A ripcord is located under the jacket to facilitate jacket removal.
   Construction
    Physical Properties

Fiber Count	Nominal Weight(kg/km)	Nominal Weight(lb/kft)	Nominal Outer Diameter(mm)	Nominal Outer Diameter(in)	Maximum Pulling Load
					Installation(N/Ib)	In Service(N/Ib)
2-36	110.0	73.83	120.	0.472	2670/600	800/180
38-72	120.0	80.54	12.6	0.496	2670/600	800/180
74-84	135.0	90.60	13.5	0.531	2670/600	800/180
76-96	150.0	100.67	14.0	0.551	2670/600	800/180
98-108	170.0	114.09	15.0	0.590	2670/600	800/180
110-120	190.0	127.52	15.5	0.610	2670/600	800/180
122-132	210.0	140.94	16.5	0.649	2670/600	800/180
134-144	230.0	154.36	17.5	0.688	2670/600	800/180
146-216	250.0	167.79	18.0	0.708	2670/600	800/180
218-264	300.0	201.34	19.5	0.767	2670/600	800/180
266-312	350.0	234.90	21.0	0.826	2670/600	800/180
314-360	400.0	268.46	22.5	0.885	2670/600	800/180

    Physical Propertie

Fiber Count	Nominal Weight(kg/km)	Nominal Weight(lb/kft)	Nominal Outer Diameter(mm)	Nominal Outer Diameter(in)	Maximum Pulling Load
					Installation(N/Ib)	In Service(N/Ib)
2-36	210.0	140.94	15.0	0.590	2670/600	800/180
38-72	230.0	154.36	15.5	0.610	2670/600	800/180
74-84	250.0	167.79	16.5	0.649	2670/600	800/180
76-96	270.0	181.21	17.0	0.669	2670/600	800/180
98-108	295.0	197.98	17.5	0.688	2670/600	800/180
110-120	320.0	214.77	18.5	0.728	2670/600	800/180
122-132	355.0	238.26	19.0	0.748	2670/600	800/180
134-144	370.0	248.32	20.0	0.787	2670/600	800/180
146-216	390.0	261.74	21.0	0.826	2670/600	800/180
218-264	455.0	305.35	22.5	0.885	2670/600	800/180
266-312	515.0	345.64	24.0	0.944	2670/600	800/180
314-360	580.0	389.26	26.0	1.023	2670/600	800/180

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
