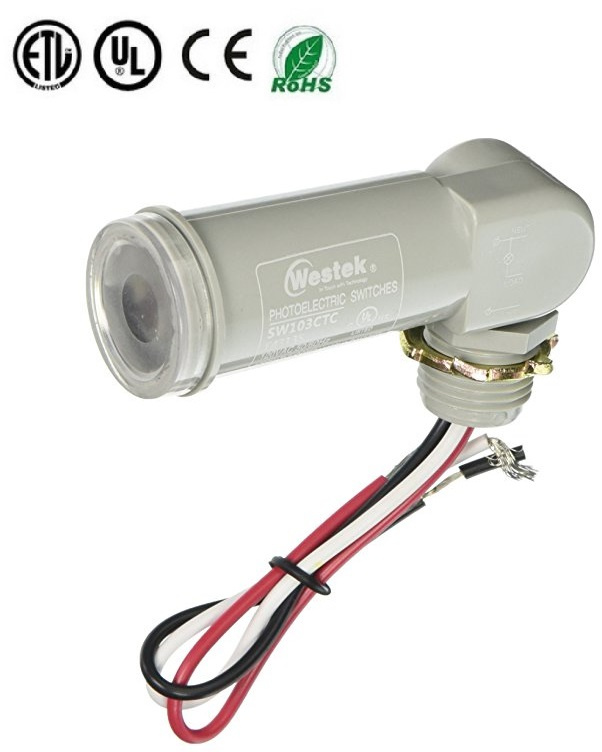

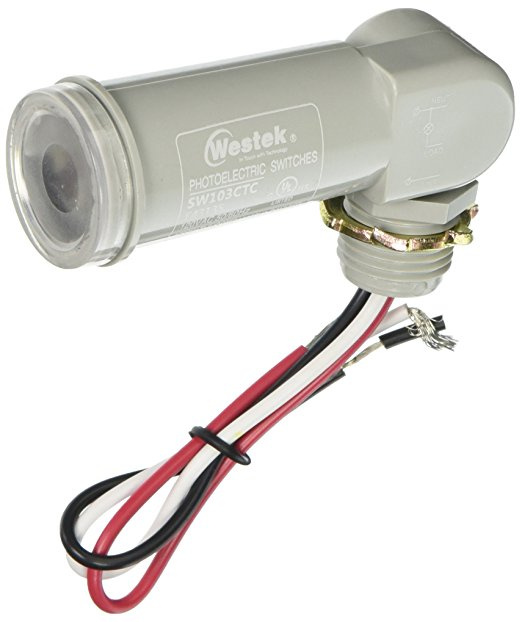

Outdoor Hardwire Swivel-Mount Conduit Light Control with Photocell Swivel Base

Name: Outdoor Hardwire Swivel-Mount Conduit Light Control with Photocell Swivel Base
Brand: all-electronics-online.com
SKU: 825100055
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

Basic Specification:

Rated Voltage	100-120VAC,208-277VAC 50/60Hz
Rated Loading	1800W Tungsten 1100VA ballast
Ambient Temperature	-40ºC ~ +70ºC
Power consumption	1.5VA
Output	Switching Transducer
Theory	Switching Transducer

Product Pictures:

The photoelectric switch JL-104 is applicable to control the street lighting, passage lighting and
doorway lighting automatically in accordance with the ambient lighting level.
This product is designed on the basis of electrical heating structure that provides time delay over
30 seconds to avoid redundant switching against spotlight or lightning during the night time. A
temperature compensator system provides consistent performance regardless of the ambient
temperature.
JL-104 has a gathered swivel with the sensor/switch body for convenient direction adjustment
after installation. Additional swivel is also available for further adjustment.
This product is certified to the Standard for Non-industrial Photoelectric Switches for Lighting
Control UL773A and applicable Canadian Standards.
° Time Delay 30~120 seconds
° Temperature Compensated
°Swivel Incorporated
°Screw Thread & Zinc Alloy Nut
°Additional Swivel Available

Item No.	JL- 104A/JL- 104B
Rated Voltage	100-120VAC, 208-277VAC
Rated Frequency	50/60HZ
Rated Loadings	1 8 0 0 W T u n g s t e n 1 1 0 0 V A B a l l a s t
Power consumption	1.5VA
On-Off Levels	10~20Lx On (Dusk) 30~60Lx Off (Dawn)
Ambient Temp	-40ºC ~ +70ºC
Related Humidity	95%
Body Meas.	Body: 88(L)x 32(Dia.)mm; Stem:27(Ext.)mm; 180o
Swivel Meas.	85(L) x 36(Dia. Max.)mm; 200o
Leads Length	150mm or Customer request; AWM3321, AWG#16
Approx. Weight	58g (Body); 22g (Swivel)

Installation:
Disconnect power,
place screw thread of the SWITCH in knockout hole and fasten with rubber
gasket and Zinc alloy lock-nut.

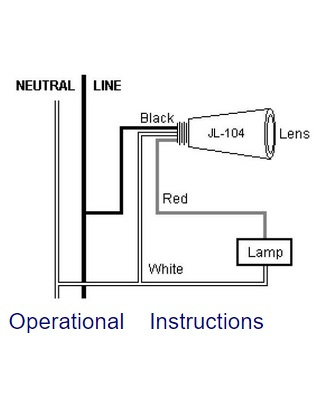

Wire according to the diagram in right hand.
Do not install the switch with the Photocell facing artificial or reflected light.
This will cause the unit to cycle on and off at night.
