Outdoor High-Voltage Disconnect Switch Hgw9-10/200A

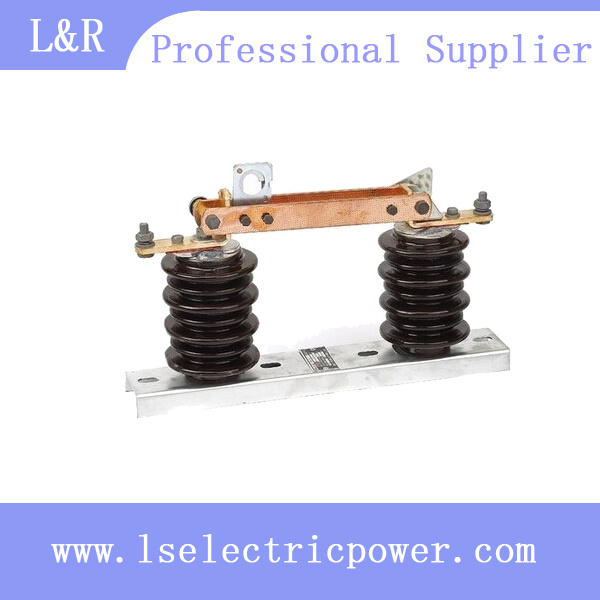

Name: Outdoor High-Voltage Disconnect Switch Hgw9-10/200A
Brand: all-electronics-online.com
SKU: 784837625
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGW9-10/200A and so on
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ODM And OEM:	Accept
Size:	Can Be Ordered
Brand Name:	L&R or as Per Clients' Requirements
Type:	High-voltage
Structure:	Double-column Disconnector
Installation:	Outdoor High-voltage
Grounding:	Single Ground
Brand:	L&R or as Customized

Product Description

Basic info.
Place of origin:Yueqing, Wenzhou, China
Life time:Durablepayment:L/C T/T
Usage:To be used in 10kv electrical system

TECHNICAL SPECIFICATION

Model No.	Rated Voltage (KV)	Rated Current (A)	4s thermal stability current (effective value) KA	Dynamic current (peak value) KA	Impulse Withstand Voltage (KV)		Power Frequency Withstand Voltage (KV)
Model No.	Rated Voltage (KV)	Rated Current (A)	4s thermal stability current (effective value) KA	Dynamic current (peak value) KA	To earth	Isolation break	To earth	Isolation break
HGW9-10/200A	10	200	6.3	16	75	85	38	42
HGW9-10/400A	10	400	12.5	31.5	75	85	38	42
HGW9-10/630A	10	630	20	50	75	85	38	42
GW9-10/200A	10	200	6.3	16	75	85	38	42
GW9-10/400A	10	400	12.5	31.5	75	85	38	42
GW9-10/630A	10	630	20	50	75	85	38	42

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
