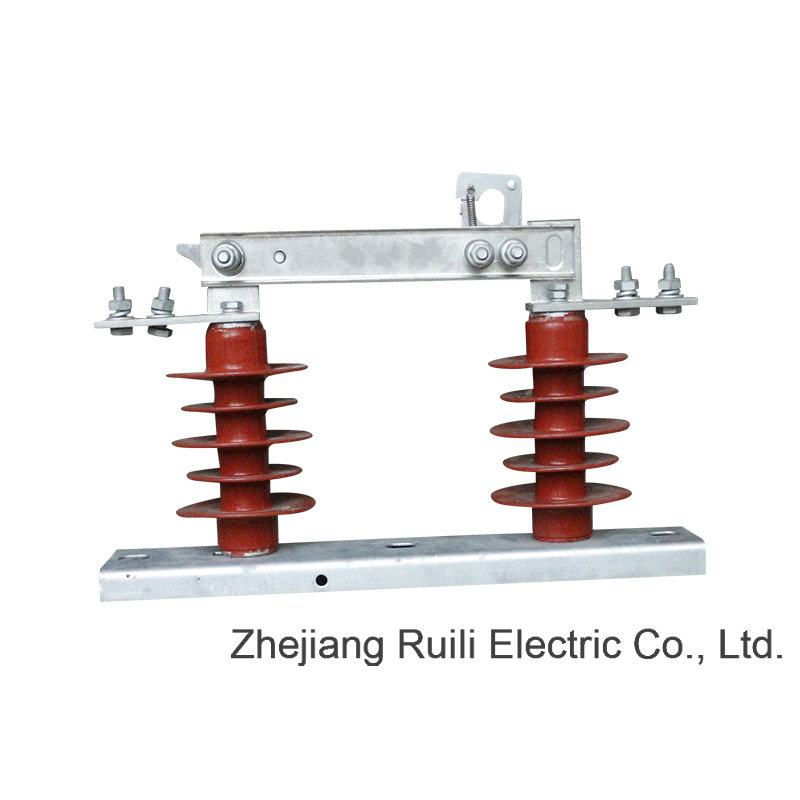

Outdoor High Voltage Polymer Disconnect Switch

Name: Outdoor High Voltage Polymer Disconnect Switch
Brand: all-electronics-online.com
SKU: 741745825
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	US $ 20-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW9-10W/15W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	High-voltage
Installation:	Outdoor High-voltage
Brand:	Ruily

Product Description

The GW Series of outdoor high voltage isolate switch is a Single-phase AC frequency 50 Hz high voltage switch equipment. The product is suitable for power system with rated voltage 10kV. It can connect or break the power system under the circumstances of with voltage and nomload. The switch is operated by using insulating rod.

Type		GW9-10W/15W
Rated voltage(kV)		12-15	12-15
Rated current(A)		400	630
4S Heat steady current(A)		12,500	12,500
Shock steady current(A)		31,500	31,500
Impulse withstand voltage(kV)	To earth	75	75
Impulse withstand voltage(kV)	Across the isolating distance	85	85
Power-frequency withstand voltage(kV)	To earth	38	38
Power-frequency withstand voltage(kV)	Across the isolating distance	42	42

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Our company bases itself upon high starting-point, high quality, high Level., carries out ISO9001 Quality Management System comprehensively, have established complete Quality Quarantee System. Our company have advanced Researching and Developing, Testing, Produce machines and also have a strong engineering technology team which establishe the steady foundation of guaranteeing the quality of our products. The products of composite insulator, fuse cutout, zinc oxide surge arrester and isolate switch are test eligible by Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P. R. Of China, and China National Centre for Quality Supervision and Test of Insulators and Surge Arresters.

And the products comform to international IEC61109, IEC60099-4, IEC600282-2, 291, 644, 787and national GB/T16927.1, GB/T8952 GB/T15166\15166.3 standards. Our products are widely sold domestic and abroad which export to South America, Africa, Middle East, Southeast Asia, etc.

Our company has complete sale, logistic, after-sales service and

Consultation system. Link with honest and credit, quality is first, satisfying

The requirement of cutomers is its own responsibility so as to make enterprise, society, workers harmoniously and uniformly.

"Ruili Electric" set up nice future with you together.
