Outdoor HV Cable Branch Box (DFT1-12 Type)
| Price: |
Negotiable/Set |
| Trade Terms: |
CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DFT1-12 Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Certification: |
SGS |
| Brand: |
Ville Industry |
Product Description
General:
DFT1-12 type outdoor HV Cable Branch Box is a new type power supply equipment that our company special designed, suitable for cable system of 10kV power supply net for cable user on user's cable connection or division, etc. It is much useful in places of small building area and in need of beautification, such as city street, industrial and mining enterprise, residential zone, high building, airport, wharf, etc.
Product feature:
Use loading switch as incoming wire switch, have clear distance point, and use on the safe side.
At side of incoming and outgoing wire, a fuse protection could be equipped, some cable plugs could be matched in cable connection.
Insulation meets the requirement of armor packed with 5 protection functions and easy operation.
Small occupying area, reliable wall installation, beautiful outlook, long service endurance.
Notice for order:
Please provide the followings:
A. Product name, type, scheme, quantity and delivery period;
B. Name, type, specification and quantity of electrical equipment inside cable branch box;
C. Please indicate specifications and materials of main busbar, if not, as per company standard;
D. Secondary circuit diagram.
| Series No. | Name | Unit | data |
| 1 | Rated voltage | kV | 12 |
| 2 | frequency | Hz | 50 |
| 3 | Rated current | A | 630 |
| 4 | Rated short time withstand current | kA/s | 20/3 |
| 5 | Rated peak withstand current | kA | 50 |
| 6 | 1min power frequency withstand voltage | kV | 42 |
| 7 | Lighting impulse withstand voltage | kV | 75 |
| 8 | Secondary circuit 1min power frequency withstand voltage | kV | 2 |
| 9 | Protection degree | | IP23 |

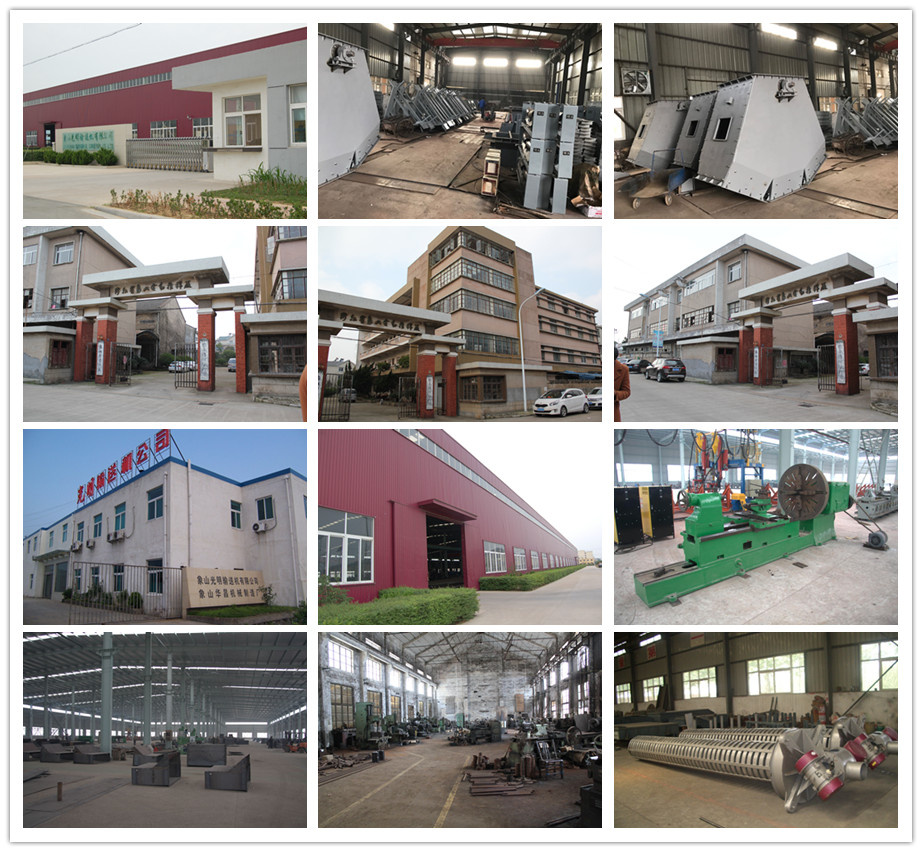

Our workshop
Our sales team
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
