Outdoor NSN to LC Duplex Waterproof Connector Single mode Cable Assemblies

Name: Outdoor NSN to LC Duplex Waterproof Connector Single mode Cable Assemblies
Brand: all-electronics-online.com
SKU: 724711512
Availability: InStock
Rating: 4.6 (130 reviews)

Price:	US $ 30-32/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-009
Mating Mechanism:	Bayonet
Ingress Protection:	IP-67
Mating Durability:	500 mating cycles
Cable Outside Diameter (OD):	5.0mm
Polish:	PC,APC
Test Wavelength:	1310/1550nm
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	NSN

Product Description

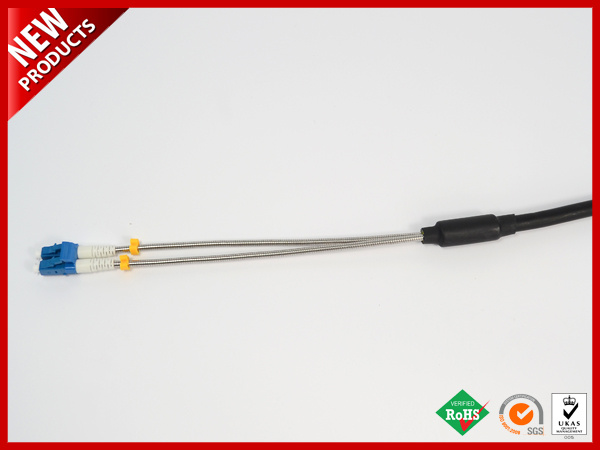

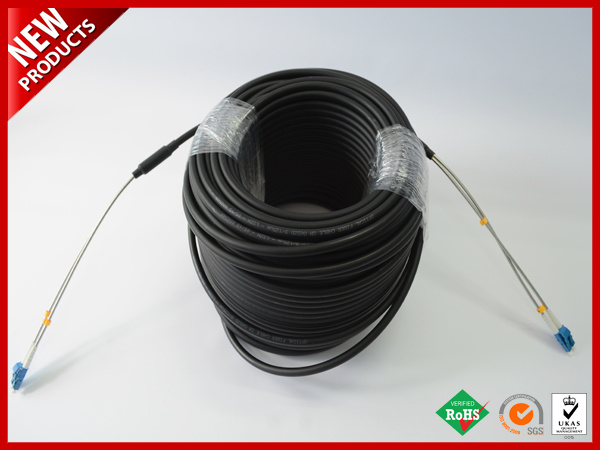

Outdoor NSN to LC Duplex Waterproof Connector Single mode Cable Assemblies

Technical Information:

We can provide this kind of NSN harsh environment cable assemblies which are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Application:

√ Fiber-to-the-Antenna (FTTA):
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast;
√ Automation and industrial cabling:
ODC provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse;
√ Surveillance systems:
Security camera manufacturers choose ODC connectors for its compact size and robust design. ODC assemblies are easy to install even in areas difficult to access and provide highest installation safety.

Specifications of Connector:

Connector Properties
Mating Mechanism	Bayonet
Ingress Protection	IP-67
Operating Temperature	-40ºC ~ +70ºC
Mechanical Performance	Straight pulling force 25 Kgs
Mating Durability	500 mating cycles
Jacket Color:	OS2 (G.652.D): Black OS2 (G.657.A2/B2): Black
Optical Properties
Connector Insertion Loss	0.35dB max LC/APC - OS2 both) 0.50dB max. (LC/APC - OS2 both)
Connector Return Loss	0.65dB min.
Physical Properties
Cable outside diameter (OD)	5.0mm
Connector cable retention	50N @ 0ºC 19.4N @ 90ºC
Connector durability	500 cycles
Bend radius, minimum:	1.6mm: 16mm 3mm: 29mm 900 micron: 9mm

Technical Polarity:

Basic Information:

Model	Single-mode	Multi-mode

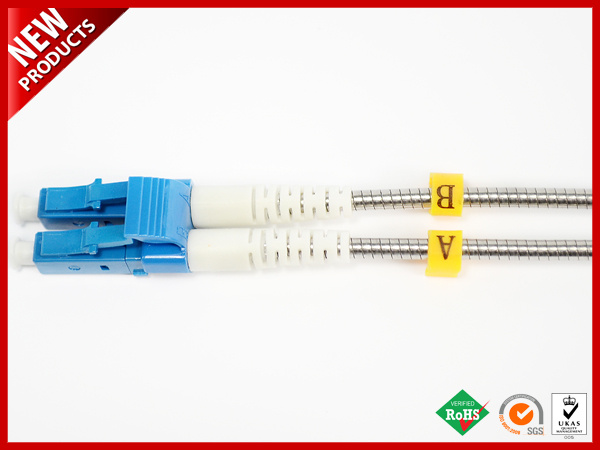

Connector A: NSN Connector B: LC, SC, ST, FC
Connector fiber count	2 Core
Polish	PC,APC	PC
Color	PC(Blue), APC(Green)	MM(Beige),OM3(Aqua)
Inserting Loss	≤0.2dB	≤0.2dB
Return Loss	PC≥50dBAPC≥60dB	≥35dB
Durability (500 Mating)	≤0.2dB
Test Wavelength	1310/1550nm	850/1310nm
