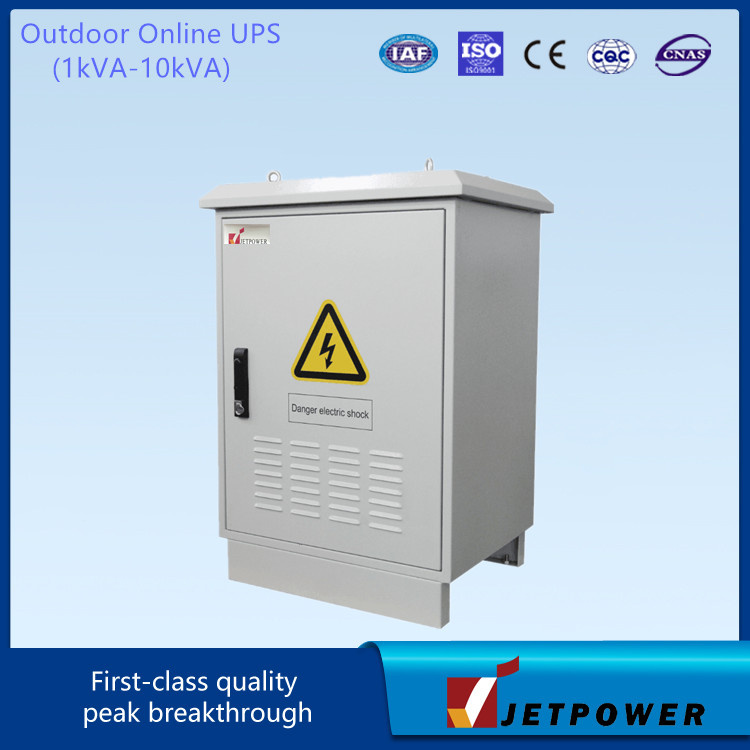

Outdoor Online UPS
| Price: |
US $ 800-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Mammoth series |
| Design: |
Online UPS |
| Wave Form: |
True Sine Wave |
| Input Voltage: |
220/230/240VAC |
| Output Voltage: |
220/230/240VAC |
| Battery Voltage: |
36-240VDC |
| Capacity: |
1kVA, 2kVA, 3kVA, 6kVA, 10kVA |
| Outlook: |
Tower |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overload |
| Brand: |
Jetpower |
Product Description

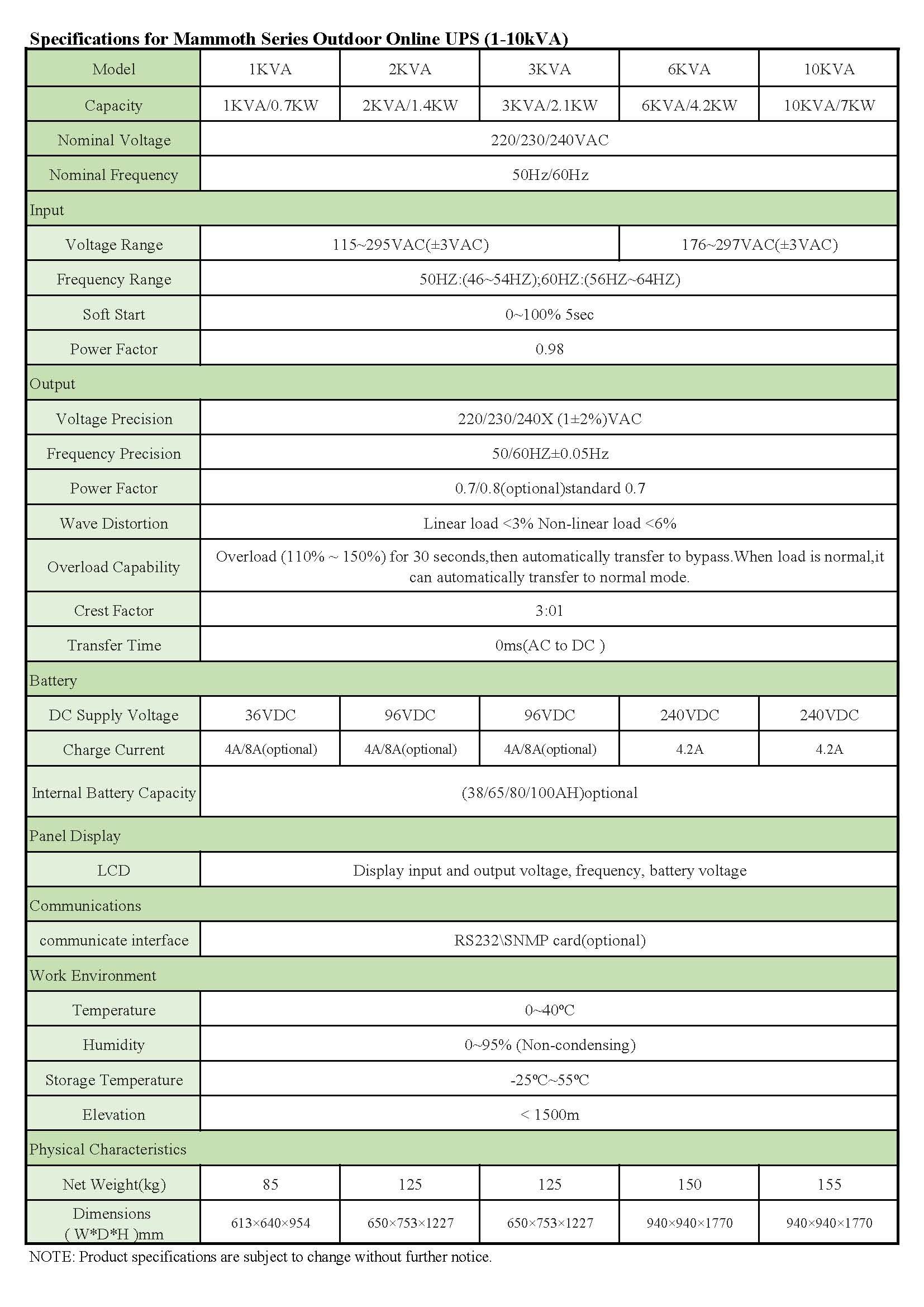

Mammoth series Outdoors online UPS Product snapshot: Capacity: 1~10kvaNominal voltage: 220/230/240VAC Nominal frequency: 50/60Hz Output power factor: 0.7 Key FeaturesJETPOWER Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.Reliable Power Rich ExperienceMammoth series communication marginal network outdoor UPS is special for wireless communication system of outdoor micro cellular base station and design of a high-performance integrated outdoor online uninterrupted power supply system, has the very high technology advancement and practicability.ApplicationThis UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (60 ° C) / low temperature (-10 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area. High Reliability of the UPS SystemUsing microprocessor control, directly produce highfrequency pulse width modulation wave (SPWM) control of the UPS inverter, to simplify the UPS control circuit, to improve the stability, to have more real-time UPS to quickly respond to changes in the external environment and guarantee the machine's control circuit is more simple and reliable.Using digital control techniques, to avoid the traditional analog control temperature drift inherent defects such as hardware parameters, to ensure consistency and reliability of UPS.Fine dust-proof, water-proof featuresAccording to the overall standard of design dust-proof and water-proof IP55With a sun protection, heat insulation, roof ventilationWith waterproof and the filtration dust inlet; The cabinet front door shutters with waterproof design, on the back of welding water tank, water tank installed above the net with quick release feature of the dust.Environmental AdaptabilityWide input voltage, avoids frequent switching to battery power because of large power grid voltage, reduce battery failure probability, adapt to the power environment in poor areas.Input Frequency Range 45 ~ 55Hz, to ensure the fuel generator can access all kinds of stability to meet user requirements for use on the oil machine.Optional aceessoriesHeat exchangerThe environment which require higher IP level, we use heat exchanger to effectively reduce the temperature of box inside and improve IP protection level.Heater and temperature controllerIn response to low temperature climate impact of batteries and UPS, we adopt ajustable heating device to ensure the UPS and battery life of normal use.

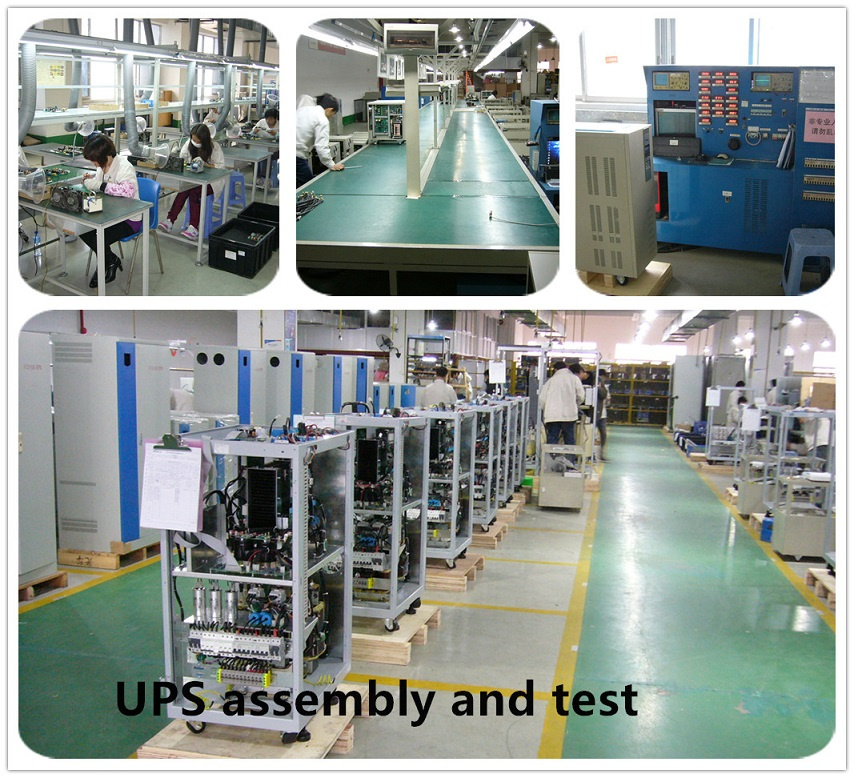

UPS Production:
Certificates:
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
