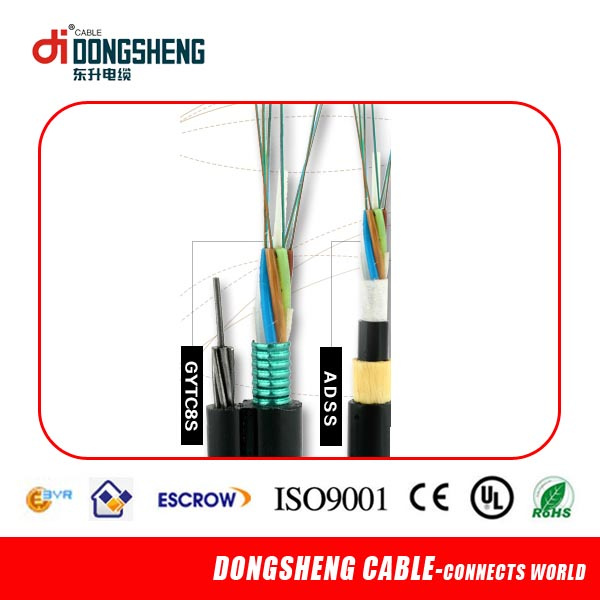

Outdoor Optical Fiber 2 Core FTTH Drop Cable

Prod Model:	DSC- 2 Core FTTH Drop Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Corning Figure 8 Optical Fiber Cable:	Indoor Optical Fiber Cable
Outdoor Fiber Optical Cable:	ADSS Fiber Optical Cable
FTTH Optical Fiber Cable:	Gyxtc8y Fiber Optical Cable
Gyxtc8s Fiber Optical Cable:	Fiber Optical Cabo
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Outdoor Optical Fiber 2 Core FTTH Drop Cable

2 Core FTTH Drop Cable

GYFTY Outdoor Fiber Cable

Cabo de fibra optica, Cavo in fibra ottica, Cable a fibres optique


Product Description
GYFTY Outdoor Sm 9/125 unarmored Fiber Cable
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
Main Technical Parameters


Fiber number	Cable diameter (mm)	Cable net weight (Kg/km)	Min. bending radius (mm)		Min. tensile strength (N)		Min. crush pressure (N/100mm)
			Static state	Dynamic state	Short term	Long term	Short term	Long term
42 and below	10.9	93	110	220	1500	600	1000	300
44~48	11.3	103	120	240	1500	600	1000	300
50~84	12.4	121	130	260	1500	600	1000	300
86~96	13.1	133	140	280	1500	600	1000	300
98~108	13.9	149	140	280	1500	600	1000	300
110~120	14.7	166	150	300	1500	600	1000	300
122~132	15.5	184	160	320	1600	600	1000	300
134~144	16.2	201	170	340	1800	600	1000	300
Operating temperature			-40~+60ºC

Specification
Packing: 2000m/wooden drum or 3000m/wooden drum, Customer's requirement also be welcom

Coring 2 core ftth drop cable

2 core ftth drop cable

Cabo de fibra optica, Cavo in fibra ottica, Cable a fibres optique
Main Type:
1. GYXTW          2. GYTA pipe           3. GYTS universal                                               4. GYTY53 aerial          5. GYTA53 direct-burial
 6. GYFTY Non-metallic                  7. GJFJV Indoor
 8. GYDGA ribbon slotted core    9. GYDTA(s) layer-stranded ribbon                   10. GYDXTW tube ribbon             11. ADSS
12. GYXTC8Y                                   13. FTTH                      14. GYXTC8S

FTTH Optical Fiber Cable  Application
Local Area Networks(LANS),Data processing networks,Instrument,Premise installations.
Specification

Mode	SM	MM
Polish	UPC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB	≤0.25dB
Return Loss	≥50dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times)
Vibration	≤0.2dB (550Hz  1.5mm)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB  (+25+65 93 R.H.100 hours)

 Ordering option

Boot (cable size)	Boot Color	Fiber Type	Cable number	Length
0.9mm 2.0mm 3.0mm	Black Green Brown	9/125um SM 50/125um MM 62.5/125um MM OM3 OM4	Simplex Duplex Multi-fiber	Customized

Cable dimension

Fiber Core	Outer size max, mm	Max. N.W.,kg/km
1	2.5mm x 5.5mm (± 0.2mm)	28
2	2.5mm x 5.5mm (± 0.2mm)	28
4	2.5mm x 6.5mm (± 0.2mm)	32


Packing: 2000m/wooden drum or 3000m/wooden drum, Customer's requirement also be welcom




Packing: 305m/wooden drum or 500m/wooden drum,
Customer's requirement also be welcomed
