Product Description

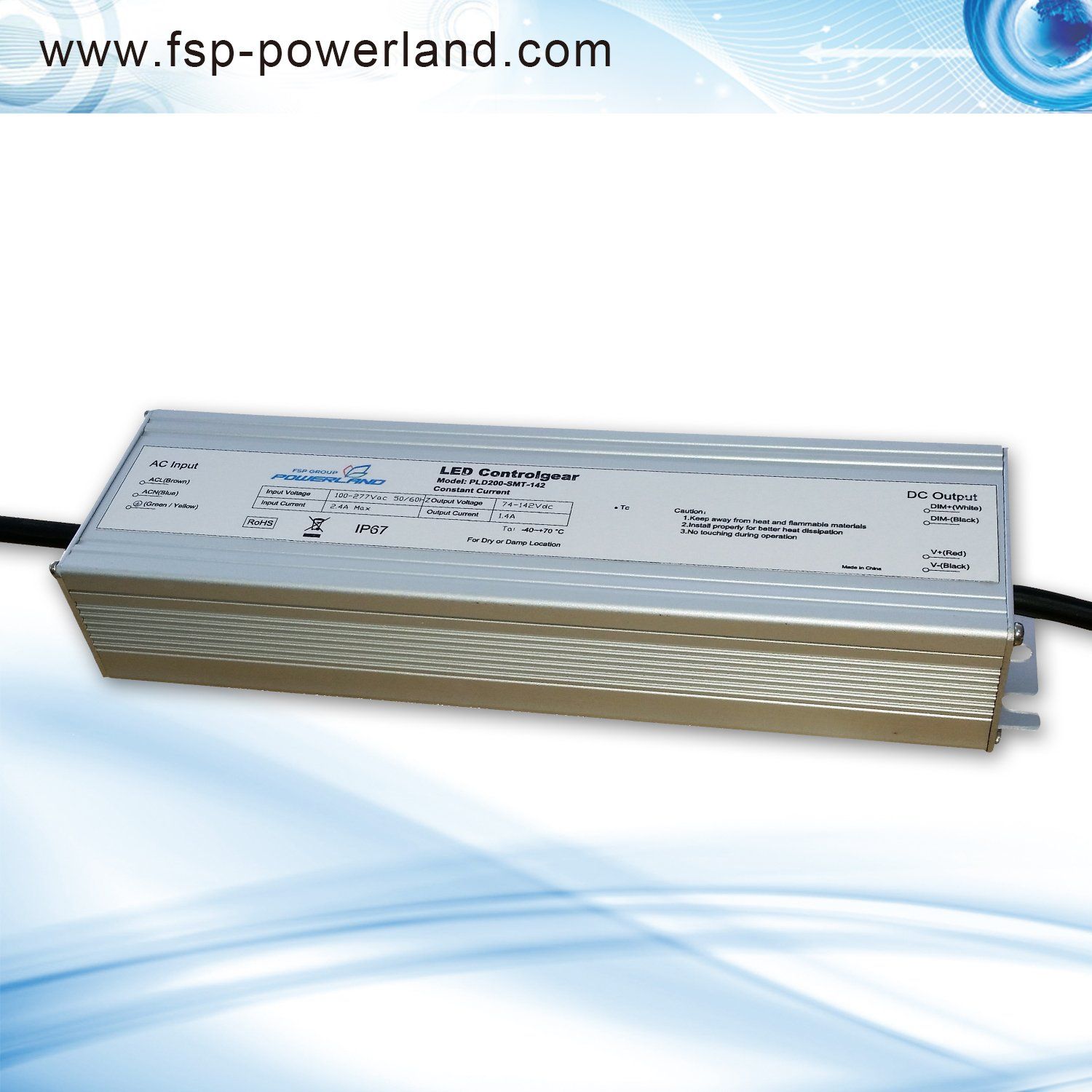

Outdoor Programmable Constant Current LED Driver 200W 3.2A
Powerland's PLD200-SMT-58 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 3.15A and designed for 0(0.05)-10V
/PWM/ Rset/Clock/DMX ultra-deep dimming applications.ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 200W | 29V
…
58V | 3.2A | 92.5% | 90ºC | 2.7A | 230W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.
FeaturesUltra-deep dimming dowm to 0.5% compatible with DMX(upon request)12V/100mA auxiliary output(optional)
Output current & output voltage programmable>
70,000 hours lifetime at 75ºC Tcase>
7 years warranty at 75ºC Tcase
IP67 ingress protectionMin. operating temperature @ -40ºCConstant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock,DMX(upon request) dimmingUniversal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit ProtectionElectrical Specifications | Model | PLD200-SMT-58 |
| Output Voltage | 29~58V |
| Output Current | 3.2A |
| Output AUX Power Voltage (Optional) | 12V |
| Output AUX Power Current (Optional) | 0-100mA |
| Dimming | 0(0.05)~10V, PWM, External Resistor, DMX (upon request) |
| Current Programmable | Yes |
| Output Power | 200W |
| Max. Current Ripple | 350mA |
| Max. Voltage Ripple | ±0.5% |
| Voltage Range | 90~305Vac |
| Frequency Range | 47~63Hz |
| Max. Input Current | 2.7A |
| Max. Input Power | 230W |
| Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
| Efficiency | 92.5% |
| Max. Open Circuit Voltage | 70V |
| THD | <20% @ 100-277Vac & 80~100% full load |
| Protections | OVP, OTP, OCP, SCP |
| Environmental Protection | UL Dry & Damp & Wet |
| Working Temperature | -40~+70ºC |
| Max. Case Temperature | 90ºC |
| Surge Protection | L-N 5.5kV, L/N-Earth 11kV |
| Agency Approbations | UL8750 |
| Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
| Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
| Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
| Dimension | 230x68x42.5 mm (9.06x2.68x1.67 inch) |
| Mounting Length | 242 mm (9.53 inch) |
| Overall Length | 256 mm (10.08 inch) |
| Weight | 1.45 kg (3.20 lb) |
| Life Time | >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

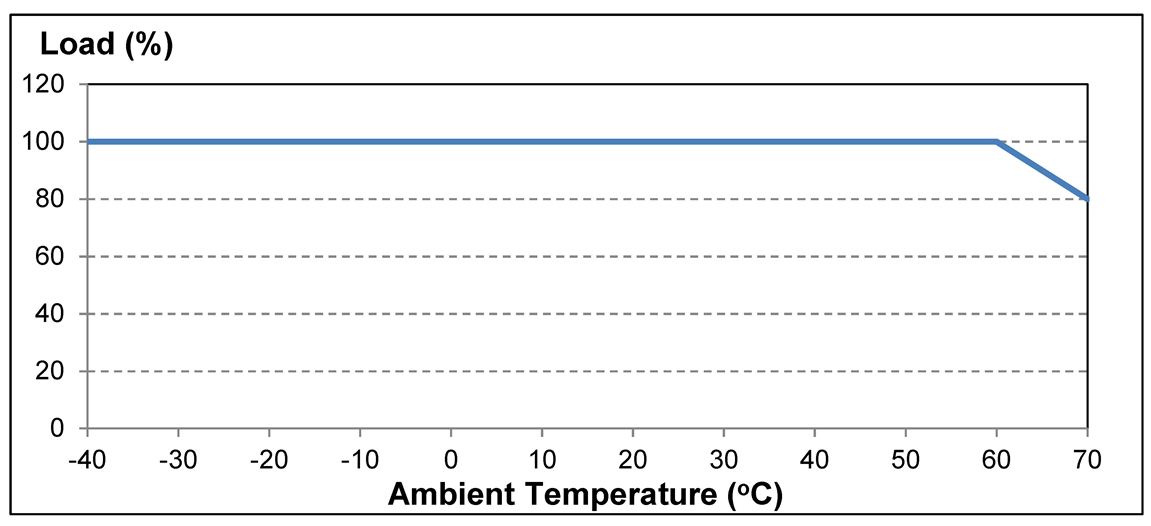

Dreating Curve
Electrical Specifications

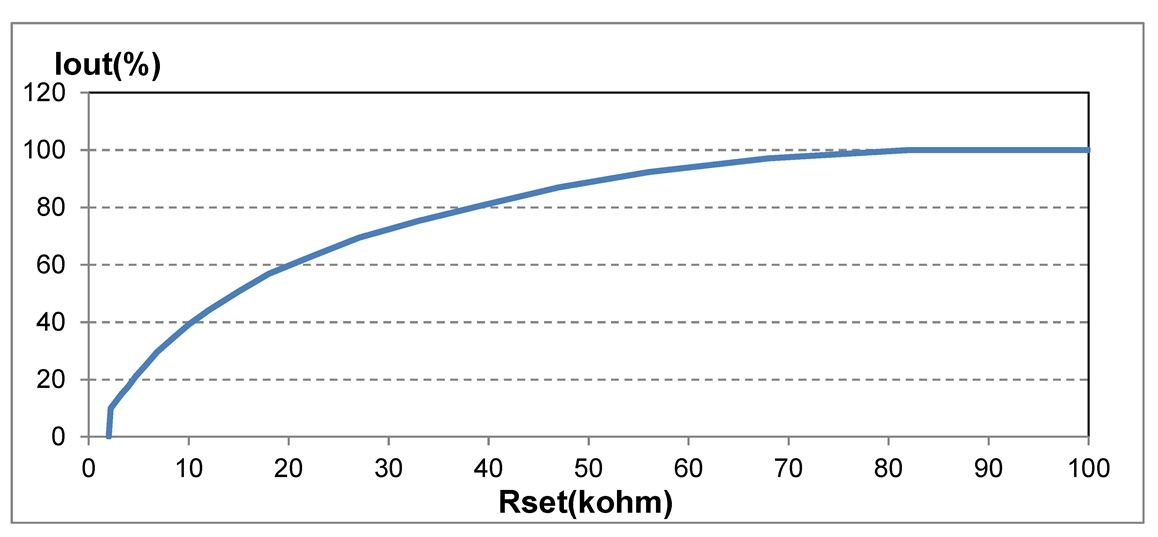

Output Current vs. External Setting Resistor
Performance Characteristics

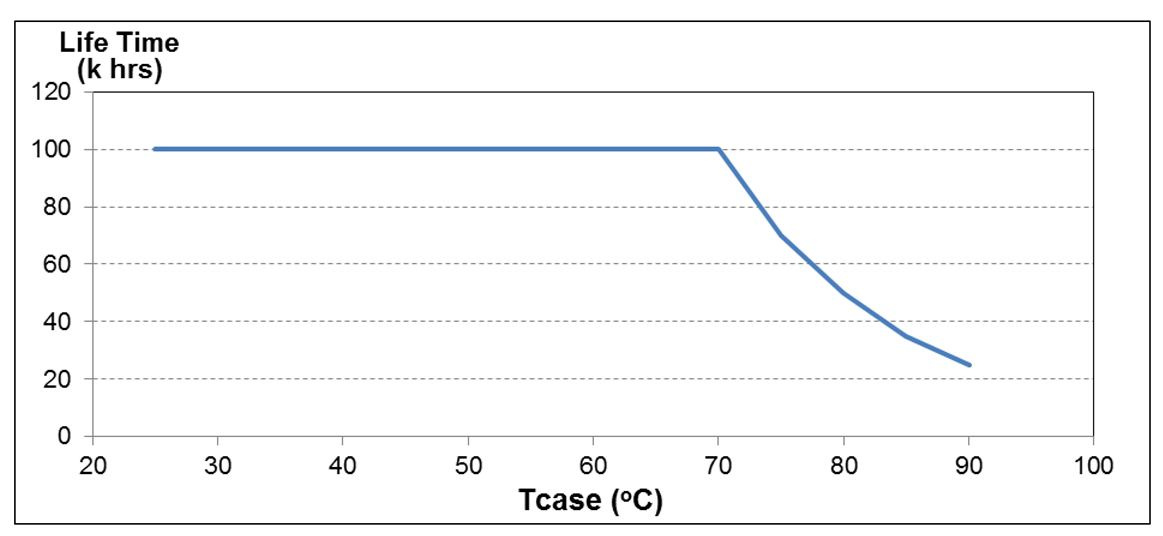

Life Time vs. Case Temperature
Performance Characteristics

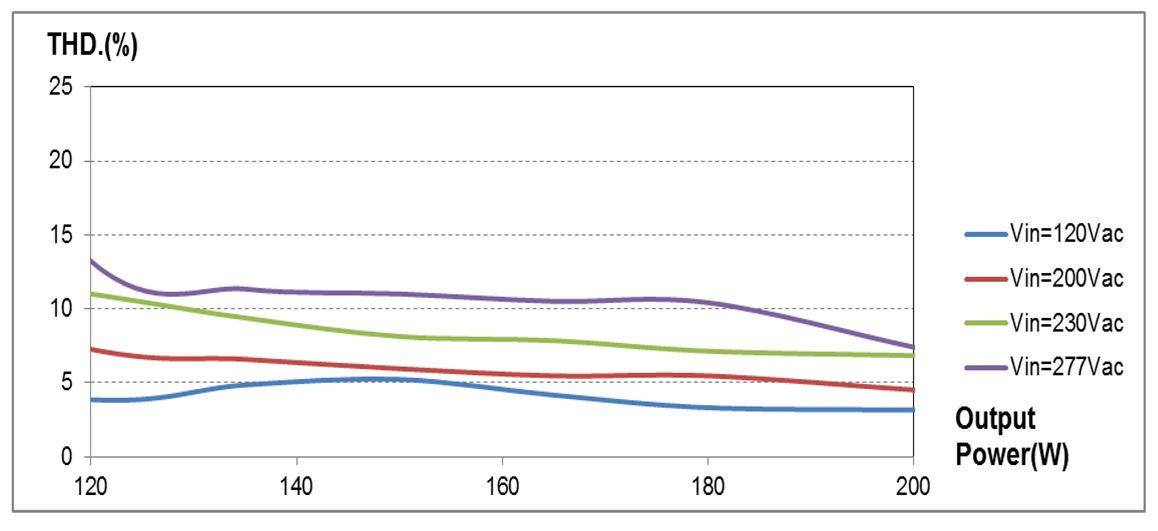

THD vs. Output Power

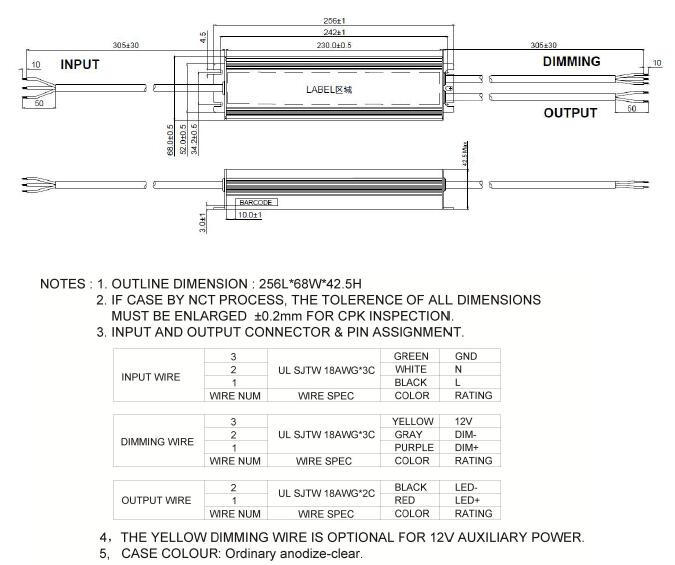

Mechanical Specification
