Outdoor Self-Supporting Optic Fiber Cable

Name: Outdoor Self-Supporting Optic Fiber Cable
Brand: all-electronics-online.com
SKU: 748133115
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	US $ 0.65-0.8/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Core:	12/24 Core
Drum:	2km/Drum
Application:	Communication
Certification:	ISO9001
Type:	Sm, mm
Material Shape:	Eight Line Cable
Brand:	Geyida
Sheath Material:	PE

Product Description

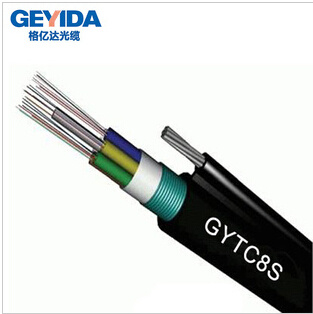

Outdoor Self-Supporting Optic Fiber Cable

Feature
1. Heigh tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost;
2. Good mechanical and temperature performance.
3. Heigh strength loose tube that is hydrolysis resistant;
4. Specially tube filling compound ensure a critical protection of fiber PE sheath protects cable form ultraviolet radiation;
5. Single fiber reinforoad plastic as the central streng member;
6. Loose tubs filling compound;
7.100% cable filling core filling;
8. Steel moisture barrier.

Options:
Fiber Tyoe: G. 652, G. 655 or G. 657 single-mode fiber, A1a or A1b, OM3 or OM4 multi-mode fiber, or other types of fiber;
Jacket Material: Environmental low smoke zero halogen flame retardant polyolefin(LSZH) or other color of the clients' requirement, environmental halogen flame retardant polyolefin(ZRPO), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

Fiber count	tubes	fillers	Cable size	Cable weight KG/KM	tensile		Crush			bending radius static
					Long term	Short term		Long term	Short term	Long term	Short term
12	2	3	9.5*18.3	218	600	1500		300	1000	10D	20D
24	4	1	9.5*18.3	218	600	1500		300	1000	10D	20D
