Outdoor Split Core (clip on) Current Transformer 5A

Name: Outdoor Split Core (clip on) Current Transformer 5A
Brand: all-electronics-online.com
SKU: 710114115
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	US $ 9-15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCT-T10/ T16/ T24/ T36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	1A or 5A
Application:	Split Core Current Transformer
Type:	Current Transformer
Phase:	Single

Product Description

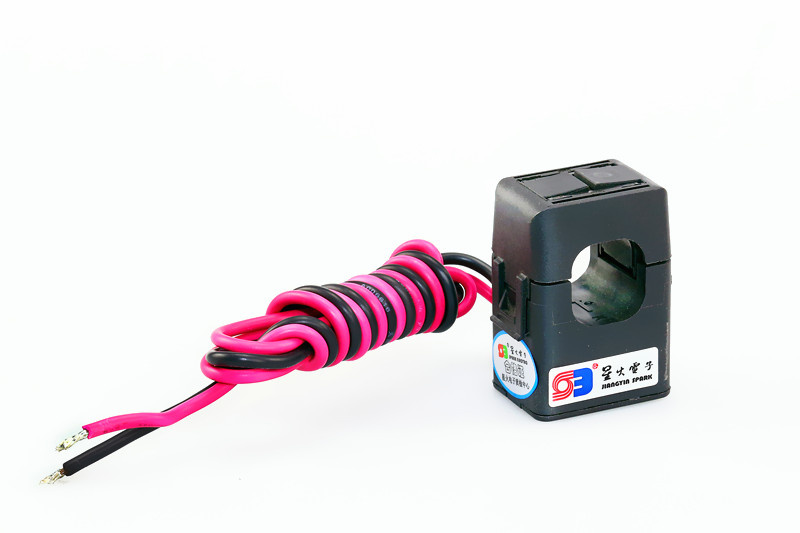

Outdoor split core (clip on) current transformer
Features:
Small size, low cost, waterproof. Indoor and outdoor application
High secondary turns
Secure locking hinge

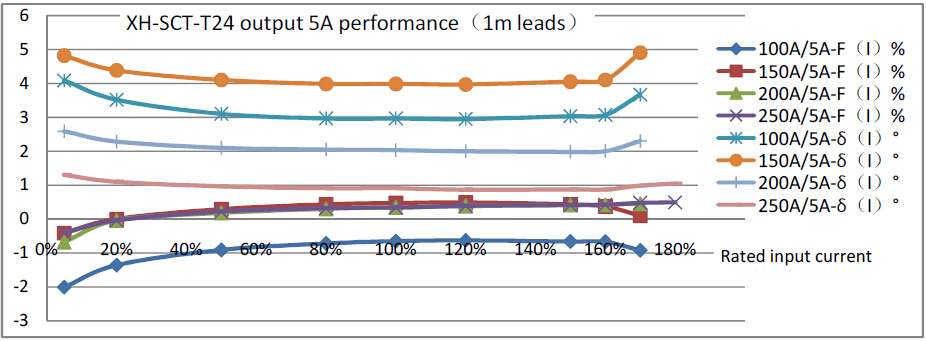

XH-SCT-T24B 5A output split core CTs

SPECIFICATIONS:
1,Standard :GB1208 and IEC60044-1
2,Rated Voltage:0.66KV;
3,Insulation Voltage:2KV;
4,Rated Frequency:50H or 60HZ;
5,Operating Temperature:-15ºCto 45ºC.
6 ,Certificates:CE

FEATURES::
1,Small cost
2,Split core design ,Easier installation
3, 1A or 5A at secondary output

Welcome to JIANGYIN SPARK

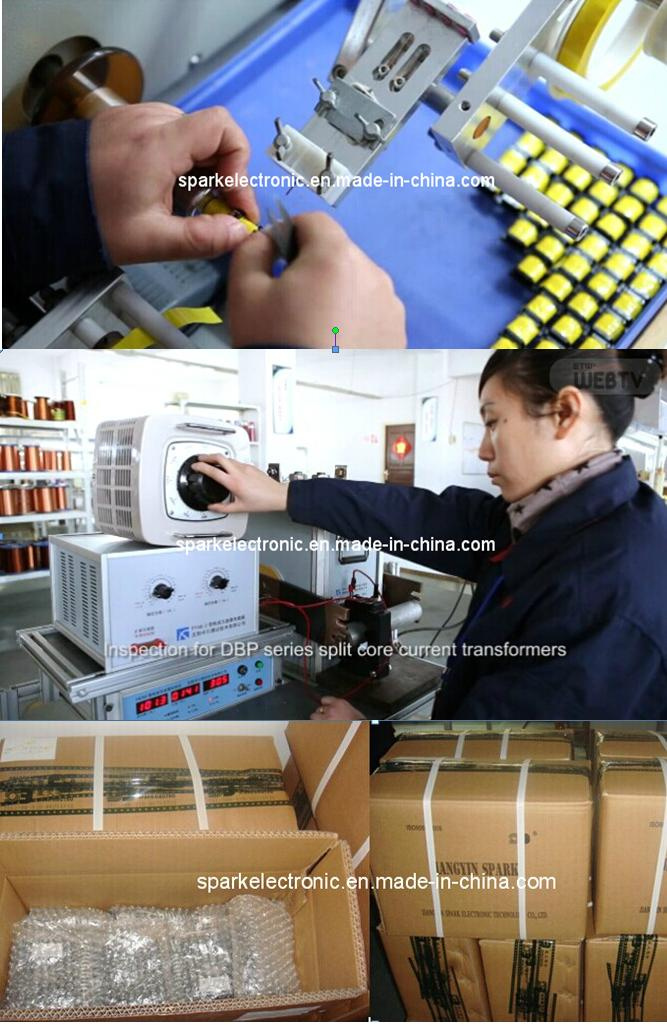

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
