Outdoor Split Core Current Transformer 5A Secondary Output

Name: Outdoor Split Core Current Transformer 5A Secondary Output
Brand: all-electronics-online.com
SKU: 723790272
Availability: InStock
Rating: 4.9 (27 reviews)

Price:	US $ 10-100/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZCK-55
Standards:	IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006; an
Accuracy Class:	0.5s, 0.5%, 1%, 3%
Range Of Primary Rated Current:	100-1500A
Range Of Rated Load:	≤10va
Rated Frequency:	50/60Hz
Rated Secondary Current:	5A or 1A
Safety Factor Rating:	(Fs) <10
Output Signal:	1A, 5A, 333mv, 1V or 5V(Customized)
Cable Length:	2.5m, 5m, 10m(Customized)
Aperture (mm):	Φ55
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

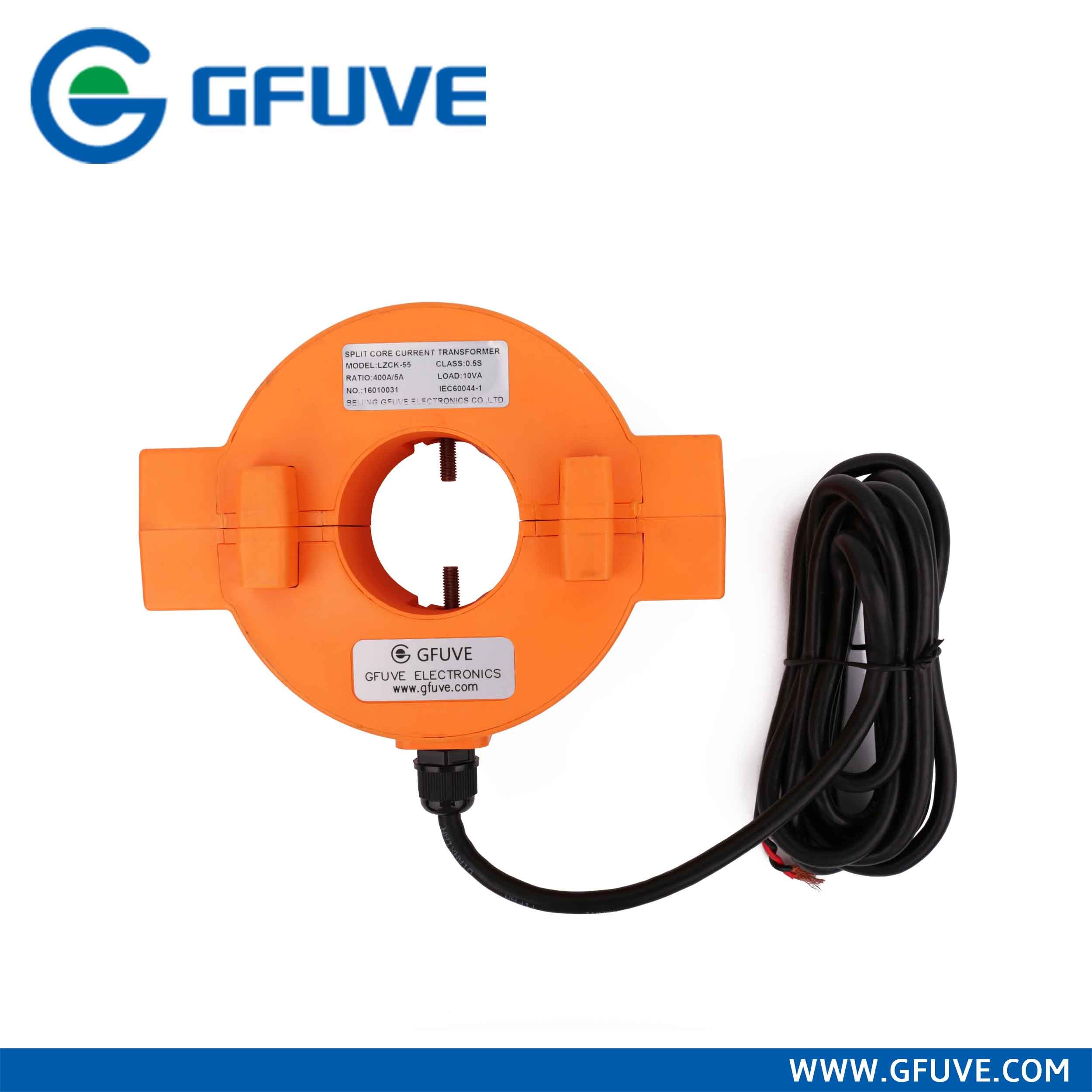

LZCK-55 outdoor split core current transformer 5a secondary output

LZCK series current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is ﬂame retardance anti-moisture, stable performance, no maintenance.

Corriente térmica de corto tiempo nominal	40kA, 1S
Corriente térmica continua nominal	150%I1n
Voltaje de resistencia secundaria de la frecuencia de la energía del arrollamiento	3kV, 1min
La altura del nivel del mar	0- 3000m
Clasificación del factor de seguridad	(FS) <10
Señal de salida	1A, 5A, 333mV or Personalizado
Clase de aislamiento	E
Longitud del cable	2,5 M (estándar), 5M, 10M o personalizado
Condiciones	No hay existencia de gas severamente begrimed, erosivo y radiactivo en el aire. Se permite un trabajo continuo bajo la corriente nominal.
Peso (kg)	2
Color	Negro, naranja o personalizado
Temperatura de funcionamiento	-40°C to +70°C
Temperatura de almacenamiento	-40°C to +70°C
Protección de ingreso	IP68 ( IEC 60529

Modelo	Rango de corriente nominal primaria	Rango de carga nominal	Apertura (mm)	Descripción (mm)	Peso (kg)
LVZCK-36	100-600A	≤10VA	Φ36	128×120×84	1.2
LZCK-36	100-1000A	≤10VA	Φ36	128×120×84	1.5
LZCK-55	100-1250A	≤10VA	Φ55	180×138×52	2

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
