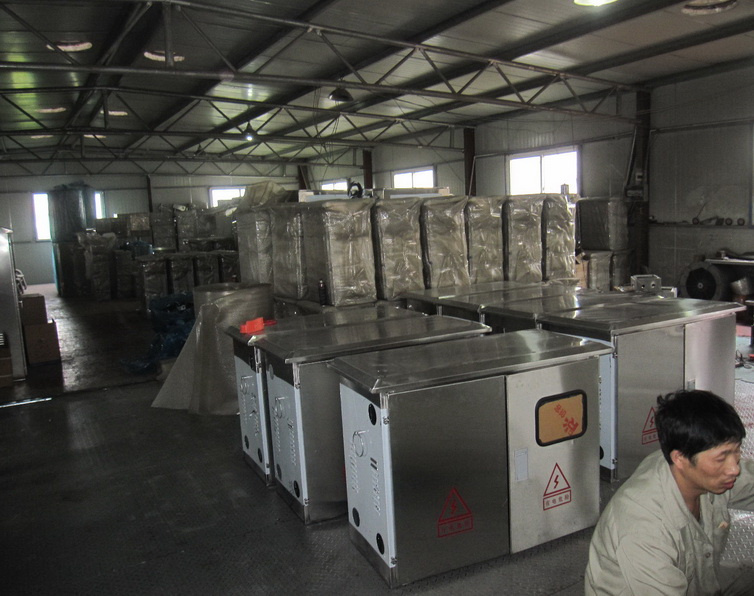

Outdoor Stainless Steel Power Distribution Box P806020

Product Description

Outdoor stainless steel power distribution box  P806020

Model No.:P806020
Size(H*W*D. mm): 800*600*200
Protection Level:  IP55
Type:  Outdoor Distribution Box
External Size:  customization available
performence:  corrosion resisting, Antistatic and impact resistance
working style:  fully enclosed operation

material:  stainless steel/Galvanized Steel  process:  Stamping/Machining/Shearing/Welding/Screwing/Drilling/Bending/Riveting
thickness:  1.2-2mm
surface treatment:  spraying and zine-plated  certificate:  ISO9001/IEC/CCC
service:  OEM available

Packaging Detail: standard export packing or customized
Delivery Detail: According to detailed order.

Specifications:
1. rated voltage up to 500V
2. rated curret up to 100A
3. AC 50HZ
4. flame-proof type
5. high quality 304 stainless steel

Introduction:
1. Distribution box is the protection device of dynamic, lighting system and motor control circuit, whose AC frequency is 50HZ-60HZ,rated voltage is up to 500V and rated current is up to 100A.

2. It serves as power distribution device of modern constructions, including industrial and civil construction, industrial and mining enterprises construction, High-rise building, station, hospital and dwelling house.

Installation condition:
1. class1 district, class2 district dangerous places
2. class IIB, explosive gas environment with temperature classes T1-T4
3. adapting to places filled with flammable dust(district 20,21,22)

Features:
1. this product is flame-proof type electric equipment,which is divided into flame-proof type main cavity and wiring chamber. It adopts high quality 304 stainless steel, owning many excellent performances such as artistic outline, corrosion resisting, Antistatic and impact resistance.

2. the cover is equipped with the special operating mechanism to achieve fully enclosed operation.

Processing:
Laser Cutting, CNC Punching, CNC Shearing, CNC Bending, Stamping, Punching, Milling, Drilling, Mig,Tig Welding, PEM insertion, Assembly. Or as your special requirement

Material:
Stainless Steel, Aluminum alloy, Galvanized Steel, etc.

Main technical parameter:
1. Rated voltage 220V/380V
2. Rated current 20A/60A/100A/400A
3. AC 50HZ
4. High quality 304 stainless steel
5. Protection class: IP55
