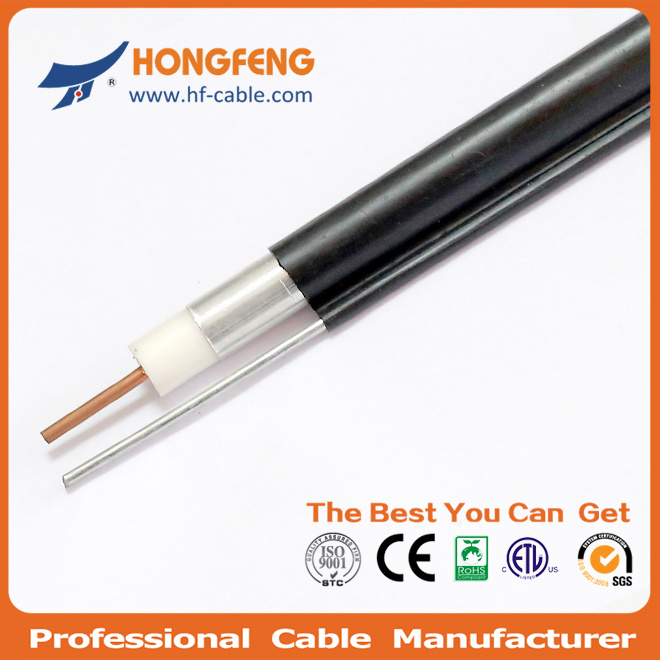

Outdoor Trunk Cable Rg320 Coaxial Cable

Prod Model:	RG320 cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance:	75 Ohms
First Shield:	Bonded Al. Foil
Second Shield:	Al. Braiding/Bc/Tc Braiding
Sheath:	PE Jacket
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	ETL
Type:	Coaxial Cable

Product Description

Specification:

1.8CCA+7.47 FPE+8.13 AL-TUBE+10.03PE/PVC

Description:
1) inner conductor: 1.8mm CCA
2)Dielectric: 7.47 Gas expanded polyethylene
3)AL: 8.13mm Solid Aluminium tape
4)Jacket: 10.3 mm PE black
5)Packing: 500 meter/ Drum

APPLICATION
These cables are developed for wideband network systems. They have highest levels of security and flexibility while at the same time lower attenuation values when compared with the customary cables.

Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg179, rg213, rg214, rg316, rg393, rg402, etc.;

2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, etc.;

3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;

4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;

5) LMR SERIES: LMR200, LMR400, LMR600;

6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;

7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.

Beldin
Hangzhou Hongfeng Cable Co., Ltd.
http://www.hf-cable.com
Tel: +86-18268847560
Fax: +86-571-63816227

1) Construction Center Conductor: 1.80 + 0.01mm Solid Copper/Copper Clad Aluminum Dielectric: 7.47 + 0.05mmFoam PE Outer Conductor: 8.13mm Aluminum Tube Outer Conductor Thickness: 0.34mm Jacket: 10.03 + 0.05mm PVC / PE Jacket Wall Thickness: 0.89mm Jelly/APD Per Customer' Special Requirement 2) Characteristics Impedance: 75 + 3 Ohm Capacitance: 50 + 3nF/km, 15.3 + 1pF/ft Velocity of Propagation: 87%
3) Attenuation
Attenuation [@68 o F. (20 o C. )] Frequency (MHz) Maximum (dB/100 ft. ) Maximum (dB/100 m) 5 0.24 0.79 50 0.80 2.62 108 1.22 4.00 150 1.45 4.76 193 1.65 5.41 250 1.86 6.10 300 2.04 6.69 350 2.25 7.38 400 2.38 7.81 450 2.52 8.27 500 2.72 8.92 550 2.85 9.35 600 2.98 9.78 750 3.15 10.86 1000 3.89 12.76
