Outdoor Unitube Light-Armored Optical Fiber Cable

Name: Outdoor Unitube Light-Armored Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 684566302
Availability: InStock
Rating: 4.5 (46 reviews)

Price:	US $ 0.2-0.3/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Dimension:	8.0mm
Outer Material:	PE MDPE or HDPE
Loose Tube:	PBT
Strength Member:	Steel
Fiber Type:	G652D, G657A1
Application:	Duct or Aerial
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Fiber Optic
Brand:	Neutral
Sheath Material:	PE

Product Description

Outdoor 8 Cores Unitube Light-Armored Optical Fiber Cable-GYXTW

Description

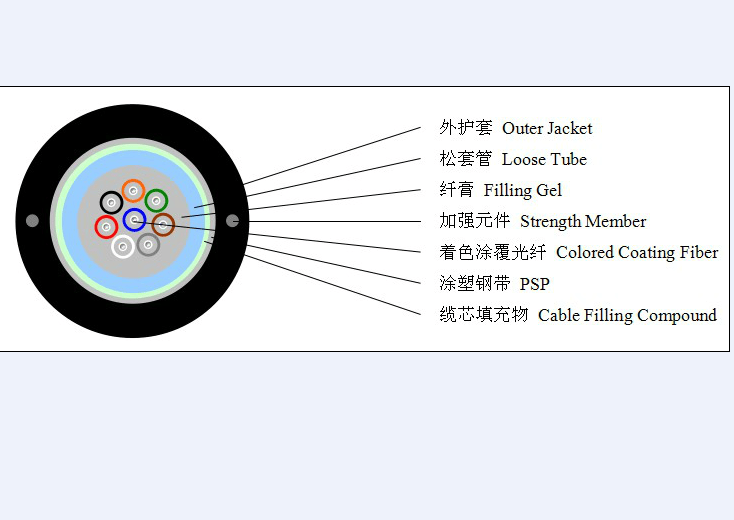

The fibers, are posotioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally.Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertige. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Features
1. Good mechanical and temperature characteristics.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber;
4. Crush resistance and flexibility;
5. PSP enhancing moisture-proof;
6. Small diameter, light weight and friendly installation.
7. Long delivery length

Note:
A.Suffix Xn denotes fiber type
B.The colour arrangements of fiber and tube ara specified in the colour identification table
C.The nominal value of the PE sheath minimum thickness outside of the strength member is 0.8mm
D.The steel tape is not corrugated in the cable with 12 fibers below.If the corrugated steel tape is request, it should be specified in contract.

Mechanical and Environmental

Items	Unite	Specifications
() Tension(Long Term)	N	400
() Tension(Short Term)	N	800
() Crush(Long Term)	N/10cm	300
() Crush(Short Term)	N/10cm	1000
() Min. Bend Radius(Dynamic)	mm	20D
() Min. Bend Radius(Static)	mm	10D
Installation Temperature		-20~+60
Operating Temperature		-40~+70
Storage Temperature		-40~+70
