Outdoor UTP Cat5e/CAT6 Cable with Good Waterproof Jacket PE

Name: Outdoor UTP Cat5e/CAT6 Cable with Good Waterproof Jacket PE
Brand: all-electronics-online.com
SKU: 609305314
Availability: InStock
Rating: 4.5 (39 reviews)

Price:	Negotiable/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	D106
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Type:	Cat 5
Certification:	UL

Product Description

Waterproof cat5e/cat6 Outdoor LAN Cable

Structure:
Bare copper, PE insulation, FR PVC/LSOH PVC RoHS jacket
Standards:
ISO/IEC11801, ANSI/TIA/EIA-568B

Application:
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP-PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc

Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Electrical Charateristics		UTP CAT5E		FTP CAT5E
Impedance(Ohm)		100±15		100±15
velocity of Propagation		70		70
Minimum Return Loss(dB)		≥ 23		≥ 23
Frequency Attenuation(dB/100m)		NEXT	PS-NEXT	ELFEXT	PA-ELFEXT
1 MHz	2.0	62.3	65.3	63.8	60.8
4 MHz	4.1	53.3	56.3	51.7	48.7
10 MHz	6.5	47.3	50.3	43.8	40.8
16 MHz	8.2	44.3	47.3	39.7	36.7
20 MHz	9.3	42.8	45.8	37.7	34.7
31.25 MHz	11.7	39.9	42.9	33.9	30.9
65.5 MHz	17.0	35.4	38.4	27.8	24.8
100 MHz	22.0	32.3	35.3	23.8	20.8

Established in 1992, Ningbo Fulsan Trading Co., Ltd. is a modern enterprise specialized in research, develop and produce all kinds of telecommunication products. It's main products include HDMI cable, Scart Cable, computer connector, Audio and Video Cable, USB cable, and other accessories. The products are totally exported to the world market especially to US., Europe, Middle East Asia, Russia and has earned high reputation from our customers.

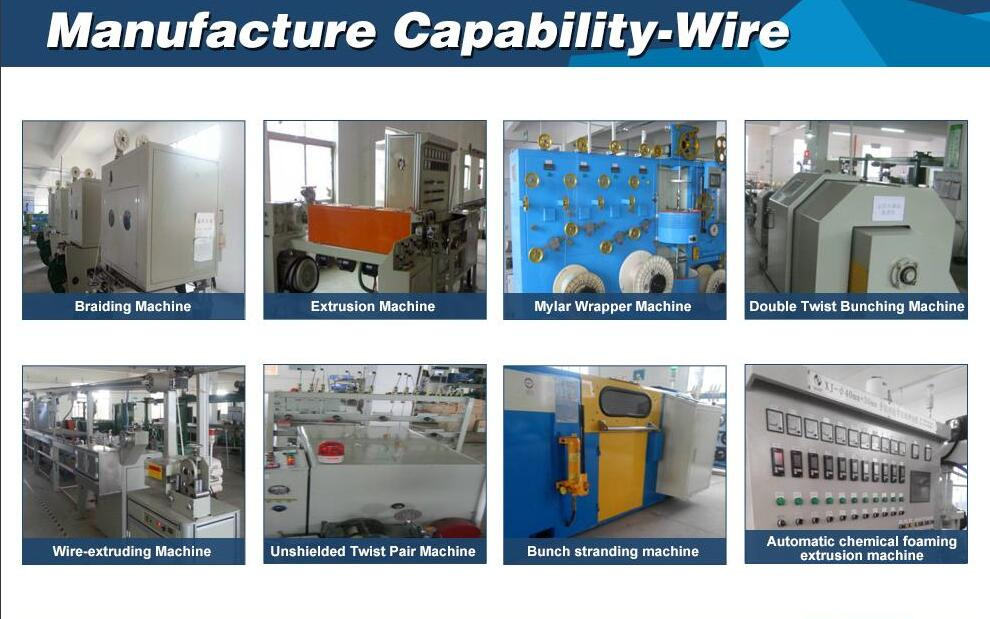

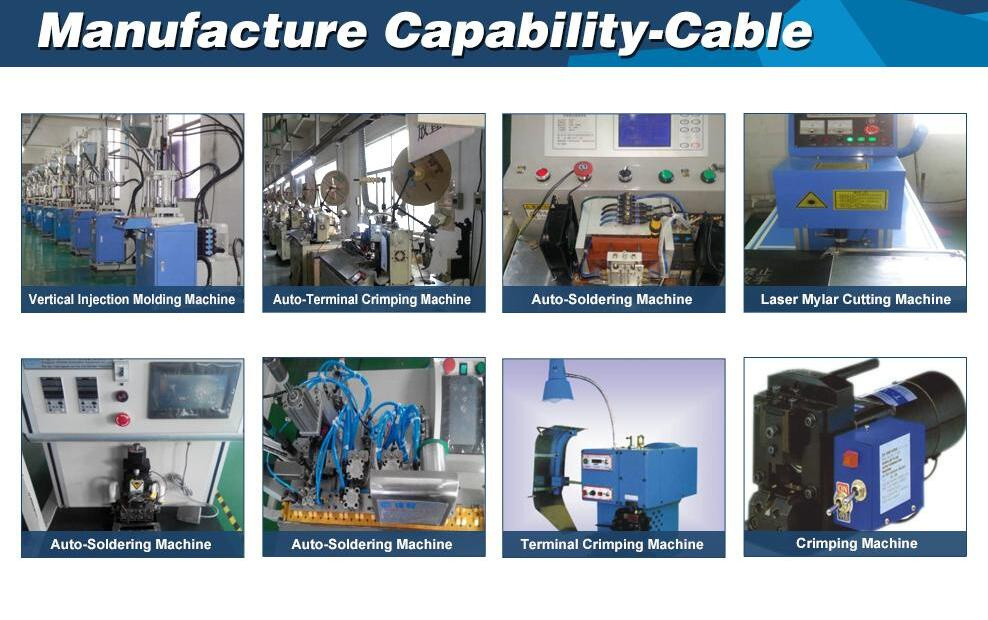

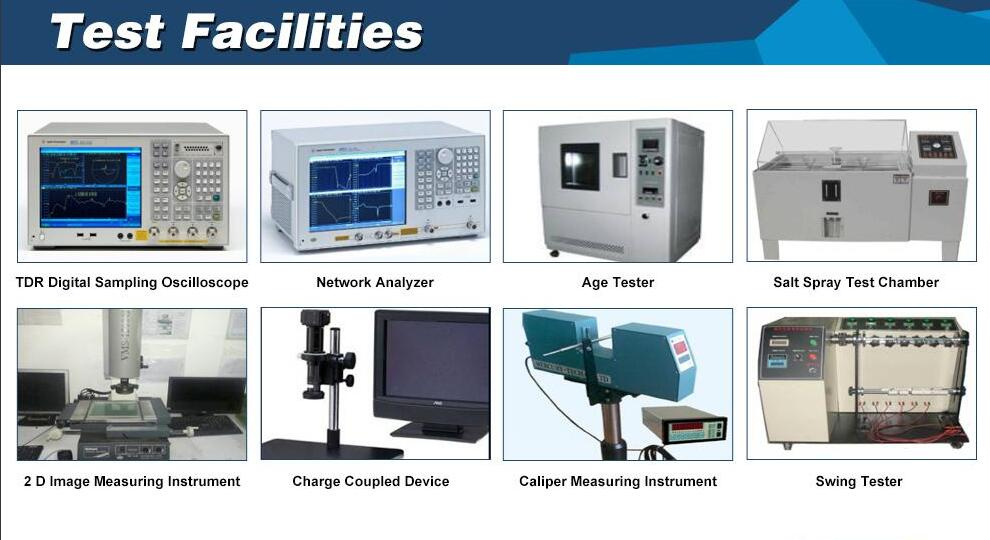

The company owned well-trained and skillful personnel, including outstanding engineer and technician team and managers and quality control team as well as 1200 workers. The company occupied 200, 000 sqms working area and has introduced many modern and advanced manufacturing machines and inspection equipment. The total assets has reached 52 million and was honored as Hi-Tech Enterprise and Strenth model factory by Zhejiang Government.

The principle of our company is " Guided by science and technology, take production and quality as the foundation, investment and management as the guarantee, with the backing of brand and marketing for omnidirectional development"...The company has passed the certification of ISO9001quality system and ISO14001 environment system. All the products are accordance with RoHS Standard while the HDMI cable also got the HDMI Association certification. Our brand " FULSAN" Has won a good reputation among our customers.

Looking into the future, we will always adhere to the managing idea of " Developing the industry, serving and repaying the society". We are willing to advance hand in hand with friends from all walks of life for mutual benefit.
