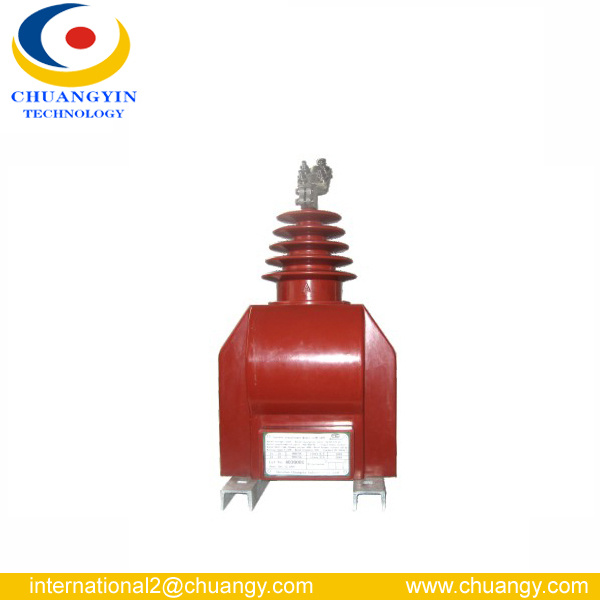

JDZXW-24TH Outdoor Voltage Transformer

Description
JDZW-24TH voltage transformer, single-phase epoxy outdoor resin casting and fully enclosed construction, is used for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 24kV. The model can be operated under polluted conditions such as coastal areas, hoarfrost, UV radiation, humid tropical etc.

Technical parameter

Type	Rated primary voltage (kV)	Rated secondary voltage (kV)	Accuracy class or accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZXW-24TH	12	0.12	0.2	30	800	24/50/125
			0.5	60
	23/1.738	0.11/1.738/0.11/3	0.2/6P(3P)	20/100	600
			0.5/6P(3P)	50/100
			1/6P(3P)	100/100

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

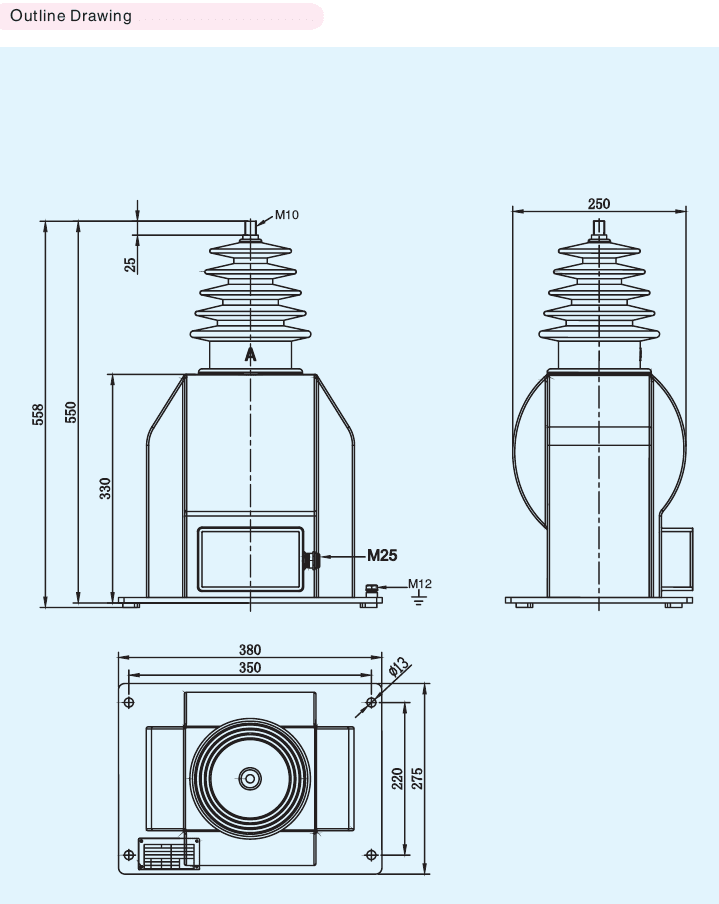

Outline drawing

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
