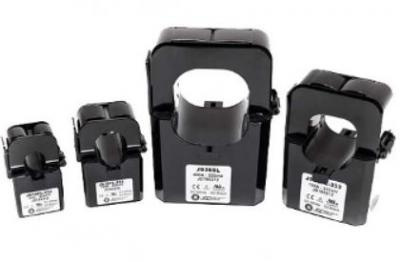

Outdoor Waterproof Split Core CT Current Transformer Primary Rated Current 100~1200A

Name: Outdoor Waterproof Split Core CT Current Transformer Primary Rated Current 100~1200A
Brand: all-electronics-online.com
SKU: 839264005
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 2/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H-CT005-10D
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

APPLICATION	SPECIFICATIONS
Current Measurement	Standard Input Current 0.5-150a
Electrical load monitoring	Frequency 50hz-400hz
Energy and sub-metering products	Custom design turns-ratio available
Network equipment	Standard accuracy 0.5
Instruments and sensors	Approximate weight 100g
Control systems	Clamping voltage on selected models
Go GREEN initiatives	ANS C57.13 and C12.20 Standards

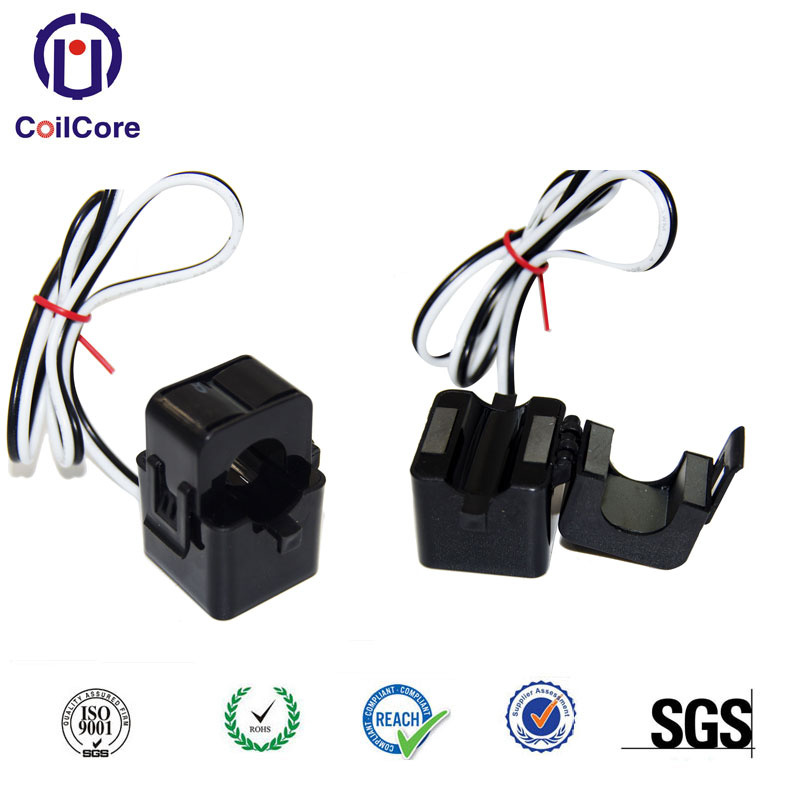

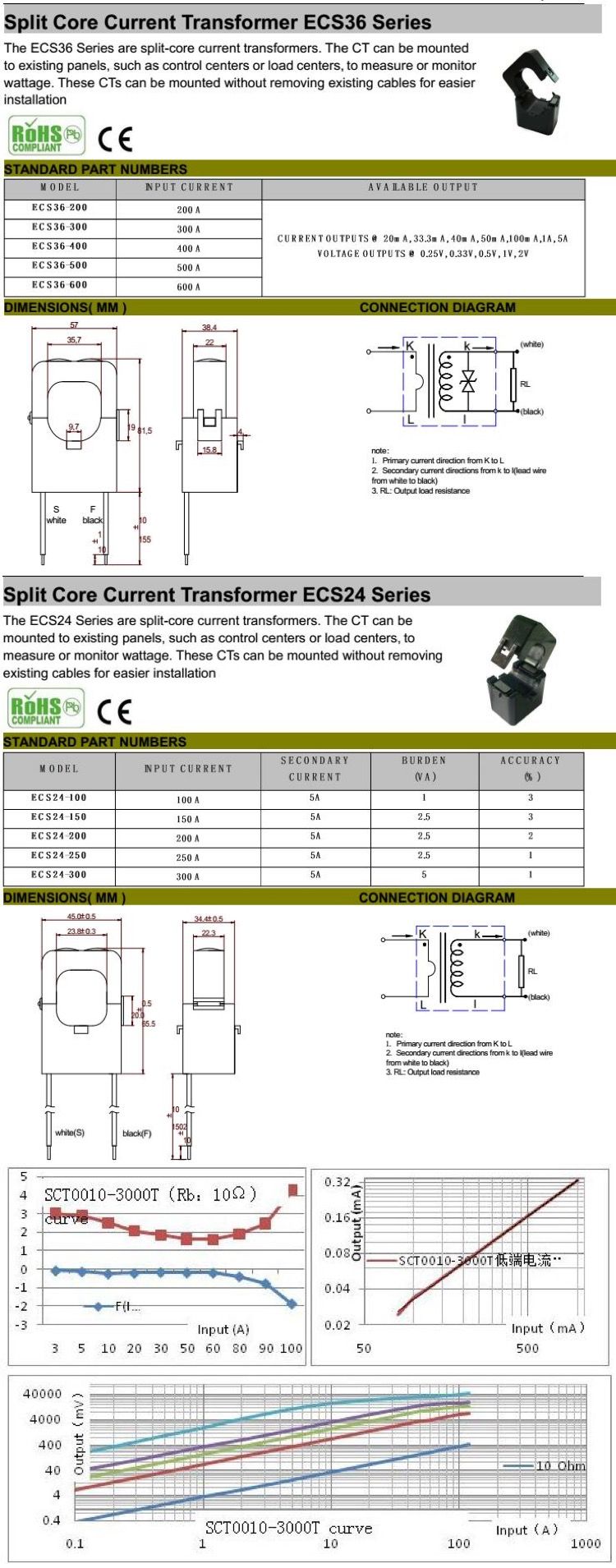

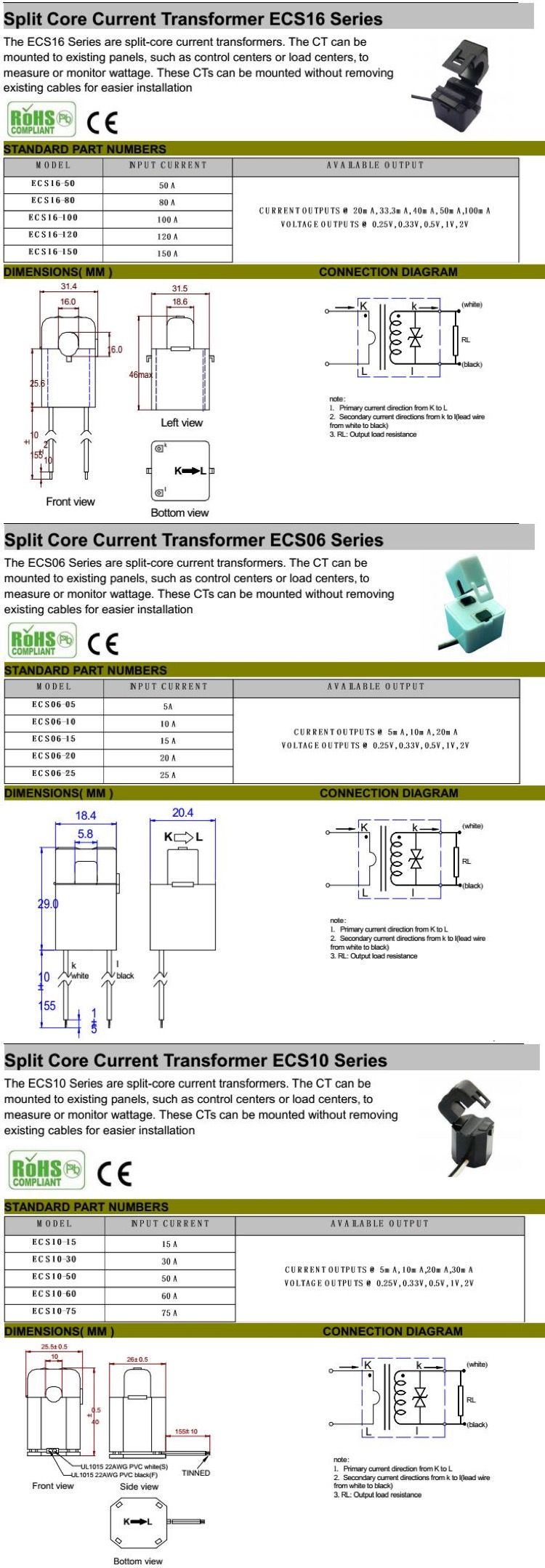

The split-core current transformers can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These current transformer's can be mounted without removing existing cables for easier installation.

1), Rated Primary Current(AMP. ) 50/60Hz: 50nom(1~42A max)

2), Max. Current (continuous): 60A

3), Turn ratio: Np: Ns=1: 2000

4), Current Ratio: 50A/0.333V

5), D. C. Resistance Max at 20 º C: 460 Ω

6), Accuracy@RL≤ 10Ω : 1%

7), Linearity@RL≤ 10Ω : 0.5%

8), Phase error at rated current range: ≤ 4°

9), Operating Temperature Range: -25~65º C

10), Storage Temperature Range: -35~85º C

11), Dielectric Withstanding Voltage(Hi-pot): 2.5KV/1mA/1min

12), Impulse Withstand Voltage: 5KV Peak

13), Insulation Resistance: DC500V/100MΩ Min

CAUTION
Before installation, safety precautions must be followed by licensed professional Never energize primary unless short circuited terminals or burden connected to secondary.
