Outdoor Waterproof Split Core Current Transformer

Name: Outdoor Waterproof Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 709484122
Availability: InStock
Rating: 4.5 (149 reviews)

Price:	US $ 199/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMCK185-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mtbf:	>50000hrs
Types:	Outdoor CT
Diameter:	185mm
Color:	Orange or Black
Cable:	2.5m Output or 10m Output
Ratio:	500-6000/5A
Weight:	4.5kg
Class:	0.5
Fs:	<10
Standards:	IEC61869-2
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

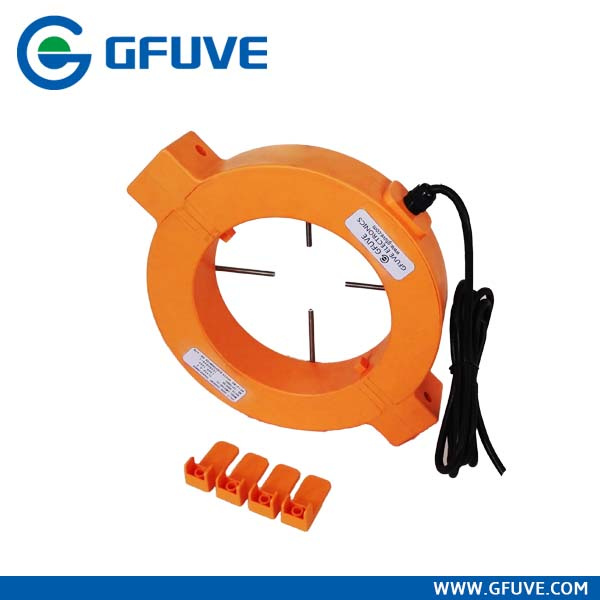

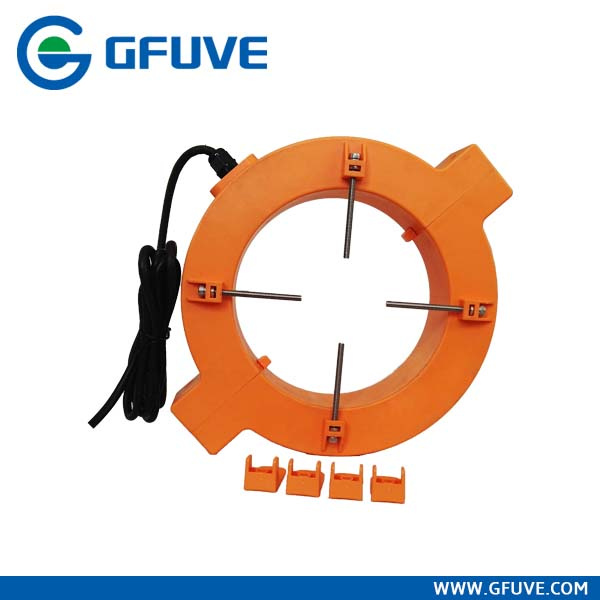

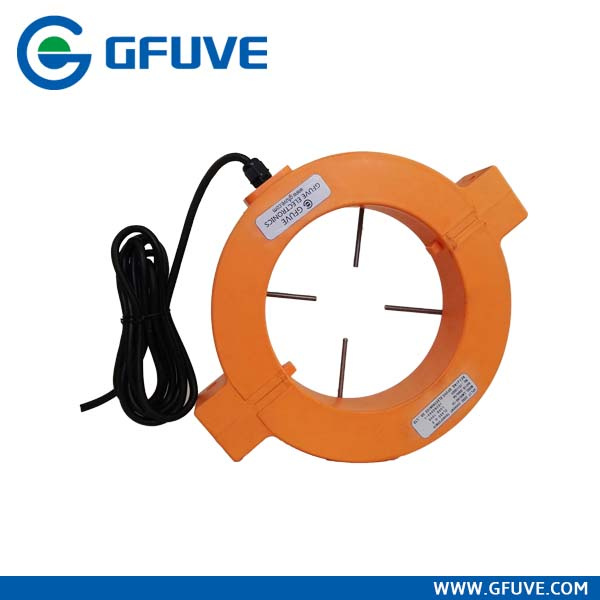

LMCK185-10Outdoor Waterproof Split Core Current Transformer

Product Description
LMCK185-10 Waterproof Outdoors Split Core Current Transformer
LZCK waterproof Outdoors Split Core Current Transformer applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV, and microcomputer protection. This type of current transformer employs imported silican steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.

PARAMETERS

Technical parameters
Standards	IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Accuracy Class	0.5%, 1%
Range of primary rated current	300-3000A
Range of Rated load	≤25VA
Rated frequency	50/60Hz
Rated secondary current	5A or 1A
Secondary winding power frequency withstand voltage	3kV, 1min
Safety Factor Rating	(FS) <5
Flame retardant ABS plastic shell inside, jaw waterproof apron.
Mechanical parameters
Aperture (mm)	Φ185
Dimensions (W×D×H) (mm)	350×283×55
Weight (kg)	4.5
Working conditions
Operating temperature	-35°C to +55°C,
Environment	outdoors or indoors
The height of above sea level	0- 3000m
Conditions	No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.
