Outdoor Waterproof Split Core Current Transformer

Name: Outdoor Waterproof Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 797855435
Availability: InStock
Rating: 4.9 (74 reviews)

Price:	US $ 28/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	400/1A
Color:	Wihite
Output:	1A
Application:	Electronic
Type:	Current Transformer
Phase:	Single
Insulating Medium:	Injection Molding

Product Description

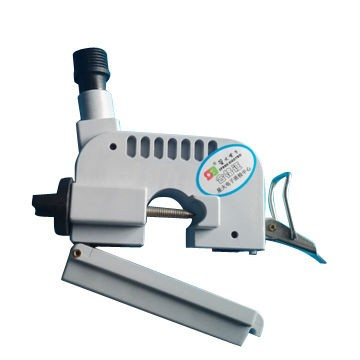

Split core (clip-on) outdoor current transformer

Split core outdoor current transformer is our new product, and only we can produce this kind of
outdoor split core current transformer in china now, and we provide best price and good quality as usual.

Application & Features

Utilities pole probe monitoring, measurement
Power distribution line monitoring
Building, factory energy management system
Measurement, moniting of low current in outdoor application
Current balancing monitoring
Smart grid application, energy efficiency
Inner Diameter:20mm
For cable line measuring below 600A
Primary Current: 0~600A
Accurately Class: 0.5%, 1%
Inner Diameter:20mm

Product specification

Model	FSCT-20
Standards	GB 20840 (IEC 61869), GB4208
Equipment maximum voltage	0.33/0.72KV
IP rating	IP 57
Rated current	10-600 Arms
Max current	1000 Arms
Turns	100-3000T
Accuracy class	0.5, 1.0
Rated output	mA/mV/1A/5A
Wire lead	3*0.75mm2 sheathed wire
Insulation strength	3KVVAC/min
Insulation impedance	DC500V/100MΩ
Rated frequency	50-400HZ
Working temperature	-25ºC~50ºC
Storage temperature	-30ºC~90ºC

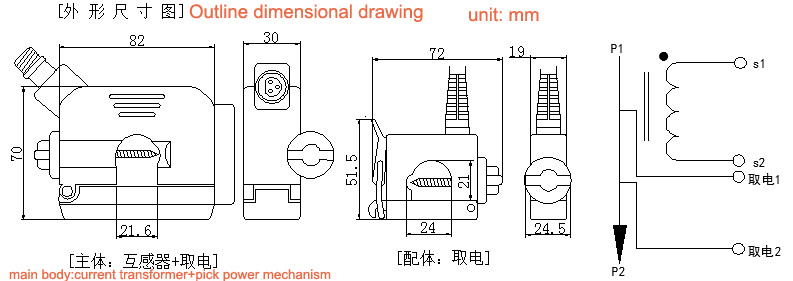

Drawing

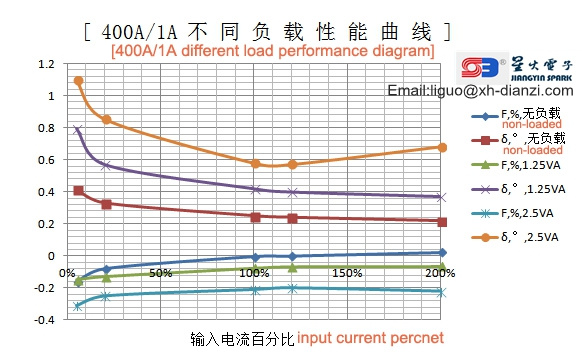

Testing picture

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.
