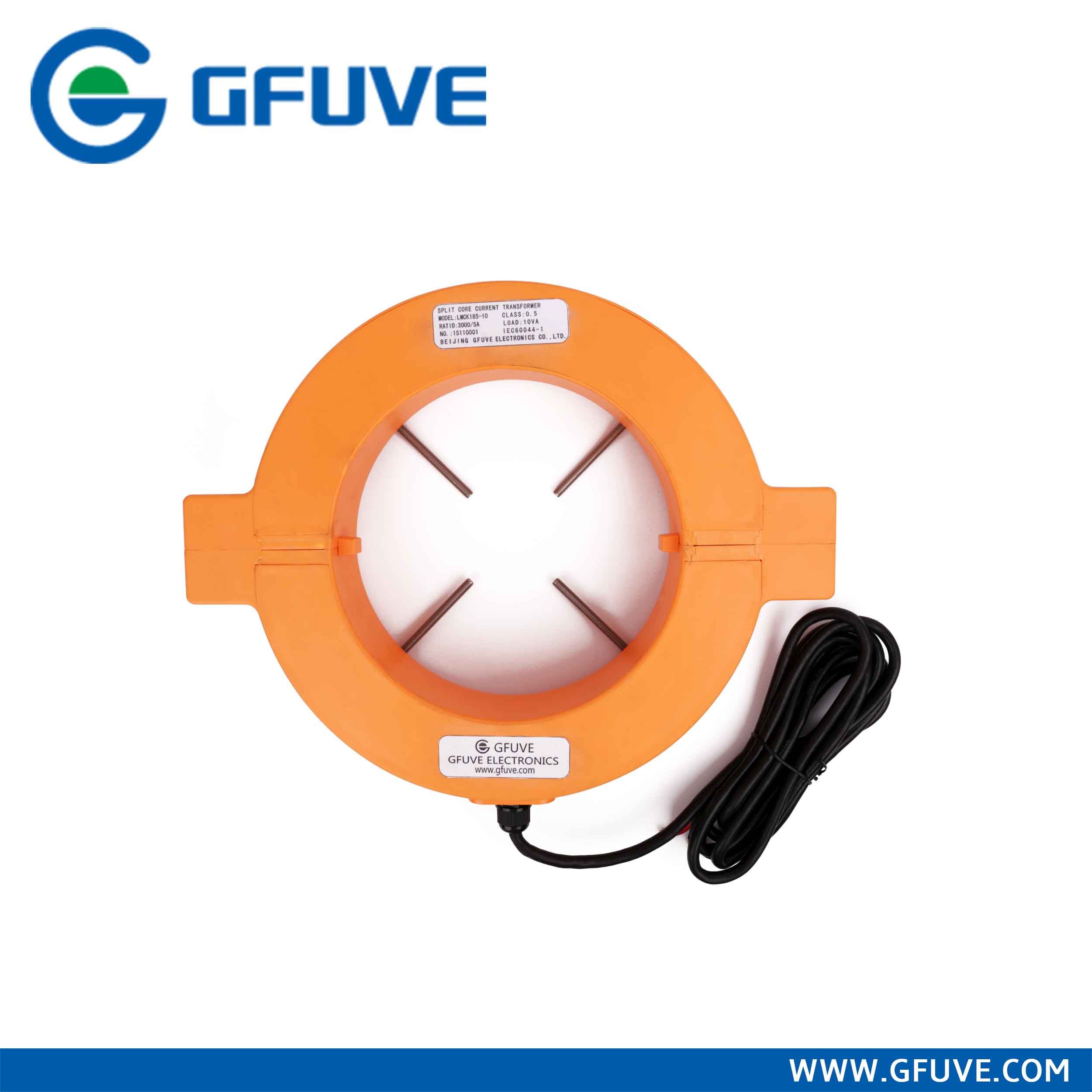

Outdoors Split Core Harga Current Transformer CT

Prod Model:	LMCK185-10
Standards:	IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006; an
Accuracy Class:	0.5s, 0.5%, 1%, 3%
Range Of Primary Rated Current:	100-1500A
Range Of Rated Load:	≤10va
Rated Frequency:	50/60Hz
Rated Secondary Current:	5A or 1A
Safety Factor Rating:	(Fs) <10
Output Signal:	1A, 5A, 333mv, 1V or 5V(Customized)
Cable Length:	2.5m, 5m, 10m(Customized)
Aperture (mm):	Φ55
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

LMCK185-10  Outdoors Split Core harga current transformer ct

LMCK series current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.

No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

Selection guide

Model	Primary rated current	Rated load	Aperture (mm)	Description (mm)	Weight (kg)	Materia	Water-proof
LZCK-55	100-1500A	≤10VA	φ55	180×138×52	2	PC	IP65
LMCK185-10	300-3000A	≤25VA	φ185	350×283×55	4.5	PC	IP65
LZCK310-10	300-600A	≤10VA	φ50	φ50 x φ110 x 32	1	Resin	silicon case (option)
LZCK322-10	30-600A	≤10VA	φ50	φ50 x φ110 x 52	1.6	Resin	silicon case (option)
LZCK350-10	20-600A	≤25VA	φ50	φ50 x φ110 x 105	3.1	Resin	silicon case (option)
LZCG530-10	30-600A	≤20VA	φ45	φ45 x φ120 x 65	5	Resin	silicon case (option)
