Outer Diameter 2.2mm*2 White Strip Duplex Fiber Cable

Name: Outer Diameter 2.2mm*2 White Strip Duplex Fiber Cable
Brand: all-electronics-online.com
SKU: 829548475
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	US $ 110-260/Roll
Min Order:	10/Roll
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DCW2-1000
Length:	500m/Spool&1000m/Spool
CTN Size:	360mm360mm185mm&360mm360mm260mm
Weight:	7kg&11kg
Application:	Fiber Optic Cable
Conductor Material:	Plastic
Cover Material:	PE
Certification:	Reach
Type:	Plastic Optical Fiber Cable
Conductor Type:	Step Index
Wire Core Material:	PMMA
Model:	Dcw2-1000
Brand:	Hypof

Product Description

Detailed Product Description

1. Product name: Plastic optical cable

2. Fiber core material: PMMA

3. Fiber cladding material: Fluorinated polymer

4. Core refractive index: 1.492

5. Numerical aperture: 0.5

6. Number of fiber: 2

7. Outer jacket material(color): PE(red, yellow, green,black)

8. Minimum bend radius: 25mm

Feature

1. Low cost for maintenance, saving cooper resource, energy-saving and environment protection.

2. Immune to electromagnetic wave radiation, no noise effect, good capacity of resisting disturbance.

3. Low weight, flexible, high resist flutter and determinate cleavage, durability.

4. High bandwidth, high speed, good performance.

5. High privacy protection, reliable safety.

6. Optimum bandwidth, high speed, good performance.

7. Close coupling, high illumination, stabile attenuation.

8. Easy installation, needlessness for special tools and fusion welding, and cut at will by your request.

9. Waterproof, Dampproof, Antimagnetic, free of magnetic and thunders

Application

1. FTTH (fiber to home)

2. Consumer electronics

3. Automobile intelligence

4. Industry control and monitor system

5. Military communication

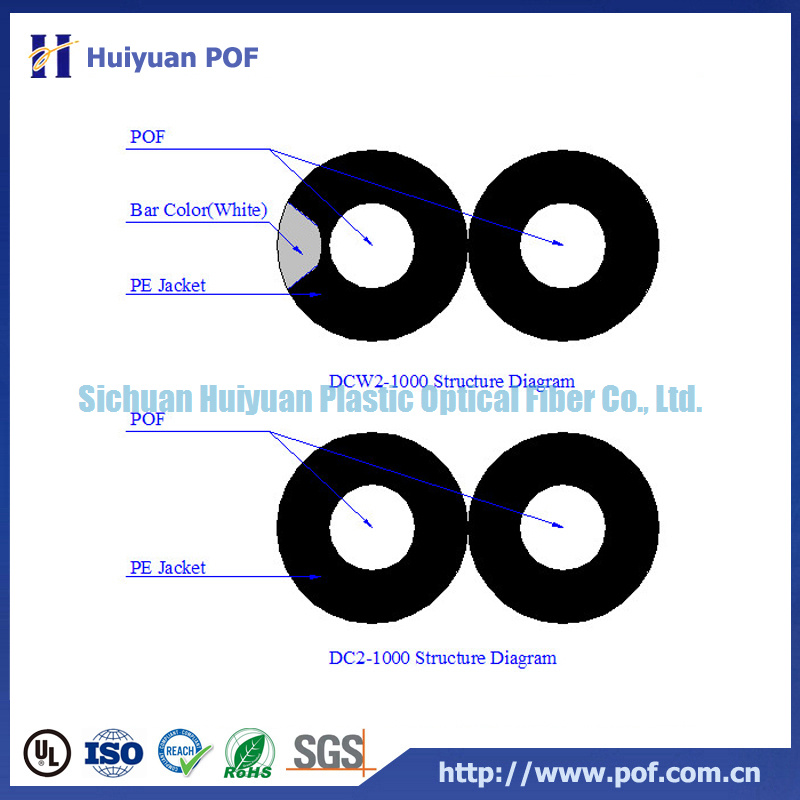

Product structure

Item		Specification	Unit
Plastic Optical Fiber	Core Material	Polymethyl Methacrylate	-
	Cladding Material	Fluroresin	-
	Core Refractive Index	1.49	-
	Cladding Refractive Index	1.41	-
	Refractive Index Type	Step Index	-
	Numerical Aperture	0.50±0.05	-
	Core Diameter	980±60	μm
	Cladding Diameter	1000±60	μm
Jacket	Material	Polyethylene	-
	Strip color	white	-
	Diameter	2.2±0.07/4.4±0.2	mm
Unit Weight		7.4	g/m
Certification		ISO9001,RoHS,REACH	-

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
