Outer Diameter 54mm, up to 220 Circuits, Ce, FCC, RoHS Multi-Circuit Slip Ring

Name: Outer Diameter 54mm, up to 220 Circuits, Ce, FCC, RoHS Multi-Circuit Slip Ring
Brand: all-electronics-online.com
SKU: 664531055
Availability: InStock
Rating: 4.6 (98 reviews)

Price:	US $ 200/Piece
Min Order:	2/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BTC054-124
Contact Material:	Gold to Gold
Protection Grade:	IP54
Electronics Noise:	<0.007ohm
Working Speed:	350rpm
Wire Length:	300mm
Guaranteed:	1 Year

Product Description

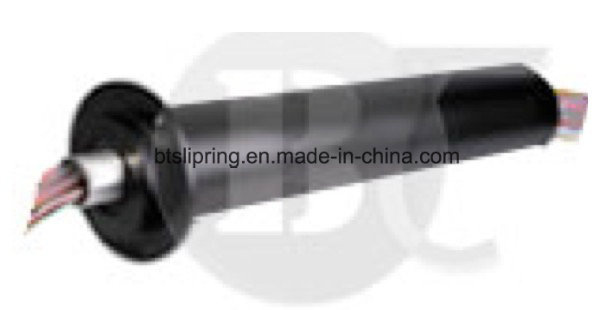

Outer Diameter 54mm, up to 220 Circuits, Ce, FCC, RoHS Multi-Circuit Slip Ring
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

Parameters:
Mechanical :

Working speed	350rpm
Operating temperature	-40ºC~ +100ºC
Contact material	Gold to Gold
Bearing	Steel ball bearing
IP Grade	IP 54

Electrical:

Circuit	77-124
Current	2A or combined rings to be higher current
Voltage	≤240V
Dielectric strength	≥500V@50Hz between each circuit
Insulation resistance	500MΩ@ 500VDC
Electric noise	≤7mΩ
Lead wire size	28AWG, UL ,color Teflon, silver or tin plated
Lead wire length	300mm

Features of Multi-circuits Capsule slip ring:

Low noise
Wear-resisting (gold contacting)

Good impact resistance

Signal and current compatible

Workable in hostile environment(-40ºC~ +100ºC)

Compact design

Alternatives of Multi-circuits Capsule slip ring:

Circuits

Loading of each circuit

Wire length

Working speed

Working temperature

Housing material (metal or plastic)

Dimension

Typical Applications of Multi-circuits Capsule slip ring:

CCTV Camera

Robotic

Medical equipment

Exhibition equipment

Total station

Test equipment

Revolve door

Advantages of slip ring manufacturer---ByTune:

Affordable price

Quality guaranteed

Military standard

Response within 24 hours

Prompt delivery

Reliable package & shipment

Flexible & quick customization

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
