Output 0.1V 0.25V 0.353V Three Phase Current Transformer

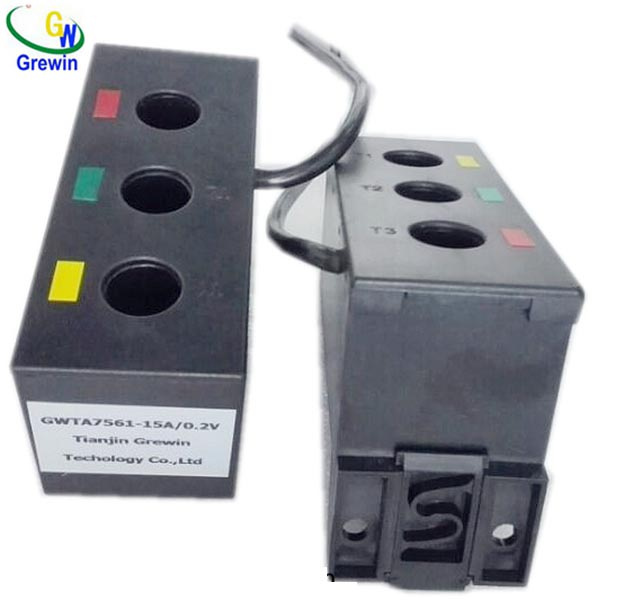

Name: Output 0.1V 0.25V 0.353V Three Phase Current Transformer
Brand: all-electronics-online.com
SKU: 703456642
Availability: InStock
Rating: 4.4 (108 reviews)

Price:	US $ 12.50-17.40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ouput 0.1v 0.25v 0.353v input 5a three phase
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Load Resistance:	100k Ohms
Operating Voltage:	600VAC, Bil 10kv Full Wave
Accuracy Class:	Voltage Transformers Class 0.1 0.2
Mounting Style:	Chassis Mounting Pattern
Application 1:	Electrical Energy Manage, Building Control System
Application 2:	Current Measurement, Monitoring and Protection
Electromagnetic,:	Need No Power Supply
Exterior Material:	Bt Resin UL Flame Retardant Rating 94-V0
CT Name:	Three Phase Instrument Current Transformer
Output Voltage:	0.1V 0.25V 0.353V
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Application:	AC Motor, Illumination Device, Air Compressor
Usage:	HVAC Current Monitor of AC Motor
Frequency Characteristics:	50 to 400 Hz
Shape Of Coil:	Epoxy Encapsulated
Brand:	Grewin Current Transformer

Product Description

Product Name:
output 0.1v 0.25v 0.353v three phase current transformer for Motor Protection Relay:
The GREWIN TA series of three phase instrument current transformer 2A/0.1-0.3V is applicated in current monitor of AC motor, illumination device, air compressor and HVAC etc. Electrical energy manage, building control system.Current measurement, monitoring and protection for circuitry and equipment.

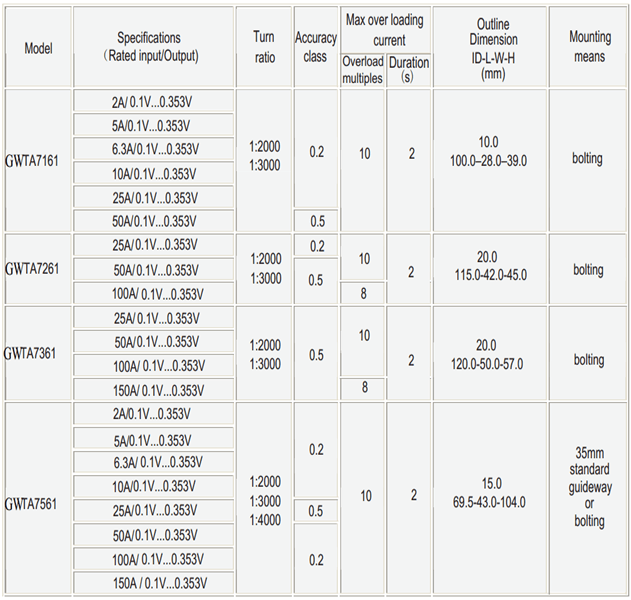

Three Phase Instrument Current Transformer(specifications)
Exterior Material	PBT Resin UL flame retardant rating 94-V0
Interior Insulation	Epoxy Encapsulated
Isolation Voltage	2500 Vrms for 1 minute
Dielectric Resistance	1000 M Ohms @ 500 Vdc
Surge Withstand	5000V(1.2/50μs standard shock wave)optional
Rated Load Resistance	100K Ohms
Operating Temperature	-25 to +55ºC,-40 to +85ºCoptional
Operating Voltage	600Vac ,BIL 10KV Full Wave
Frequency	50 to 400 Hz
Accuracy Class	defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2
Certification	RoHS Compliant CE Approved

Three Phase Instrument Current Transformer(features)

Low cost

More than 10 standard size

Chassis mounting pattern

Electromagnetic,need no power supply

Three Phase Instrument Current Transformer(applications)

Applications for current monitor of AC motor, illumination device, air compressor

and HVAC etc.

Electrical energy manage, building control system. Current measurement,

monitoring and protection for circuitry and equipment.
