Output 2.5kv Low Voltage Transformer 0A 5A Current Transformer

Prod Model:	MR(SR)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output:	0-5A
Rated Input:	5-3000A
Frequency:	50-400Hz
Construction:	Screw
Internal Structure:	Epoxy
Bobbin:	PBT
Core:	Silicon Steel
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single
Operation Condition:	Both

Product Description

MR(SR) Series Low Voltage Current Transformers

1. Application

MR(SR) series current transformer is compact .smaller than other models with the current ratio of the transformer is small,clamshell-style terminal cover is well protected by the second terminal.With related accessories you can use Din rail mounting,a current from 5A to 2500A

Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system.Current , power and energy monitoring device.
Relay protection device.

2. Feature

Safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installations

3. Technique Index


Frequency	50-400hz
Rated Input	5a-5000a
Measuring range	5%in-130%in
Rated Output	0-5A
Ratio	≤±0.2%
Phase angle	≤±10min
Dielectric strength	2.5kv/1mA/1min
Insulation Resistance	DC500V/100MΩ/min



Case	PC/UL94-V0
Bobbin	PBT
Core	Silicon steel
Internal structure	Epoxy
Construction	Screw
Operating Temp	-25ºC~+75ºC
Operating Humidity	≤85%
Output Connection	Terminal

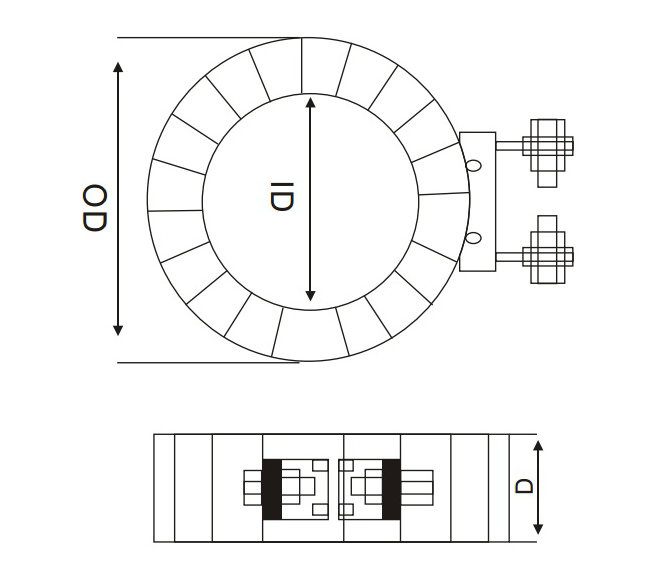

4. Diagram




5. Type Selection


Mfg P/N	Ratio	Dimension(mm)		Class(0.2)/Burden(VA)			Class(0.5)/Burden(VA)			Class(1.0)/Burden(VA)
		ID	OD	2.5	5.0	10	5.0	10	15	10	15	30
MR-30	60/5	30	70	50	---	---	50	---	---	50	--	---
MR-30	100/5	30	70	40	50	---	40	50	---	40	50	---
MR-30	120/5	30	70	40	50	---	40	50	---	40	50	---
MR-30	150/5	30	70	40	40	---	40	40	---	40	40	---
MR-30	200/5	30	70	40	40	---	40	40	---	40	40	---
MR-30	250/5	30	70	35	40	50	35	40	50	35	40	50
