Output (4-20mA) Ultrasonic Sensor for Water Level Detecting 1m 2m 3m ~8m
| Price: |
US $ 130/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
QUW-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Non Contact |
| Power Supply: |
12/24VDC |
| Beam Angle: |
15°,12°,9° |
| Detection Accuracy: |
0.25 ~ 0.5% Fs |
| Blind Area: |
≤ 100 ~ 800mm (According to Different Range) |

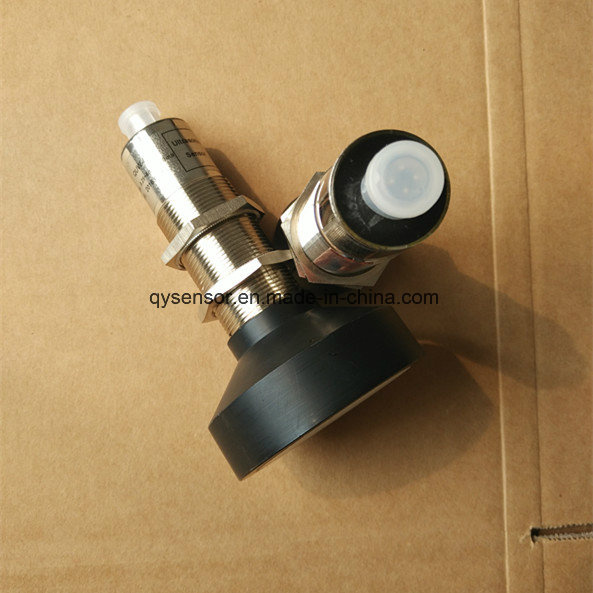

Product Description
Output (4-20mA) Ultrasonic Sensor for Water Level Detecting
Features:
1. Non contact,low price
2. Easy to installation
3. Small in size, light in weight
4. 12/24VDC Power supply
5. Long working life and high reliability.

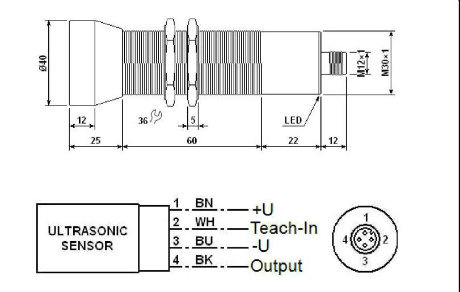

Dimensions and Connections:
Technical Specifications: | Part number | NU75F30TR1MD |
| Sensing range sd | 230 ~ 4000 mm |
| Resolution | 1 mm |
| Adjustment | Yes |
| Sonic frequency | 75 KHz |
| Response time | 30 ms |
| Voltage supply range +Vs | 10~30 VDC |
| Current consumption max. | 35 mA |
| Output signal | 4~20ma |
| Adjustment | Yes |
| LED | yellow | solid yellow: object in the evaluation range |
| | | yellow flashing: program function, object detected |
| LED | red | solid red: Error |
| | | red flashing: program function, object not detected |
| Type | | Cylindrical |
| Housing material | nickel-plated /ABS |
| Width / diameter | 30 mm |
| Height / length | 90 mm |
| Connection types | Connector M12 |
| Operating temperature | -25~ +70 °C |
| Storage temperature | -40~+80°C |
| Protection class | IP 67 |
Programmed Analogue Output Function:

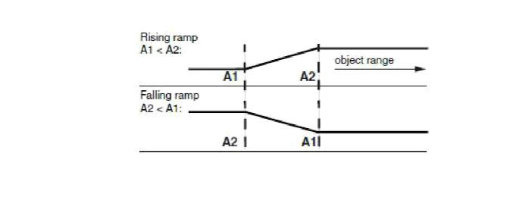

A1: unusable areaA2: nominal sensing rangeMode of operation: rising ramp - Adjusting The Evaluation Limits
The ultrasonic sensor features an analogue output with two teachable evaluation limits. These are set by applying the supply voltage -U or +U to the TEACH-IN input. The supply voltage must be applied to the TEACH-IN input for at least 1s. LEDs indicate whether the sensor has recognized the target during the TEACH-IN procedure. The lower evaluation limit A1 is taught with -U, A2 with +U. TEACH-IN rising ramp (A2 > A1) - Position object at lower evaluation limit
- TEACH-IN lower limit A1 with - U
- Position object at upper evaluation limit
- TEACH-IN upper limit A2 with + U
TEACH-IN falling ramp (A1 > A2): - Position object at lower evaluation limit - TEACH-IN lower limit A2 with + U - Position object at upper evaluation limit - TEACH-IN upper limit A1 with - U6. LED Displays | Displays in dependence on operating mode | Red LED | Yellow LED |
| | | |
| Teach-In evaluation limit | | |
| Object detected | Off | Flash |
| No object detected | Flash | Off |
| Object uncertain (Teach-In invalid) | On | Off |
| Normal mode (evaluation range) | Off | On |
| Fault | On | Previous state |
Notes
1: Precision instrument, please don't scratched the surface.
2: Do not use in strong acid and strong alkaline conditions.
3: Shall not be opened.
4: Cannot be used in the vacuum area or explosion-proof areas.
