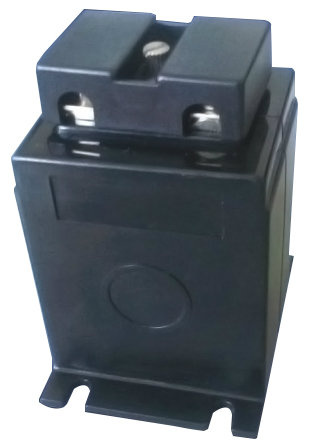

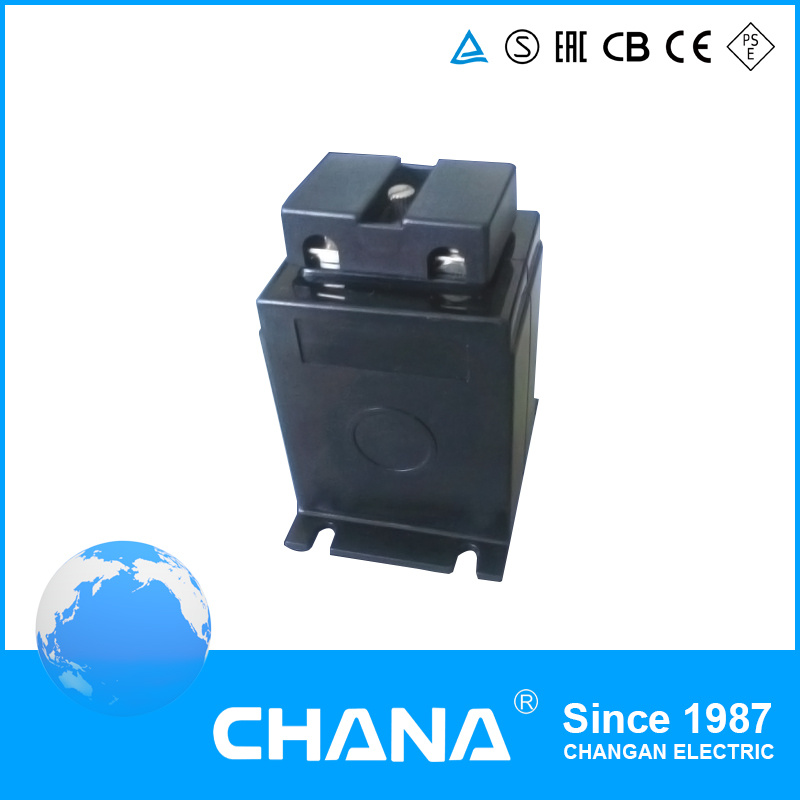

Name: Output 5A Power Transformer 1A Low Voltage Current Transformers
Brand: all-electronics-online.com
SKU: 828781235
Availability: InStock
Rating: 5 (142 reviews)

Price:	US $ 5.10-5.40/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCT-2091H
Measuring Range:	5%in-130%in
Rated Input:	5A-120A
Rated Output:	5A/1A
Frequency:	50-400Hz
Construction:	Tie
Case Material:	ABS
Bobbin:	PBT
Internal Structure:	Epoxy
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Certification:	Ce,RoHS
Brand:	Chana

Product Description

SCT-2091H Series Low Voltage Current Transformers

1. Application

Current measurement, monitoring and protection for electrical wiring and equipment. Current and power measurement for electric mo tors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation control system.Current ,power and energymonitoring device.

2. Feature

The structure of the self-locking, safe, easy to install, portable Wide inner window, allowing clamping of big cables or - bus bars Wide range of sizes to accommodate all the existing installations. SCTK660A series retro-fit (split-core) currenttransformer hasbeen specially designed to facilitate their installation in new or already existing net works. They may beinstalled without openingany cableor bus-barcircuit. Aninternal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.

3. Technique Index

Frequency	50-2.5khz
Rated Input	0.5a-120a
Measuring range	5%in-130%in
Rated Output	5A/1A
Ratio	≤±0.2%
Phase angle	≤±10min
Dielectric strength	2.5kv/1mA/1min
Insulation Resistance	DC500V/100MΩ/min

Case	ABS
Bobbin	ABS
Core	Silicon steel
Internal sturcture	Epoxy
Construction	Tie
Operating Temp	-25ºC~+75ºC
Operating Humidity	≤85%
Output Connection	Terminal

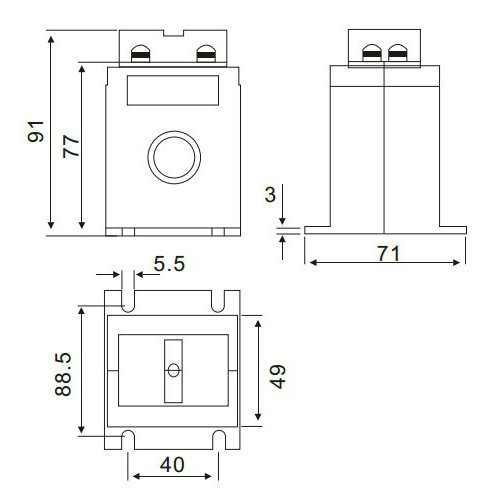

4. Diagram

5. Type Selection(Output:1A/5A)

Ratio	Burden(V/A)/Class
Ratio	0.2	0.5	1.0
5/5	1.5	2.5	3.75
10/5	1.5	2.5	3.75
15/5	1.5	2.5	5
20/5	1.5	2.5	5
25/5	2.5	2.5	5
30/5	2.5	3.75	5
40/5	2.5	3.75	5
50/5	2.5	3.75	5
80/5	2.5	3.75	5
100/5	2.5	3.75	5

6. Certificate

7. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.

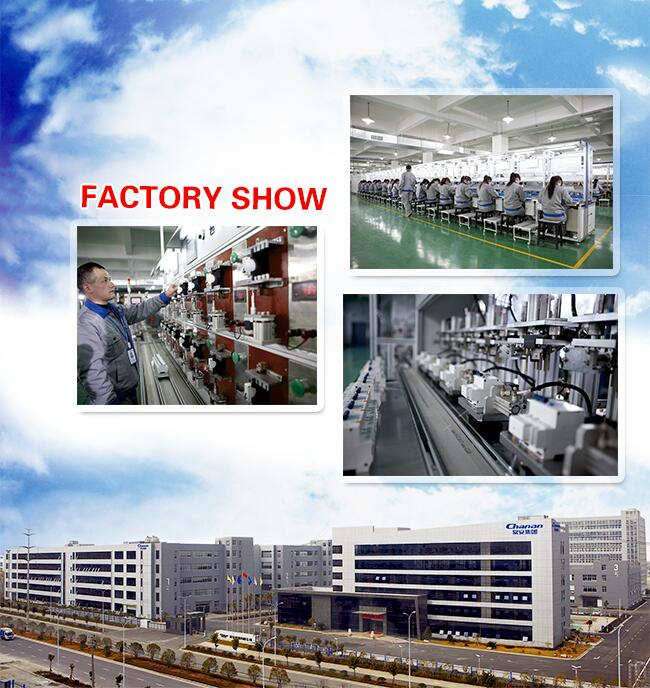

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
