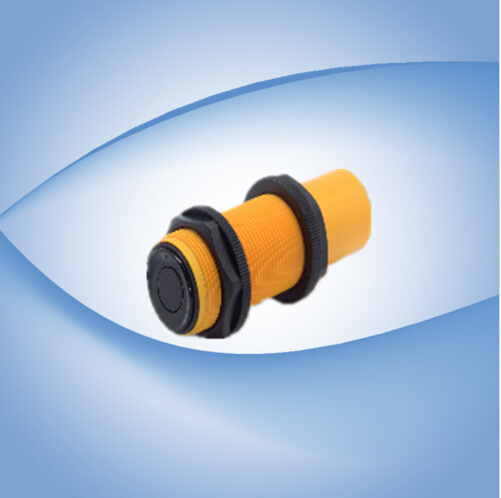

Output (0-5V / 10V) Ultrasonic Level Transmitter

Name: Output (0-5V / 10V) Ultrasonic Level Transmitter
Brand: all-electronics-online.com
SKU: 680987141
Availability: InStock
Rating: 4.5 (96 reviews)

Price:	US $ 105/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QU-04
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Non Contact
Power Supply:	12/24VDC
Beam Angle:	15°,12°,9°
Detection Accuracy:	0.25 ~ 0.5% Fs
Blind Area:	≤ 100 ~ 800mm (According to Different Range)

Product Description

Features:

1. Non contact,low price
2. Easy to installation
3. Small in size, light in weight
4. 12/24VDC Power supply
5. Long working life and high reliability.

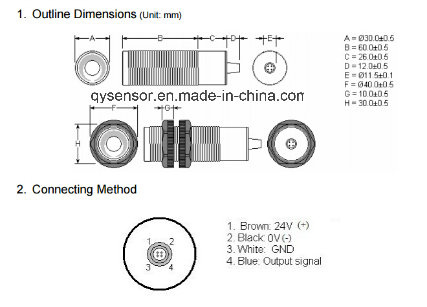

Dimensions:

Technical Specifications:

Storage humidity:≤70%RH
Protection class IP65 (default); IP67, IP68 (customized)

Detect Range:	4M
Blind Area	≤ 100 ~ 800mm (according to different range)
Detection accuracy	0.25FS ~ 0.5% FS
Output Voltage	4 ~ 20mA/ 0 ~ 20mA ,1 ~ 5V/ 0~5V,RS485
Beam angle	30°(according to different range)
Power Supply	DC24V/300mA ,DC12V/300mA
Operating temperature	-10 ~ 50ºC
Operating Humidity	≤80%RH

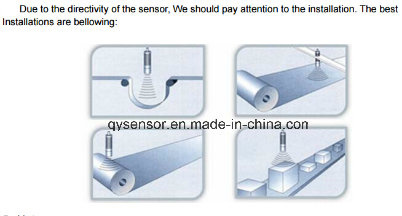

Installations:

Notes
1: Precision instrument, please don't scratched the surface.
2: Do not use in strong acid and strong alkaline conditions.
3: Shall not be opened.
4: Cannot be used in the vacuum area or explosion-proof areas.
The interpretation is owned by us. If you have any questions, please feel free to contact us
