Over/Under Voltage of Phase Circuit Breaker with Best Quality PCB Assembling PCBA

Name: Over/Under Voltage of Phase Circuit Breaker with Best Quality PCB Assembling PCBA
Brand: all-electronics-online.com
SKU: 798737545
Availability: InStock
Rating: 4.5 (41 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	OV-04
PCB Layer:	2-4 Layers
Baser Material:	2-4 Layers
Board Thickness:	1mm
Copper Thickness:	0.35mm
Certificate:	RoHS
Type:	Combining Rigid Circuit Board
Dielectric:	FR-4
Material:	Aluminum Covered Copper Foil Layer
Flame Retardant Properties:	V0
Brand:	Sum

Product Description

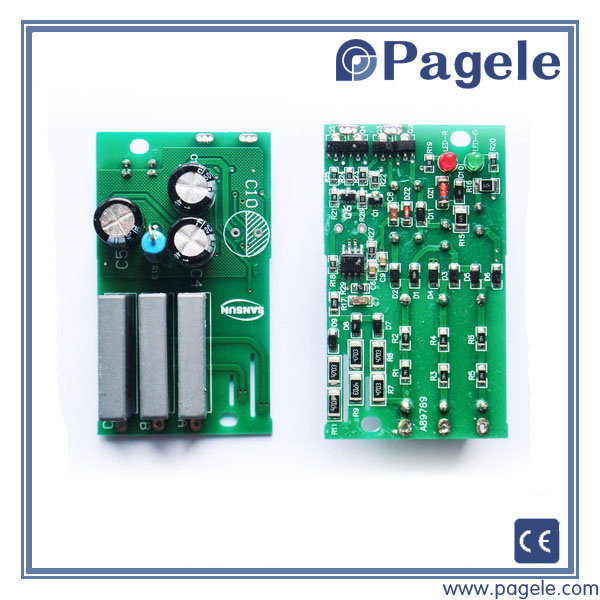

Over/Under voltage of phase circuit breaker with best quality PCB assembling PCBA

A basic overview : product used in single-phase , three-phase overvoltage protection , undervoltage protection, phase protection, phase voltage unbalance protection, zero protection in one line break . Using highly integrated microprocessor , the apparatus has a simple, compact , easy to use anti-interference ability , stable performance, easy operation, high reliability , and can be customized according to customer requirements .

Technical Parameters

Operating Voltage	AC220V	Marks
working frequency	50Hz
Product Specifications	20A, 32A, 40A, 50A, 60A ( resistive ) 20A,32A,40A,50A,60A(resistive)
Load powe	4.4KVA,6.6KVA,8.8KVA,11KVA,13.2KVA
Over-voltage action cut-off value	AC270±5V
Overvoltage recovery value	AC255±5V
Voltage action cut-off value	AC170±5V
Voltage recovery value	AC185±5V
Electric power evacuation delay	30±10 S 30±10S
Operating delay	≤1 S ≤1S
Own powe	≤2W
Electrical Mechanical life	≥10 million times ≥100000 times

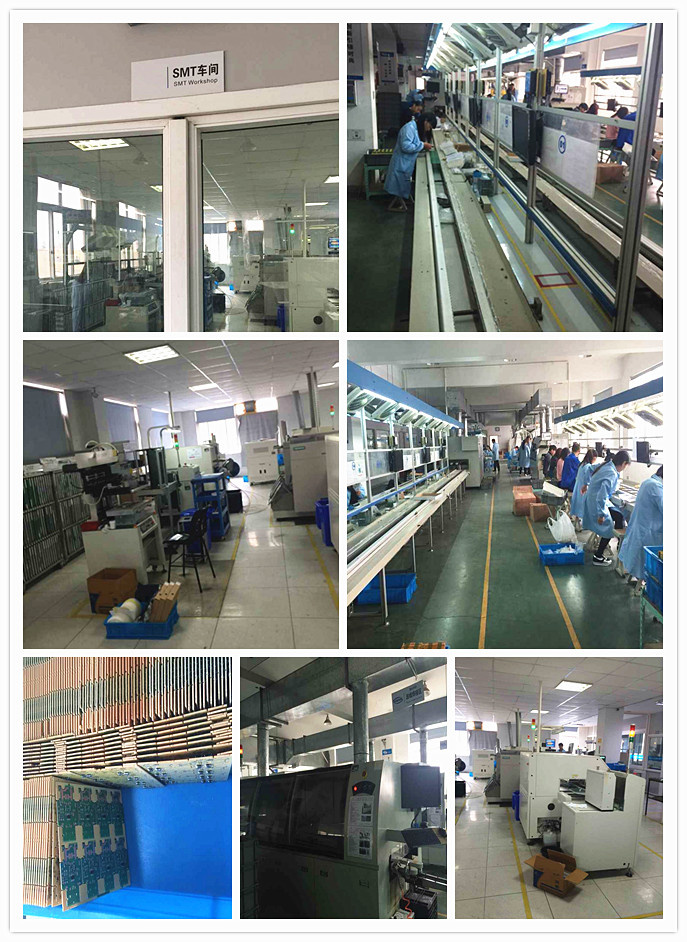

Welcome to PAGE. We located in wenzhou city, where manufacture all of electrical goods for the distribution system.
