Overhead Aerial Bundle ABC Cable 0.6/1kv Cable
| Price: |
US $ 0.5-3/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Range Of Application: |
Overhead Cable |
| Brand: |
Jinshui |
Product Description
Applications of abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

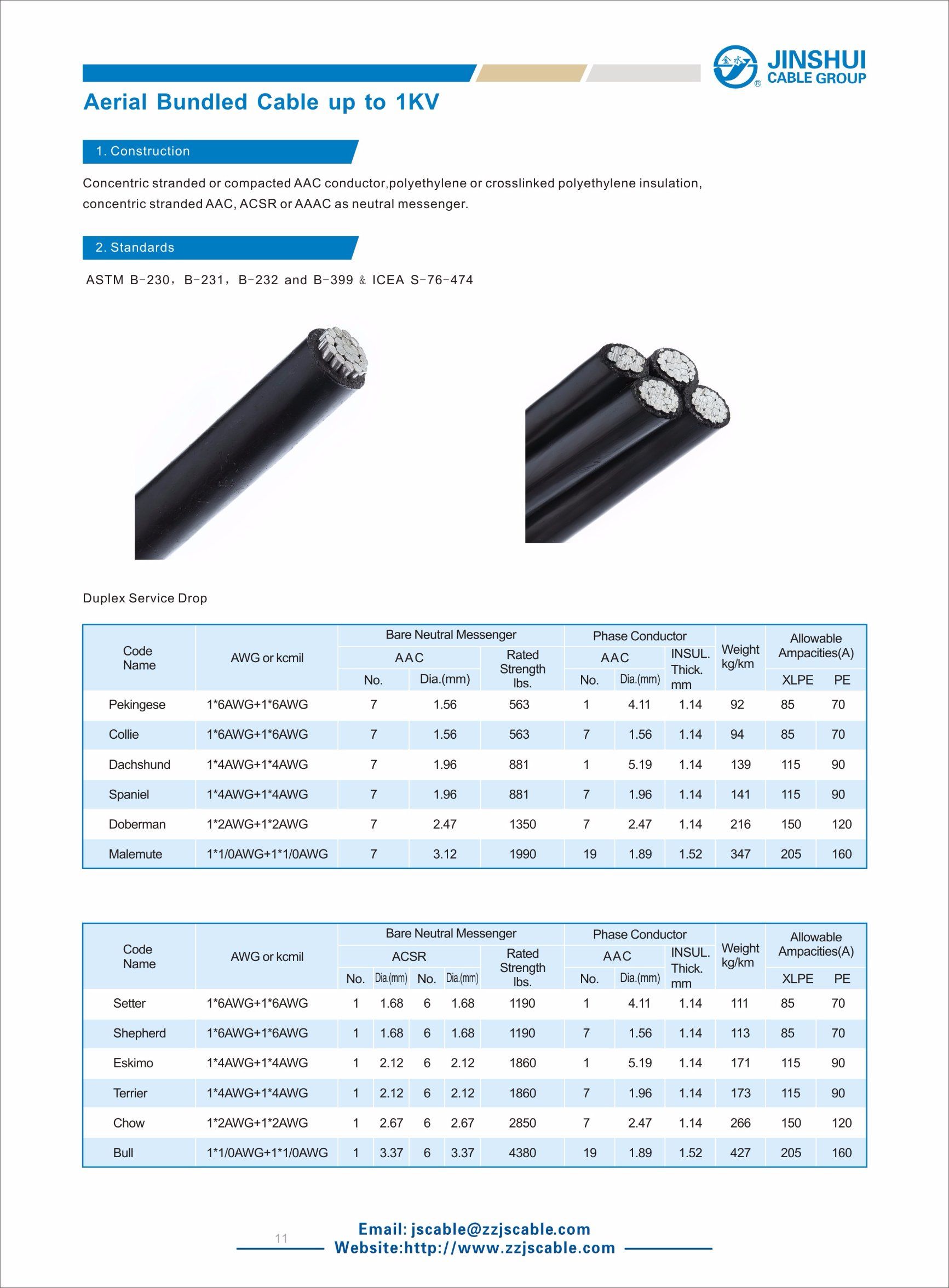

| code | Rated Voltage | | Type | ABC |
AWG or kcmil | Structure |
| Neutral Wire (ACSR) | Phase Wire | | Cable | Cable |
| Steel | Aluminium | Conductor | Aluminium | Dia | | Dia | Dia | kg/km |
| No. | Dia | No. | Dia | Dia | No. | Dia | mm |
| Morochuca | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 1 | 4.11 | 4.11 | 1.14 | 6.40 | 14.62 | 221 |
| Chola | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 7 | 1.55 | 4.66 | 1.14 | 6.95 | 15.62 | 227 |
| Morgan | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 1 | 5.19 | 5.19 | 1.14 | 7.48 | 17.37 | 331 |
| Hackney | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 7 | 1.96 | 5.88 | 1.14 | 8.17 | 18.62 | 338 |
| Palomino | 3*2AWG+1*2AWG | 1 | 2.67 | 6 | 2.67 | 8.02 | 7 | 2.47 | 7.42 | 1.14 | 9.71 | 22.41 | 511 |
| Costena | 3*1/0AWG+1*1/0AWG | 1 | 3.37 | 6 | 3.37 | 10.11 | 19 | 1.89 | 9.47 | 1.52 | 12.52 | 28.77 | 824 |
| Grullo | 3*2/0AWG+1*2/0AWG | 1 | 3.78 | 6 | 3.78 | 11.35 | 19 | 2.13 | 10.63 | 1.52 | 13.68 | 31.61 | 1015 |
| Suffolk | 3*3/0AWG+1*3/0AWG | 1 | 4.25 | 6 | 4.25 | 12.74 | 19 | 2.39 | 11.94 | 1.52 | 14.99 | 34.82 | 1254 |
| Appaloosa | 3*4/0AWG+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 2.68 | 13.40 | 1.52 | 16.45 | 38.42 | 1554 |
| Broneo | 3*336.4+1*336.4 | 1 | 3.47 | 18 | 3.47 | 17.36 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 48.43 | 2321 |
| Gelding | 3*336.4+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 46.59 | 2221 |
HENAN JINSHUI WIRE&CABLE Co., Ltd., subordinated to the Jinshui Cable Group Co., Ltd., is an international trading company professional in the research and development, manufacturing and sales of wires and cables.
Jinshui Cable Group, founded in 1983 and formerly known as Zhengzhou 2ND Cable Plant, is the largest cables and wire and electrical products R&D and production base, sales and export base, and CNC logistics distribution base in central China, as well as Top-10 of China in comprehensive cables and wire strength.

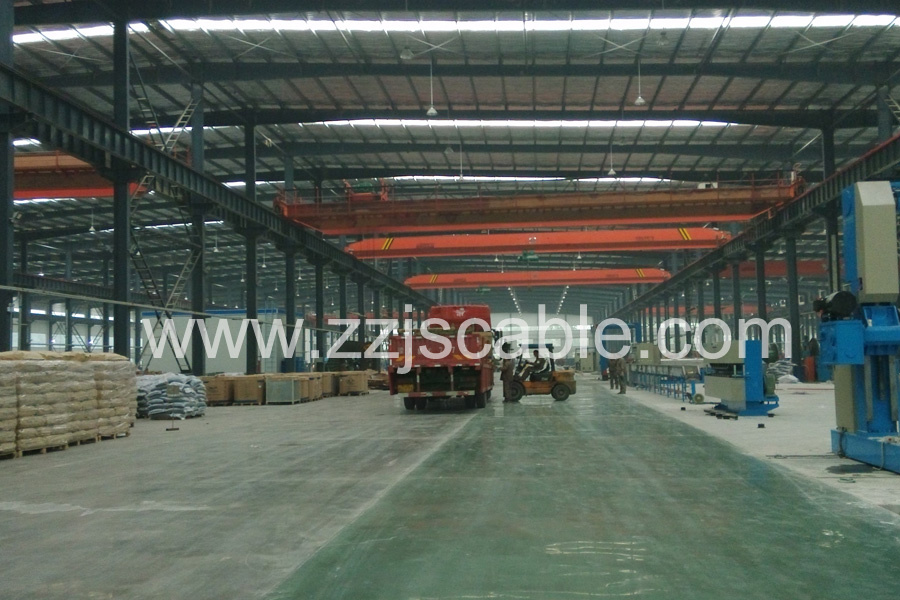

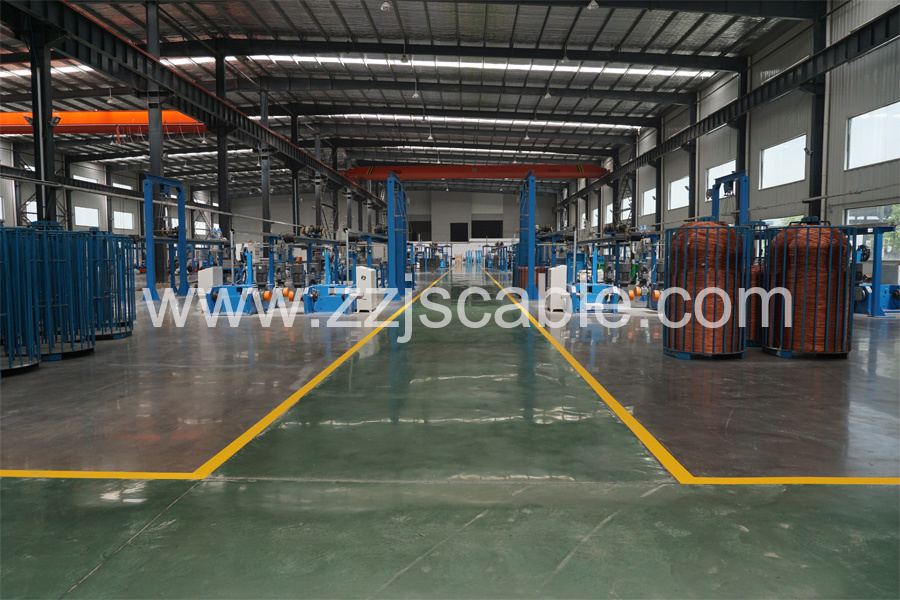

The company covers an area of 360000 square meters and the fixed assets of RMB 680 million; Having main production equipment of more than 300 sets (units), measuring and testing equipment of more than 50 sets (units), and reaching the annual production capacity of RMB 5 billion. The company has the most advanced production equipment and a high-quality production management team. Its "Jinshui" brand wire, cable and electrical products are widely used all over the world in real estate, transportation, energy, and power transmission and other fields, and well received by customers.
The company has a full range of products, including various high, medium and low voltage cable wire products from 300V to 220kV and all kinds of electrical products, where the annual production capacity of cables and wire can reach up to 800, 000 km. The company has more than 500 varieties of products in more than 5, 000 kinds of specifications, including high conductive green cable, XLPE insulated cables and wire, PVC insulated cables and wire, rubber insulated cables and wire, aluminum alloy cable, special cable, flame retardant & fireproof cable, mineral insulated cable, PVC cable material, bare wire, oxygen-free copper rod, electrician round aluminum rod and aluminum alloy rod, as well as electrician and electrical supporting products. Those products implement IEC, DIN, BS, GB, ASTM, JIS, and CSA and other standards.
The company took the lead in the same industry to pass the ISO9001 international quality system certification, ISO14001 environmental management system certification and ISO18001 occupational health and safety management system certification, and holds the People's Republic of China import and export qualification certificate and railway material supplier access certificate. The company is a recommended supplier for the national urban and rural power grid transformation, recommended supplier for government procurement, supplier for military material procurement. Those products have passed or obtained China Compulsory Certification (CCC certification), production licenses, mining products safety certification and fire-retardant products permit for flame retardant products and so likes. At present the company's products have been exported to more than 30 countries and regions including Singapore, Malaysia, Bangladesh, Pakistan, Nigeria, Sudan, Somalia, Britain, Australia, the United States and Italy.
Build a century-old enterprise of China, and strive for a world-class brand. The company will continue adhering to the service principle of "quality first, customer oriented" to carry forward the enterprise spirit of pioneering and keeping improving and innovating to provide better products and better services for users and the community!
